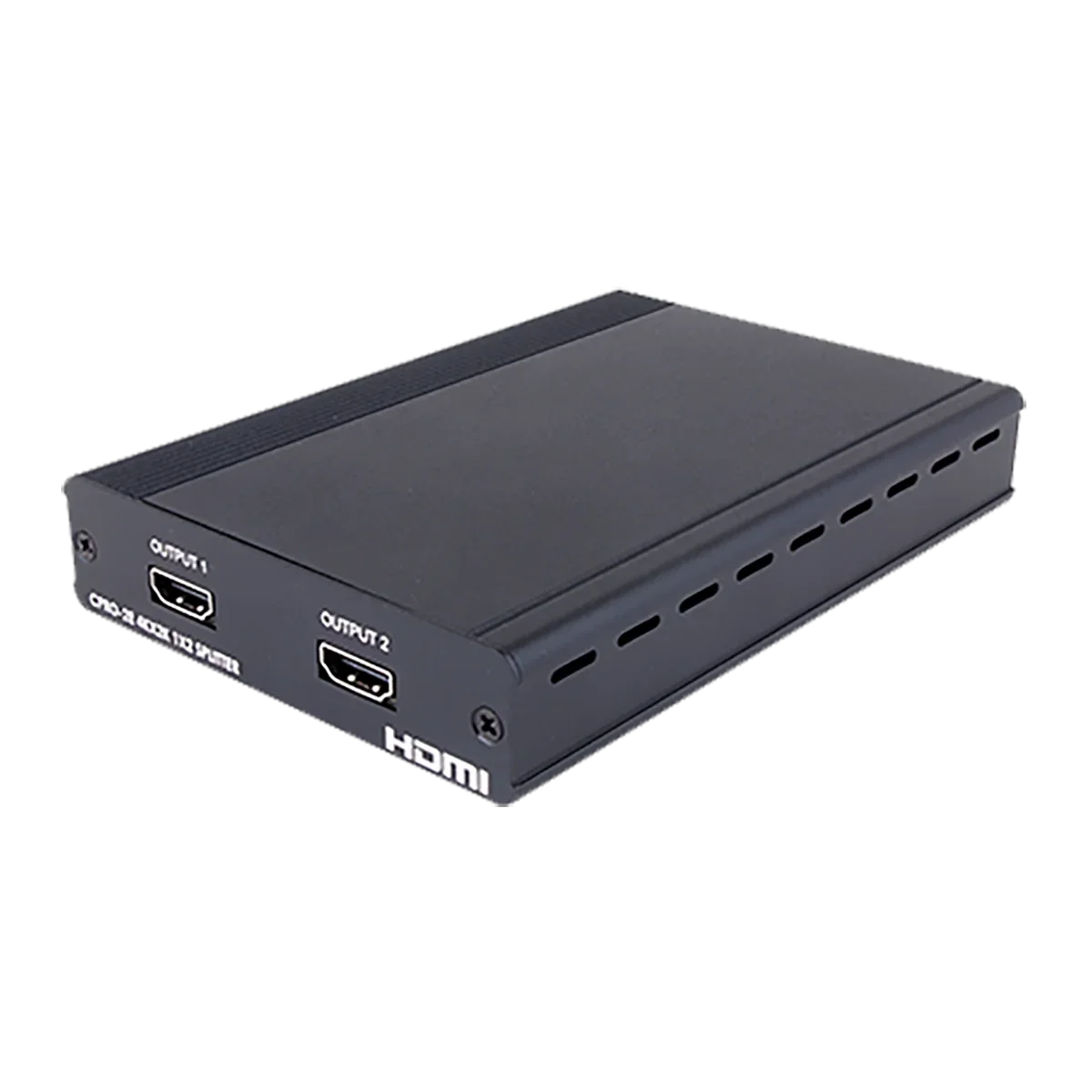

1 by 2 HDMI Splitter

Supports HDTV resolutions up to 4K×2K/30 Hz , Supports LPCM 7.1CH, Bitstream, HD Bitstream , Supports 3D

Hersteller-Nr.	CPRO-2E
Hersteller	Cypress Technology

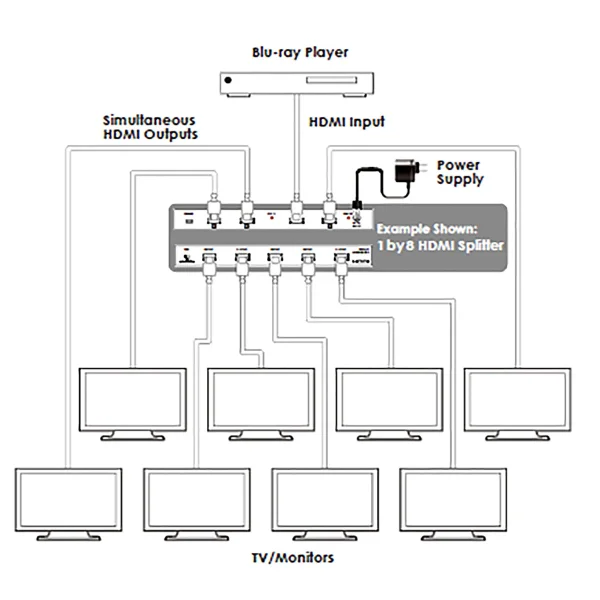

This range of high performance HDMI splitters provide one HDMI in to two, four or eight HDMI outputs and supports 4K×2K, 3D, 12-bit Deep Color as well as High Definition Lossless Audio.

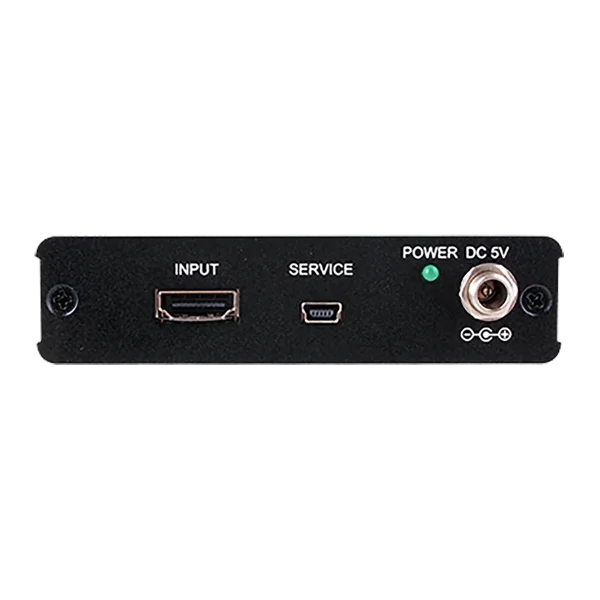

Interfaces
Input Port	1 HDMI (Type A)
Output Port	2 HDMI (Type-A)
Service Port	1 USB2.0 (Mini-B)

Video
HDMI Compliance	HDMI 1.4a (DVI 1.0)
HDCP Compliance	HDCP 1.4
Input Signal Types	4096x2160 30Hz YUV 4:4:4 8bit
Output Saignal Type	4096x2160 30Hz YUV 4:4:4 8bit

Resolutions
Maximum Input	HDMI	4096×2160p@30
Maximum Output	HDMI	4096×2160p@30

Audio
	HDMI Input	LPCM(8ch), Bitstream, HD Bitstream
	HDMI Output	LPCM(8ch), Bitstream, HD Bitstream

Power
Power Supply	5V / 2.6A DC
Power Consumption	2.85 W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	103 mm × 25 mm × 155 mm
Weight	298g

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CPRO-2E	1 by 2 HDMI Splitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
