Cypress Technology

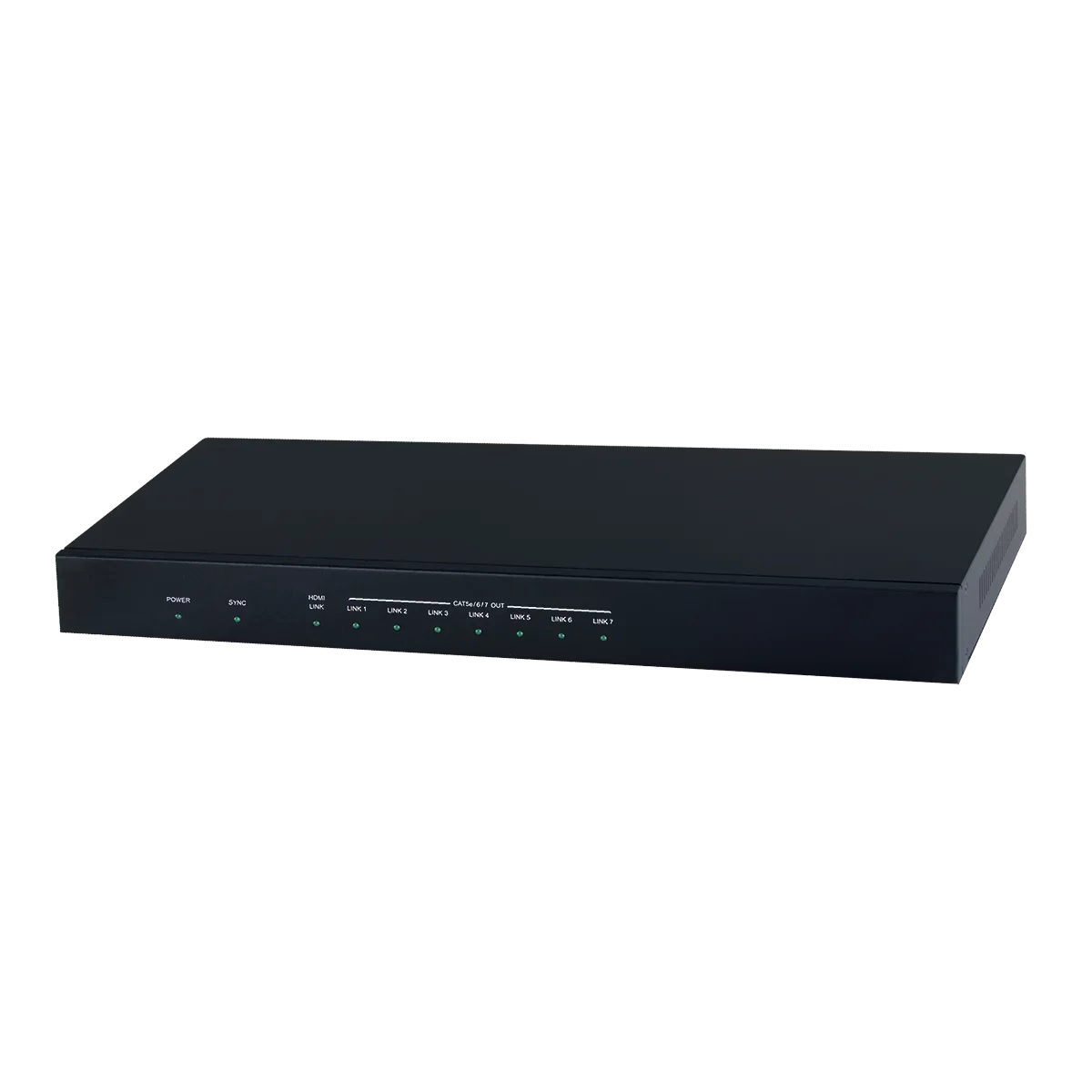

1 by 8 HDMI over HDMI & CAT5e/6/7 Splitter
Simultaneous HDMI and CAT5e/6/7 outputs , Supports data rate from 250Mbps up to 3Gbps , Supports up to 4096x2160@60Hz YUV 4:2:0 8bit , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate) , Supports selection of Standard or TV EDID settings , Supports Power over Cable (PoC) feature , Supports Bidirectional IR control , The 3D signal display follow by display TV’s EDID
| Hersteller-Nr. | CHDBT-1H7CPL |
| Hersteller | Cypress Technology |

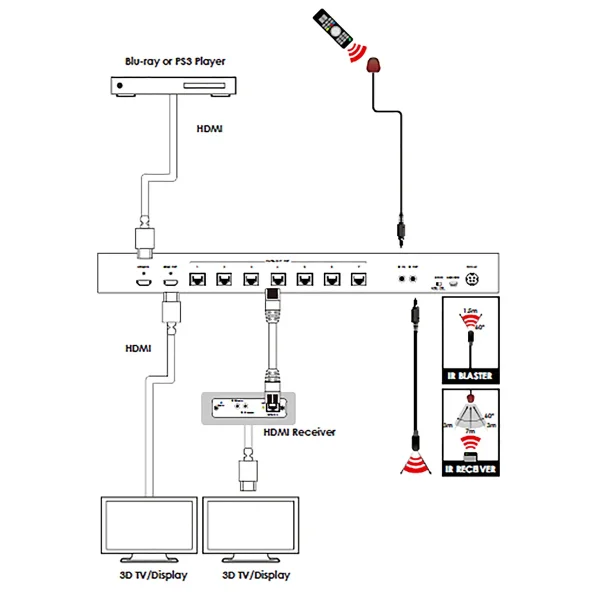

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single
HDMI input and 2-way IR control up to seven CAT5e/6/7 outputs and includes a
simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing,
3D and multi-channel digital audio formats (such as LPCM 7.1CH, Bitstream,
HD Bitstream). The HDMI bypass output can be connected to an HDMI display
or cascaded to another splitter. The CAT5e/6/7 outputs can be connected to
HDBaseT to HDMI Receivers to extend the operating distance up to 70 meters
with Power Over Cable feature.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Pass-through Port |
|
| Service Port |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input | HDMI |
|
| Maximum Output | HDMI |
|
| HDBaseT |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CHDBT-1H7CPL |
|
Keine Maßangaben verfügbar.
Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand
• ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
