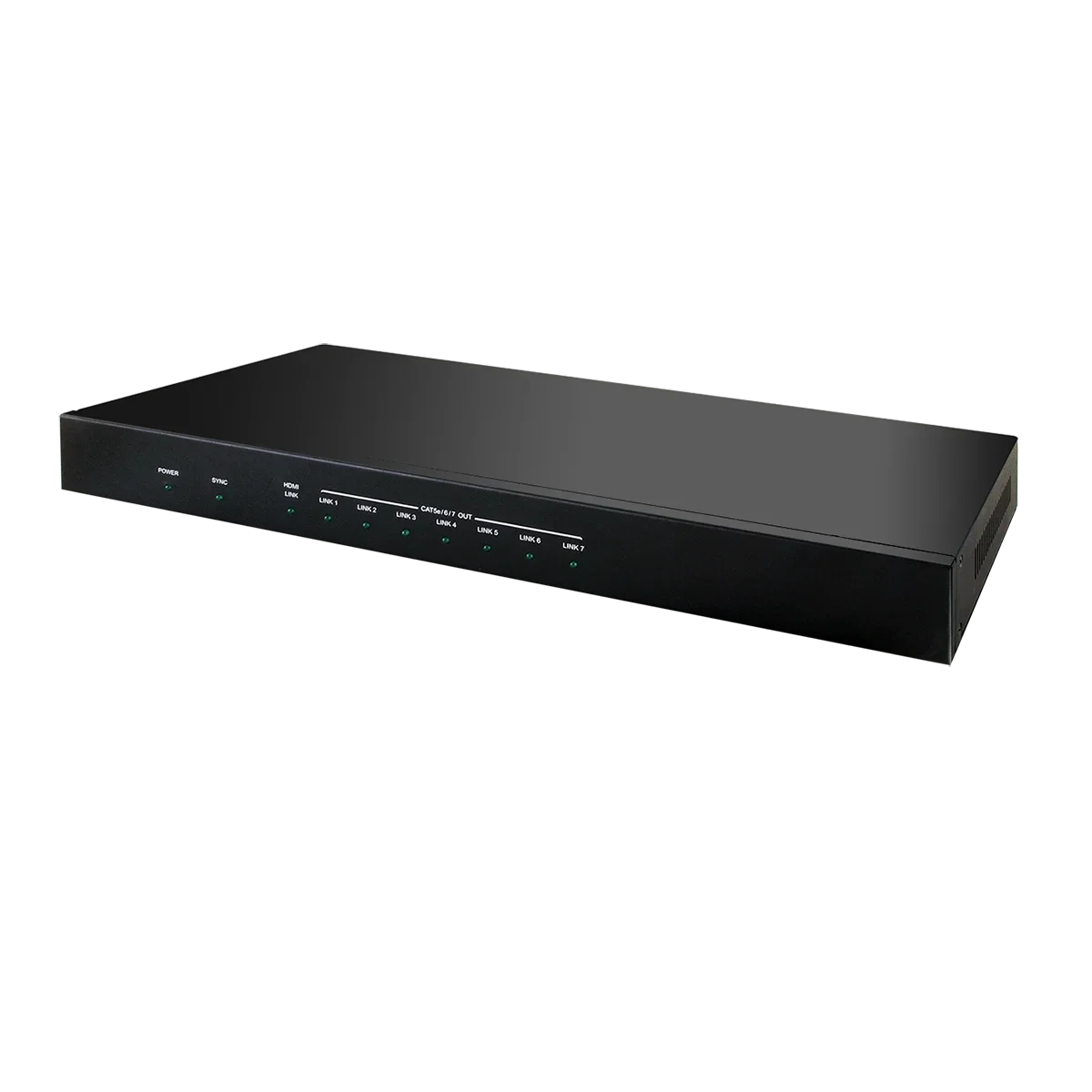

1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter
Klicken zum Vergrößern
Cypress Technology

1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

HDMI and HDBaseT outputting mirrored content , Supports data rate up to 10.2 Gbps , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate) , Supports distances up to 100 meters through CAT5e/6/7 cables , Supports Ethernet transmission rate up to 100Mbps , EDID selection between internal EDID or EDID form output monitor , Support 3D signal content with 3D equipped output monitor , Supports 24V POC with capable Receiver units

Hersteller-Nr.CHDBT-1H7CE
HerstellerCypress Technology

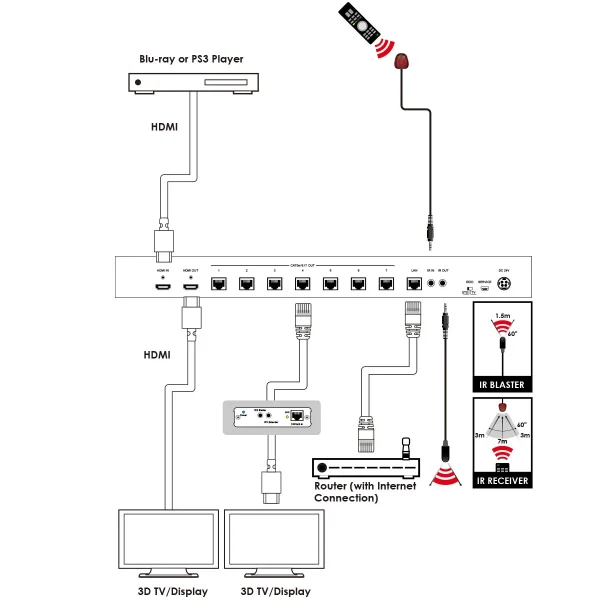

The HDMI over HDMI and CAT5e/6/7 Transmitter can support resolutions up to 4K@60 4:2:0 timing, 3D and 7.1 channel digital audio formats to one HDTV and seven HDBaseT outputs. The HDMI can be connected to HDMI display mirrored output as local monitoring and the HDBaseT can be connected to CAT5e/6/7 to HDMI Receivers for distance up to 100 meters. Further, a total of 100Mbps Ethernet transmission rate allows all connected device to share the Ethernet service and the POC function free the power shortage issue from the Receiver end.
Interfaces
Input Port
  • 1×HDMI (Type-A)
Output Port
  • 7×HDBaseT (RJ-45)
  • 1×HDMI
Pass-through Port
  • 1×IR Extender (3.5mm)
  • 1×IR Blaster (3.5mm)
  • 1xLAN (RJ-45)
Service Port
  • 1×USB (Mini B)
Video
HDMI Compliance
  • 2.0
HDCP Compliance
  • 2.X
Input Signal Types
  • 4096x2160@60Hz YUV 4:2:0 8bit
Output Signal Type
  • 4096x2160@60Hz YUV 4:2:0 8bit
Resolutions
Maximum Input HDMI
  • 4096x2160@60 4:2:0
Maximum Output HDMI
  • 4096x2160@60 4:2:0
  HDBT
  • 4096x2160@60 4:2:0
 Audio
HDMI
  • LPCM (8 Channels), Bitstream, HD Bitstream
HDBaseT
  • LPCM (8CH), Bitstream, HD Bitstream
Power
Power Supply
  • 24V/6.25A
Power Consumption
  • 85W
Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 432mm×49mm×179mm
Weight
  • 2140 g
Field Firmware Update
Interface
  • Mini-USB to PC
Ordering Information
Model No. Product Description
CHDBT-1H7CE
  • 1 by 8 HDMI over HDMI & CAT5e/6/7 with PoE and Ethernet Transmitter

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
