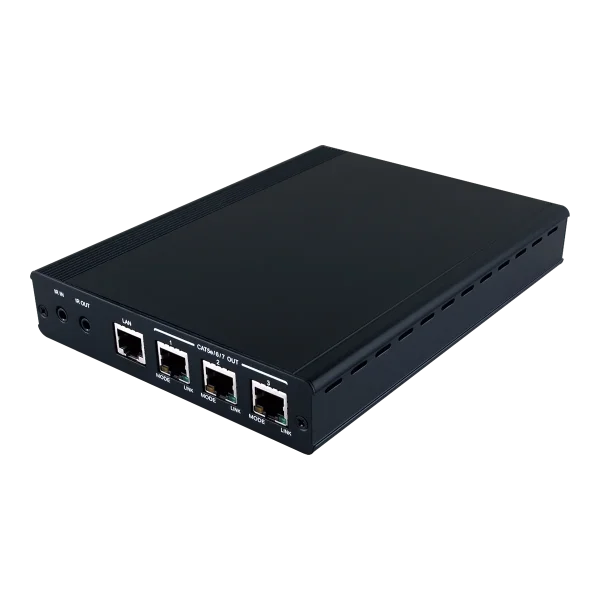

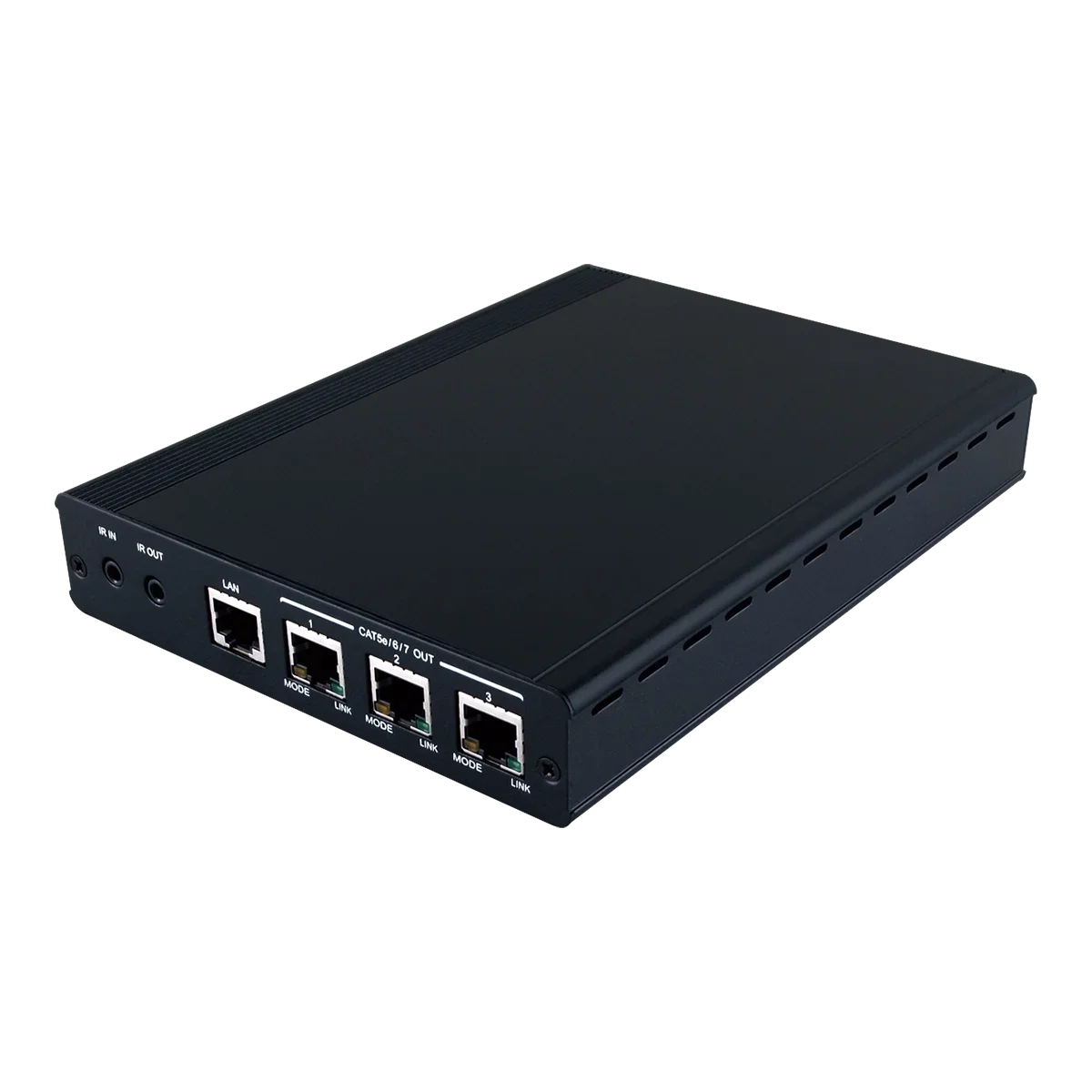

1×4 HDMI over HDMI and CAT5e/6/7 Splitter with PoE and LAN Serving

HDMI with 4K×2K resolution and 3D support , Simultaneous HDMI and CAT5e/6/7 outputs , Supports data rate from 300 Mbps up to 3 Gbps, Supports up to 4096x2160@60Hz YUV 4:2:0 8bit, Supports transmission of High Definition audio: LPCM 7.1CH, Bitstream, HD Bitstream (32 kHz~192 kHz sample rate) , Supports distances up to 100 meters over CAT5e/6/7 cables , Supports Ethernet network rates up to 100 Mbps , Supports selection of Standard or TV EDID settings, Supports PoC with compatible receiver units , Supports control of devices via 2-way IR , 3D signal display is dependent on the TV/Display’s EDID settings

Hersteller-Nr.	CHDBT-1H3CE
Hersteller	Cypress Technology

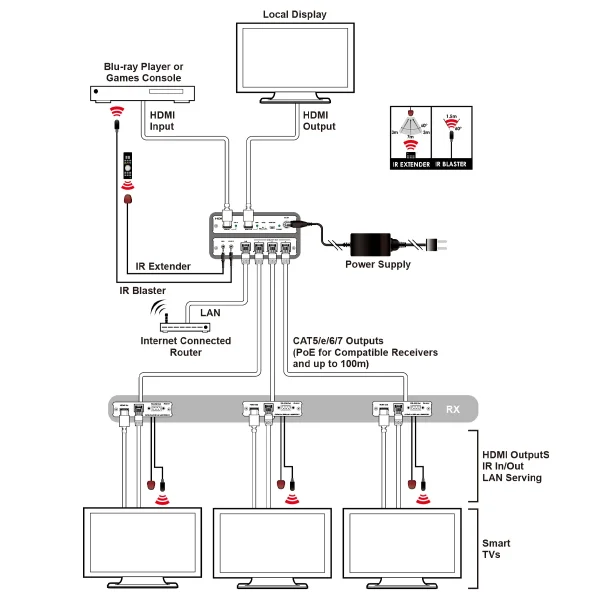

The HDMI over HDMI and CAT5e/6/7 Splitter can split and distribute a single HDMI input, 2-way IR control and LAN serving to up to three HDBaseT outputs and includes a simultaneous HDMI bypass output. It supports resolutions up to 4K×2K timing, 3D and multichannel digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The HDMI bypass output can be connected to an HDMI display or cascaded to another splitter. The three HDBaseT outputs can be connected to HDBaseT to HDMI receivers to extend the operating distance up to 100 meters.Additionally, the LAN connectivity will allow a 100BaseT network to be served to smart TVs or games consoles. The Power over Cable (PoC) function can power compatible receivers, providing greater flexibility in installations.

Interfaces
Input Port	1 HDMI (Type-A) 1 LAN
Output Port	1 HDMI (Type-A) 3 HDBaseT (RJ-45)
Pass-through Port	1 IR IN (3.5mm) 1 IR OUT (3.5mm)
Service Port	1 USB(Mini-B)

Video
HDMI Compliance	HDMI 2.0a (DVI 1.0)
HDCP Compliance	2.x
Input Signal Types	4096x2160@60Hz YUV 4:2:0 8bit
Output Saignal Type	4096x2160@60Hz YUV 4:2:0 8bit

Resolutions
Maximum Input	HDMI	4096×2160p@60 4:2:0
Maximum Output	HDMI	4096×2160p@60 4:2:0
	HDBaseT	4096×2160p@60 4:2:0

Audio
HDMI	LPCM(8CH), Bitstream, HD Bitstream
HDBase T	LPCM(8CH), Bitstream, HD Bitstream

Power
Power Supply	24V/2.7A DC
Power Consumption	36W

Enclosure
Chassis Material	Metal
Chassis Color	Black
Dimensions (W×H×D)	45 mm × 30 mm × 199 mm
Weight	590 g

Field Firmware Update
Interface	USB to PC

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
