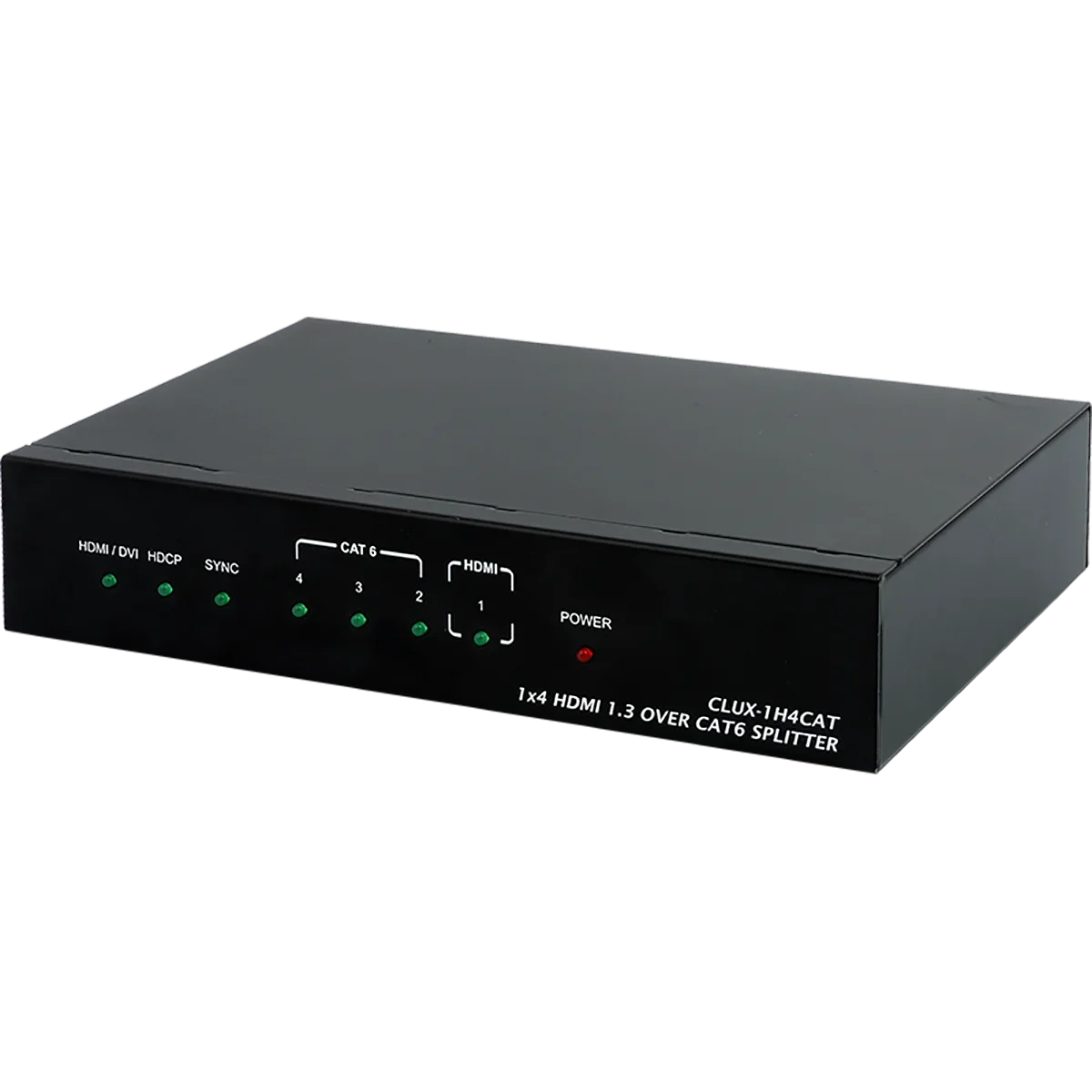

1×4 HDMI to Dual CAT6/7 Splitter
HDMI, HDCP1.1 and DVI1.0 compliant Deep Color video up to 12-bit, 1080p@60Hz Allows users to link up to four displays HDCP keysets allows each output to work independently when connecting to a HDMI display Supports DVI source and DVI display by using HDMI to/from DVI adaptor cable Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192 kHz Fs sample rate) Supports a wide range of PC and HDTV resolutions from VGA to SXGA (1280x1024) and 480i to 1080p Selects EDID from TV mode or STD mode (this splitter) Deep color setting of 8-bit or 12-bit IR remote control System Reset function CEC Bypass
| Hersteller-Nr. | CLUX-1H4CAT |
| Hersteller | Cypress Technology |
|
Video Bandwidth |
2.25MHz/6.75Gbps |
|
|
Input Ports |
1 x HDMI female port (Type A connector) |
|
|
Output Ports |
3 x CAT6 output Video/3 x CAT6 output DDC |
|
|
1 x HDMI female port (Type A connector) |
||
|
EDID |
STD / TV |
|
|
HDMI Audio Output |
PCM2, 5.1, 7.1, Dolby 5.1, DTS 5.1, DD+, D-TrueHD, |
|
|
DTS-HD |
||
|
HDMI Cable In |
1080p 8-bit (15M), 12-bit (10M) |
|
|
HDMI Cable Out |
1080p 8-bit (15M), 12-bit (10M) |
|
|
CAT6 Cable Out |
1080p 8-bit (45M), 12-bit (15M) |
|
|
HDMI Resolution |
480i, ~ 1080p 50/60, 1080p 24, VGA ~ SXGA |
|
|
IR Frequency |
30 ~ 50KHz |
|
|
ESD Protection |
Human body model: |
± 8kV (air-gap discharge) |
|
± 4kV (contact discharge) |
||
|
Power Supply |
5VDC/3.2A (US/EU standards, CE/FCC/UL certified) |
|
|
Dimensions (mm) |
215(W) x133(D) x 43(H) |
|
|
Weight(g) |
900 |
|
|
Chassis Material |
Metal |
|
|
Silkscreen Color |
Black |
|
|
Power Consumption |
12W |
|
|
Operating Temperature |
0˚ ~ 40˚ / 32˚ ~ 104˚ |
|
|
Storage Temperature |
-20˚ ~ 60˚ / -4˚ ~ 140˚ |
|
|
Relative Humidity |
20~90% RH (non-condensing) |
|
