27" Panel PC with Dual System and Audiovisual Module Cards Expansion

27" screen with 4K resolution, Dual OS, Multi-Touch & Writing, Assistance with DICOM diagnosis, Module card expansion

Hersteller-Nr.	MED-PPS-2700
Hersteller	Cypress Technology

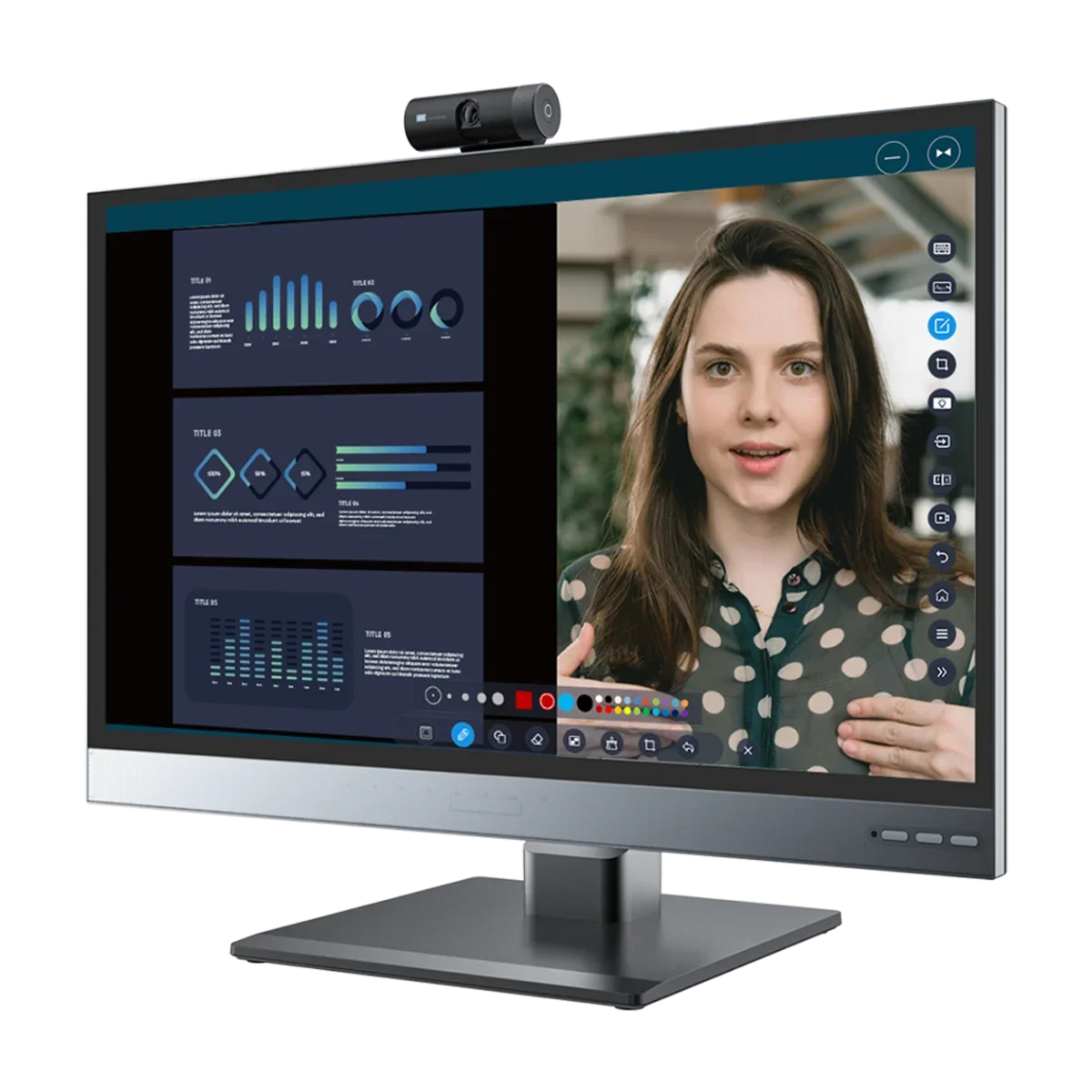

The MED-PPS-2700 is a high-performance multifunctional display designed for users who demand flexibility and seamless system integration. Featuring a 27-inch UHD screen with 4K60 resolution, it ensures exceptional clarity for applications such as medical diagnostics, industrial automation, and other content creation.

With dual-system, dual-network capabilities, this PC allows users to operate two independent systems simultaneously, enhancing security and efficiency. Its multi-touch and handwriting support provide an intuitive interface, making it ideal for precise user input. Additionally, DICOM-assisted diagnostics optimize the display for medical imaging, helping healthcare professionals achieve greater diagnostic accuracy.

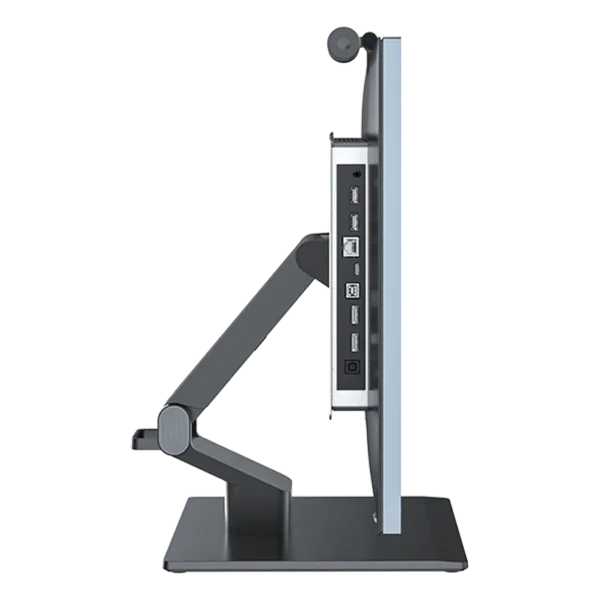

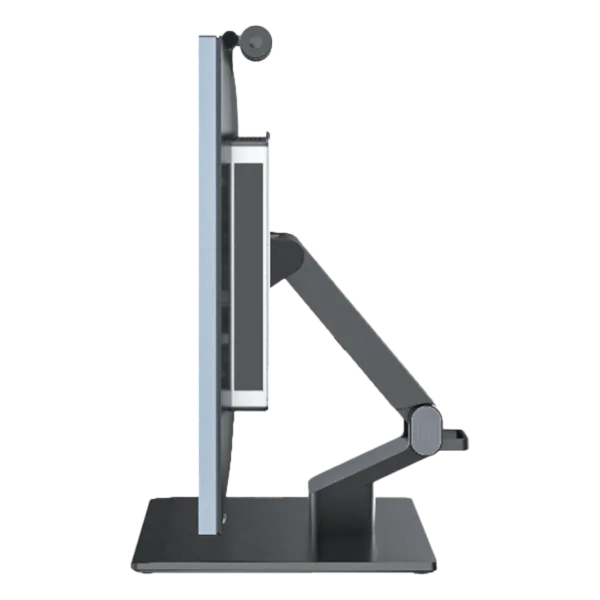

The module card slot enables real-time, high-resolution content capture using CYP SDM module cards, supporting seamless integration with HDBT, SDVoE as well as SDI/HDMI conversion upon image functionalities. All module cards support hot-swappable replacement. The embedded barcode scanner further enhances workflow efficiency by streamlining data retrieval. Designed for adaptability, its foldable hinge allows ergonomic adjustments for various usage scenarios, ensuring a comfortable and efficient workspace.

With powerful performance and a versatile design, the MED-PPS-2700 is the ideal solution for users seeking innovation and efficiency in an all-in-one system.

System
CPU	ARM Cortex A78 x 4 + A55 X 4
GPU	ARM Mali G57 MC5
Operation System	Android 11
Memory	6GB
Storage	32GB

Expansion
Expansion	CYP audiovisual features input card or Intel Core i5 SDM card

Audio
MIC	8 X MIC Array
Speaker Output	2 X 5W

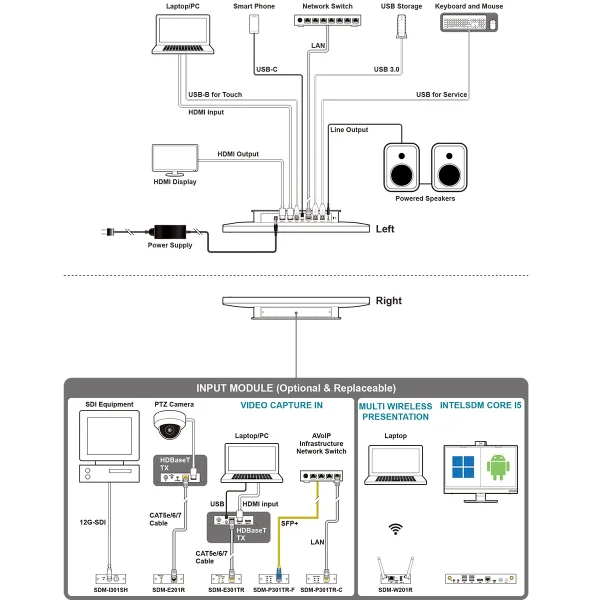

Interface
Input Ports	1 X HDMI 2.0 (Type-A) 1 X 3.5mm Mini Jack(Aux)
Output Ports	1 X HDMI 2.0 (Type-A) 1 X 3.5mm Mini Jack(Head phone)
USB Ports	1 X USB 3.0 Type A 1 X USB 2.0 Type A (service) 1 X USB 2.0 Type B (Touch) 1 X USB Type C (with 65W PD)
LAN Port	1 X RJ-45(10/100/1000)M
Wireless Communication	Wi-Fi / Bluetooth

Panel
Pixel Pitch	0.1554(H) X 0.1554(V)mm
Viewing Angle	178°(H)/178°(V)
Touch Type	10 Point(Finger + Stylus Pen +Palm Rejection)
LCD Size	27”
Resolution	3840x2160p@60Hz
Color performance	99% sRGB
Gamma	Gamma 2.2(fit DICOM curve)
Frame Rate	60Hz

Mechanical & Environmental
Dimension(w/o stand)	323.2 X 405.2 X 58.7 mm
Weight(w/o SDM)	8.5kg
Storage Temp.	-20 ~ 70 °C(Sea level)/-4 ~ 158°F
Storage Humidity	10 ~ 90%(non-condensing)
Operating Temp.	0 ~ 40 °C(up to 10,000 ft)/32 ~ 104°F
Operating Humidity	10 ~ 80%(non-condensing)

Power
Power Supply	Power Adapter(AC 100-240V)
Power Consumption (in Operation)	73W(w/o SDM), 92W(w/SDM)
Power Consumption (in Standby)	<2W

Optional Module Cards for Expansion

	Model Name	Main Function	Max. Resolution	USB	Features
Input (Rx) Modules	SDM-E301TR	HDBaseT 3.0 Transceiver	4K60 (4:4:4)	–	- P2P Extension
	SDM-P301TR-C	SDVoE over copper	4K60 (4:4:4)	–	- AVoIP - Multi-view - Video wall - Comprehensive USB over IP functionality - F/W update
	SDM-P301TR-F	SDVoE over fiber	4K60 (4:4:4)	–
	SDM-E201R	HDBaseT 1.0 Rx	4K60 (4:2:0)	–	- P2P extension
	SDM-I301SH	SDI Input	4K60 (4:2:2)	–	- SDI in conversion
	SDM-W201R	Wireless Rx	4K30	USB 3.0	- Wireless Rx - Remote view - Up to 4 multi-view
Input (Intel) Modules	SDM-I5	Intel + Win11	–	–	- Core I5 16G, 256GB SSD
