Cypress Technology
4-Port HDBT with AVLC Input Card
4 HDBT input ports paired with IR input and optical audio input ports, Supports 4K HDR at 24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12- bit color, Supports 12-bit Deep Color up to 1080p@60Hz, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports Optical Audio Return, This card’s features are controlled by the modular matrix
| Hersteller-Nr. | CIN-V4CV |
| Hersteller | Cypress Technology |

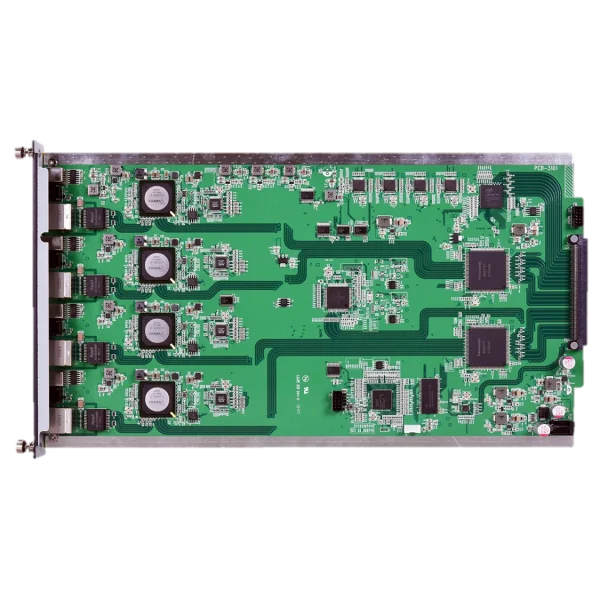

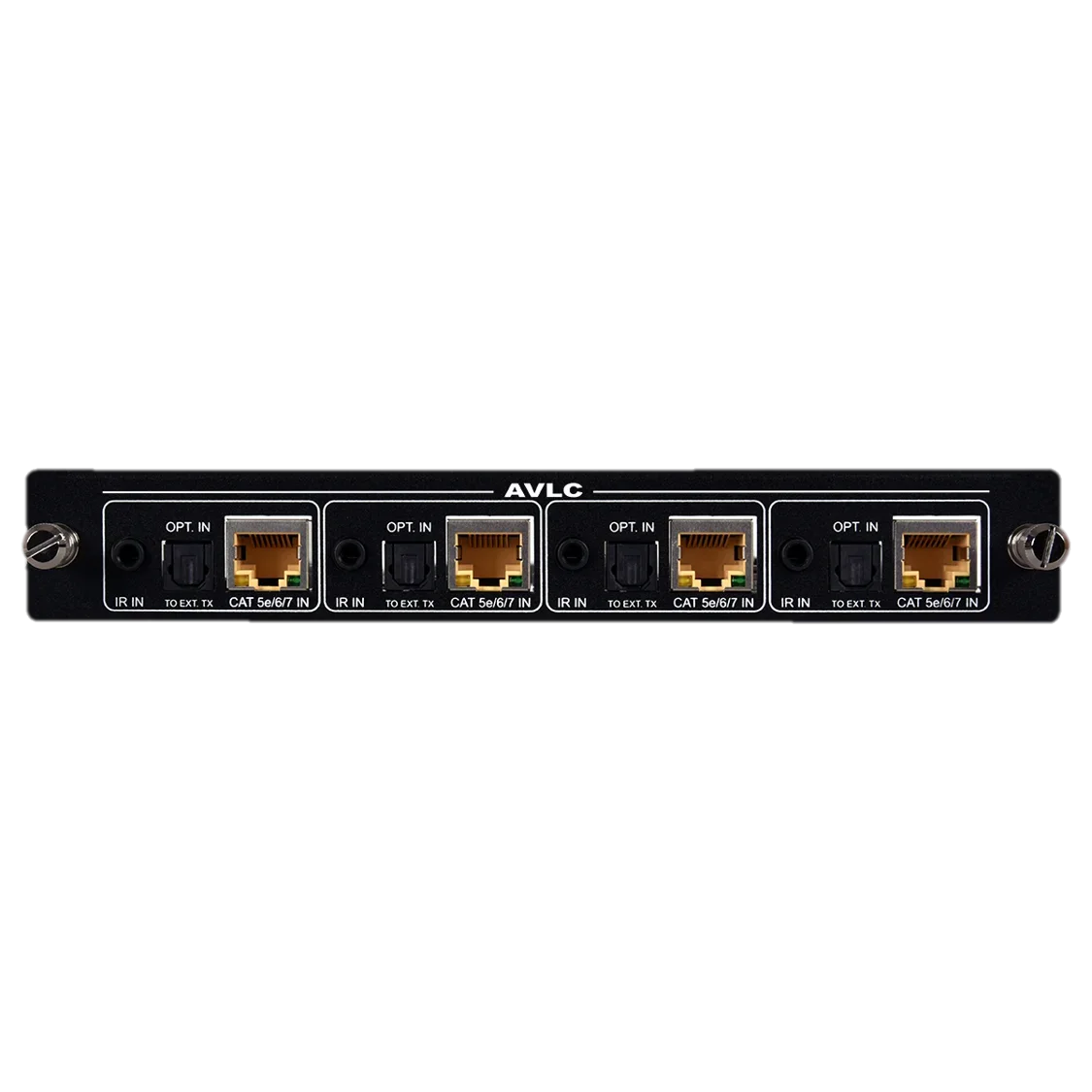

This 4-port HDBT Input Card provides 4 independent high-bandwidth HDBT
inputs, paired with IR input and optical audio inputs which supports the Optical
Audio Return (OAR) channel feature, found on compatible HDBaseT receivers,
allowing optical audio sources connected to those receivers to be sent back
to the matrix unit. Each grouping can be freely routed to any available output
on the connected modular matrix. Despite HDBaseT’s 10.2Gbps bandwidth
limitation, each port is able to supports up to and including 4K@60Hz (4:4:4,
8-bit) as well as 10/12-bit sources with HDR to be received and processed by
the use of AVLC (Adaptive Visually Lossless Compression) when connected to a
compatible AVLC Receiver.
| Interfaces | |
|---|---|
| Input Port |
|
| Control I/O |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input | HDBT |
|
| Audio | |
|---|---|
| HDBT |
|
| Optical In |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CIN-V4CV |
|
| CH-1605RXV |
|
Keine Maßangaben verfügbar.
Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand
• ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
