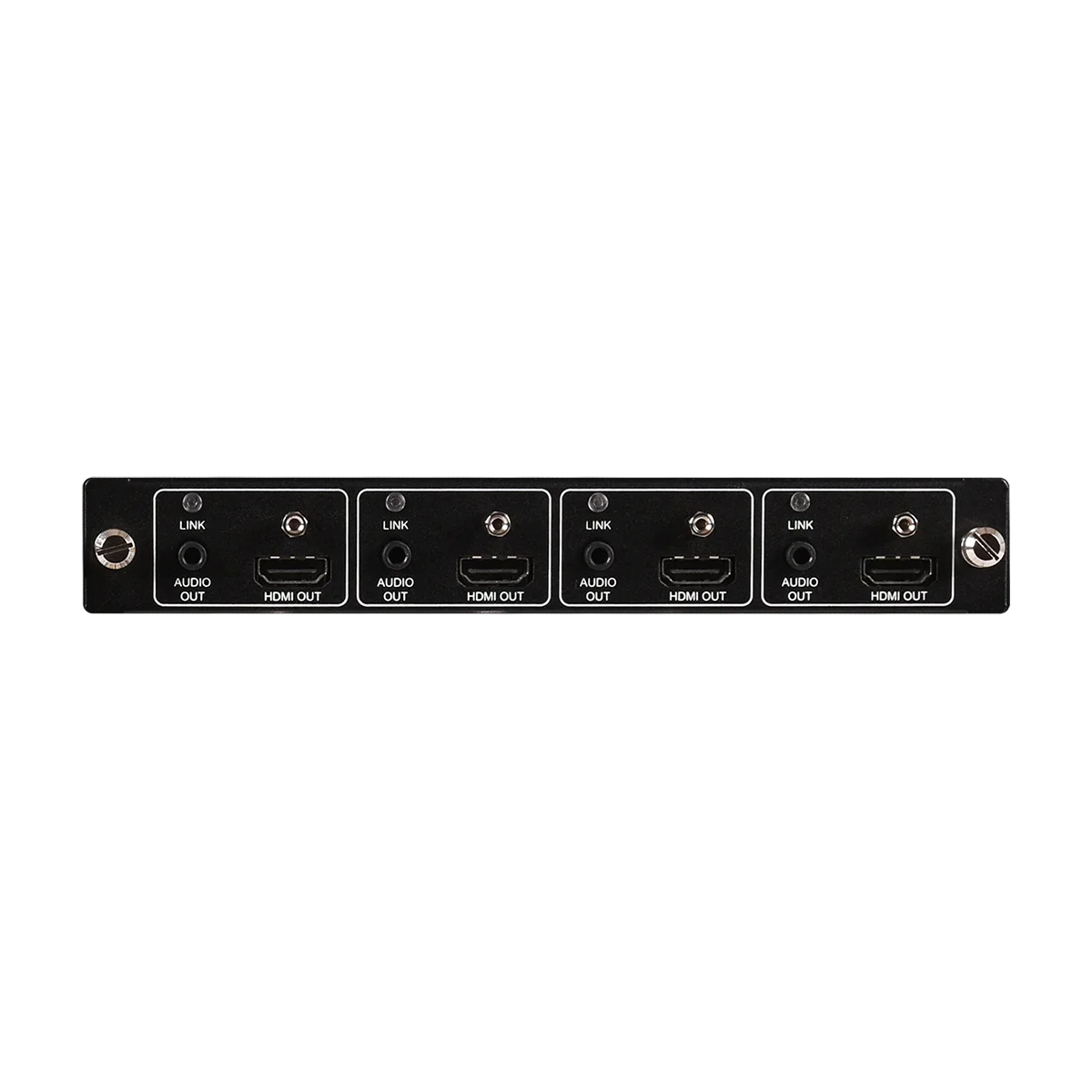

4-Port HDMI Output Card
4 HDMI output ports paired with analog stereo output ports, Single-link DVI compatible with the use of an HDMI-DVI adapter, HDCP 2.2 and HDCP 1.x compliant, Supports up to 4K UHD (18Gbps, 4K@50/60Hz 4:4:4, 8-bit) video, Supports 10-bit and 12-bit HDR (High Dynamic Range) output, Supports 12-bit Deep Color up to 1080p@60Hz, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports stereo audio extraction (LPCM 2.0 sources only), This card’s features are controlled by the modular matrix
| Hersteller-Nr. | COUT-V4HP |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
4 HDMI 4 Analog Stereo (3.5mm) |
|
Pass-through Port |
4 IR Blasters (3.5mm) |
|
Video |
||
|
HDMI Compliance |
2.0 |
|
|
HDCP Compliance |
2.x |
|
|
Input Signal Type |
4096x2160p@60 8-bit YUV 4:4:4, HDR10 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 |
|
Audio |
|
|
HDMI |
LPCM (8 Channels), Bitstream, HD Bitstream |
|
Line Level |
Frequency Response: < ±1dB (20Hz to 20kHz) THD: < 0.01% (20Hz to 20kHz) S/N Ratio: > 70dB (1kHz with 0dBFS) Crosstalk: < −60dB (10kHz, Vin=0dBFS) |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
187.4mm×29.1mm×344.9mm [Case Only] 197.5mm×29.1mm×364.6mm [All Inclusive] |
|
Weight |
458g |
Keine Maßangaben verfügbar.
