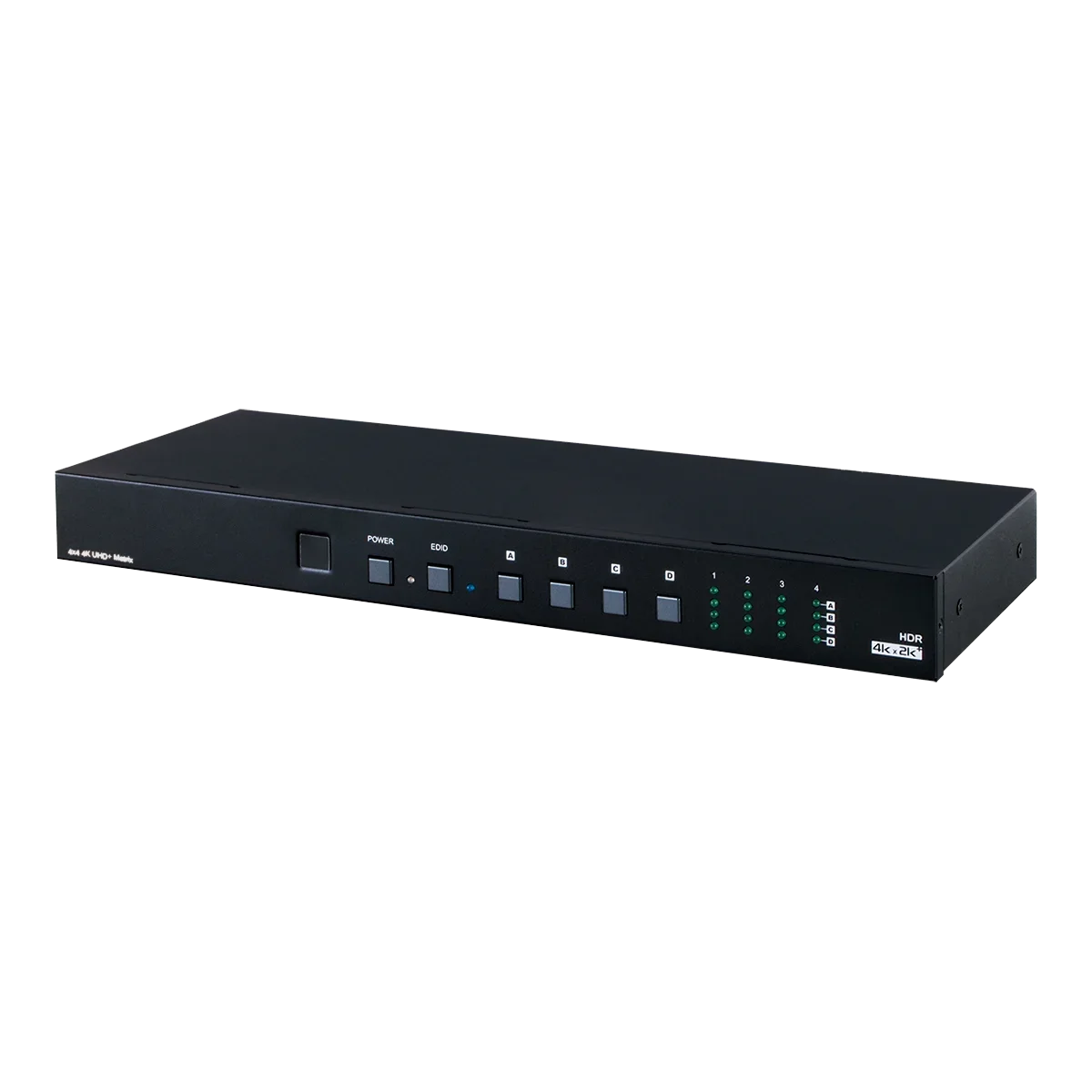

4K HDR 4×4 HDMI Matrix

HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support, DVI 1.0 compliant with the use of an HDMI-DVI adaptor, HDCP 1.4 and 2.2 compliant, Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) & 4096x2160@60 Hz (YUV 4:4:4, 8-bit), Supports 48-bit Deep Color up to 1080p60, Supports 3D signal bypass, Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over HDMI, Provides powerful EDID management tools with 4 slots for user created EDIDs, and EDID bypass support, Supports storing and recall of up to four routing presets, Controllable via front-panel buttons, RS-232, Telnet, WebGUI, and IR remote

Hersteller-Nr.	CPLUS-V4H4H
Hersteller	Cypress Technology

This 4x4 4K UHD Matrix provides a high level of audio and video performance with support for resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit), HDR (High Dynamic Range), and pass-through support of digital audio formats including LPCM 7.1 (with sampling rates up to 192kHz), bitstream, and HD bitstream. The 4 HDMI inputs and 4 HDMI outputs support fully matrixed switching. A sophisticated WebGUI interface supports storing and recalling up to four routing presets, making remote control and configuration of the unit a breeze. Built in EDID management support allows the user select from multiple built in EDIDs as well as to upload custom EDID files and download the EDID from connected displays. Control is provided via front panel buttons, IR remote, WebGUI, RS-232, and telnet.

Video Bandwidth	600MHz/18Gbps
Input Ports	4x HDMI [4x Uncompressed AV and Data] 1x 3.5mm [1x Infrared Receiver] 1x DE-9 [1x RS-232 Data] 1x RJ-45 [1x IP Control] 1x USB Mini-B [1x SERVICE Propriety Data]
Output Ports	4x HDMI [4x Uncompressed AV and Data]
Supported Resolutions	480i~1080p@24/50/60Hz 4K up to 4096x2160@60Hz (YUV 4:4:4, 8-bit) VGA~WUXGA
IR Frequency	30-50kHz
Baud Rate	115200 bps
Power Supply	24VDC/2.7A (US/EU standards, CE/FCC/ UL certified)
ESD Protection	Human body model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	436 mm x 44 mm x 160mm (W×H×D) [Case Only] 436 mm x 48 mm x 167.5mm(W×H×D) [All Inclusive]
Weight	2068g
Chassis Material	Metal
Color	Black
Operating Temperature	0˚C~40˚C/32˚F~104˚F
Storage Temperature	−20˚C~60˚C/−4˚F~140˚F
Relative Humidity	20~90% RH (non-condensing)
Power Consumption	21W

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
