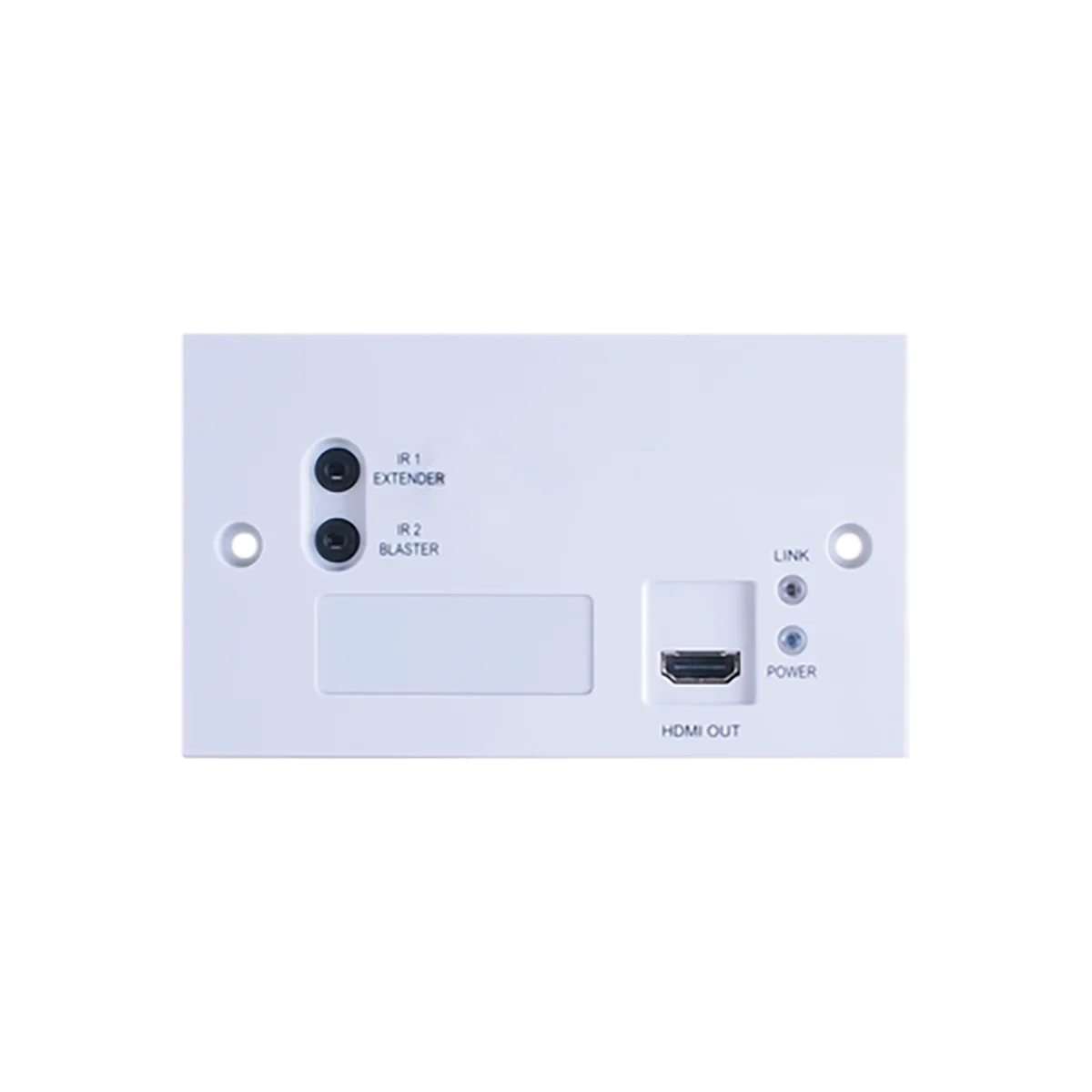

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR & PoC (PD) (2 Gang UK)

HDMI with 3D, 4K2K support, HDCP and DVI compliant, Supports HDCP repeater and CEC bypass functions, Simultaneous tranmisson of uncompressed data over a single 60m CAT5e/6/7 cable, Uncompressed video support up to 1080p@60 Hz/36-bit, High definition audio support up to LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio, Easy to install wall plate design

Hersteller-Nr.	CH-507RXWPL
Hersteller	Cypress Technology

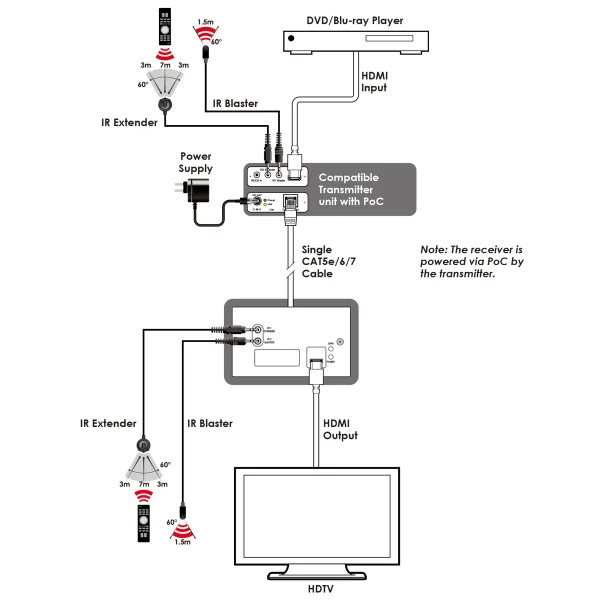

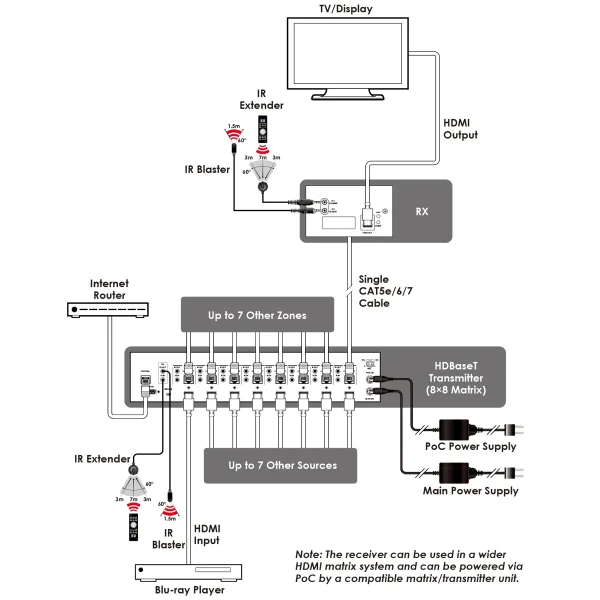

The HDMI over Single CAT5e/6/7 Wall-plate Receiver is designed to receive uncompressed video, audio and IR control data from a compatible transmitter over a single run of CAT5e/6/7 cable at a distance of up to 60 meters. It has the added benefit of control through the built-in IR ports. Additionally, it can be powered by a compatible transmitter unit via the Power over Cable (PoC) functionality allowing for greater flexibility in installations.

HDMI Bandwidth	10.2Gbps
HDBaseT Bandwidth	10.2Gbps
Input Ports	1×CAT5e/6/7, 1×IR Extender
Output Ports	1×HDMI, 1×IR Blaster
IR Frequency	30 - 50kHz (30 - 60kHz under ideal conditions)
Baud Rate	up to 115200/sec
ESD Protection	Human-body Model: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
Dimensions	145.7 mm (W)×85.7 mm (D)×36.5 mm (H)/ Jacks Excluded 145.7 mm (W)×85.7 mm (D)×39.5 mm (H)/ Jacks Included
Weight	160 g
Chassis Material	Plastic
Color	White
Operating Temperature	0°C~40°C/32°F~104°F
Storage Temperature	−20°C~60°C/−4°F~140°F
Relative Humidity	20~90 % RH (non-condensing)
Power Consumption	12 W (PoC), 9 W (Main)
