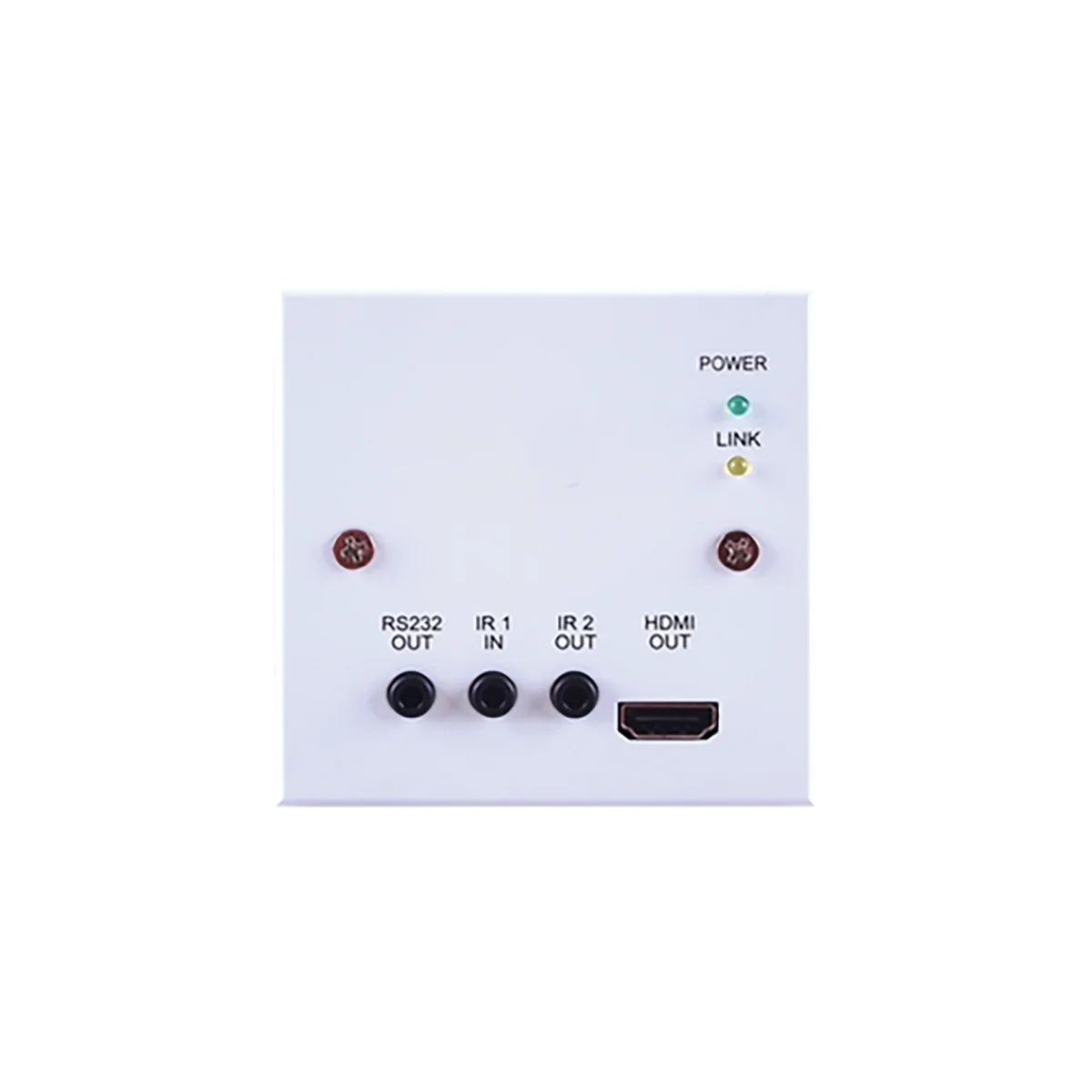

4K60 (4:2:0) HDMI over HDBaseT Wallplate Receiver with IR, RS-232 & PoC (PD) (1 gang UK)

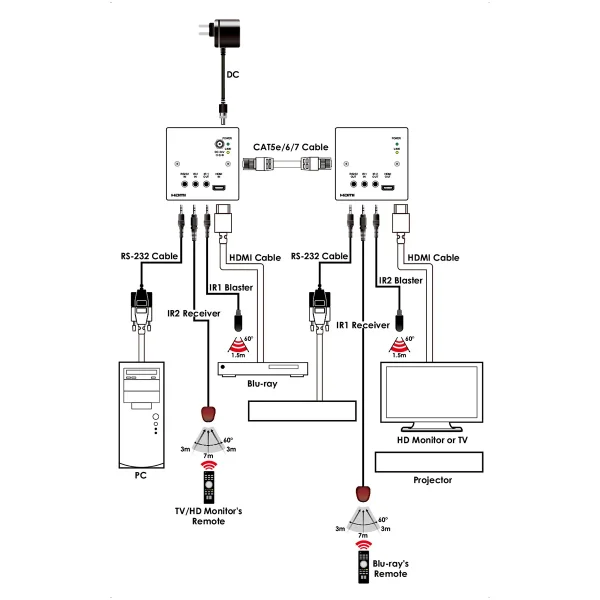

HDCP compliant, Supports HDMI 3D and 4K x 2K features, Supports HDCP repeater and CEC bypass, Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable, HDMI input resolutions up to 4K@60Hz (YUV 4:2:0, 8-bit) or 4K@30Hz(YUV 4:4:4, 8-bit), Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, and Bitstream over HDMI, 4Play™ convergence: HDMI, PoC & Control (IR & RS232), Wall plate design and Installation FriendlyNote: This system was tested with CAT6/23AWG cable, so if using cables of another type, results may vary.
| Hersteller-Nr. | CH-506RXWP |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
1×CAT5e/6/7 1×IR Extender |
|
Output Port |
1×HDMI 1×RS-232 1×IR Blaster |
|
Video |
||
|
HDMI Compliance |
HDMI 1.x (DVI 1.0) |
|
|
Input Signal Type |
4K@60 8-bit YUV 4:2:0 |
|
|
Output Signal Type |
4K@60 8-bit YUV 4:2:0 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 YUV 4:2:0 |
|
Maximum Output |
CAT5e/6/7 |
4096×2160p@60 YUV 4:2:0 |
|
Power |
|
|
Power Supply |
24V / 1.25A DC (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
3W |
|
Enclosure |
|
|
Chassis Material |
Aluminum |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
87mm x 31mm x 87mm |
|
Weight |
200g |
|
Field Firmware Update |
|
|
WebGUI |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
CH-506TXWP |
HDMI & IR over Single CAT5e/CAT6 |
|
CH-506RXWP |
HDMI & IR over Single CAT5e/CAT6 |
Keine Maßangaben verfügbar.
