4K60 (4:2:0) HDMI over HDBaseT Wallplate Transmitter with IR, RS-232, Bidirectional PoC & LAN (2 Gang UK)
HDMI (with 3D format and 4K2K resolution support), HDCP and DVI compliant, Supports HDCP repeater and CEC bypass functions, Simultaneous transmission of uncompressed video/audio and data over a single CAT5e/6/7 cable up to 100m/328ft, HDBaseT™ 5Play convergence: uncompressed high-definition Video and Audio, LAN serving, bi-directional Power over Cable (PoC) and IR/RS-232 Control pass-through, Supports uncompressed video up to 4K2K resolution (3840×2160@30 Hz or 4096×2160@24 Hz), Supports pass-through of high-definition audio formats - LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio, Wall-plate design and installation friendly
| Hersteller-Nr. | CH-507TXWPBD |
| Hersteller | Cypress Technology |

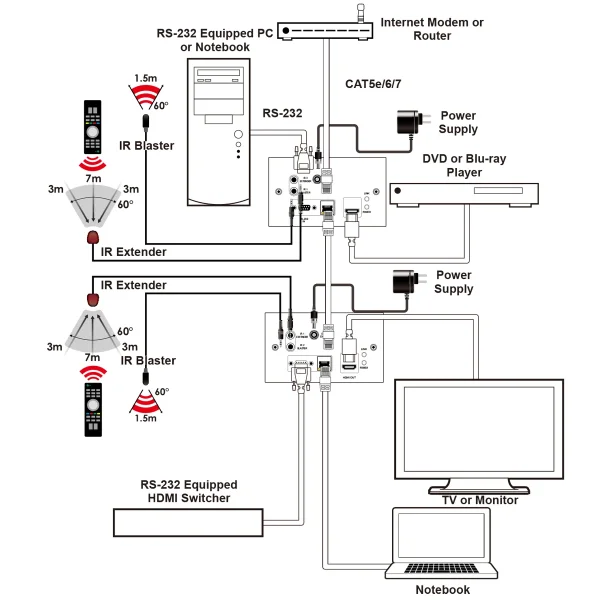

The HDMI over Single CAT5e/6/7 Wall-plate Transmitter and Receiver set can send uncompressed video/audio and IP data over a single run of CAT5e/6/7 cable up to 100 meters. It has the added benefit of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater flexibility in installations.
|
HDMI Bandwidth |
10.2Gbps |
|
HDBaseT Bandwidth |
10.2Gbps |
|
Input Ports |

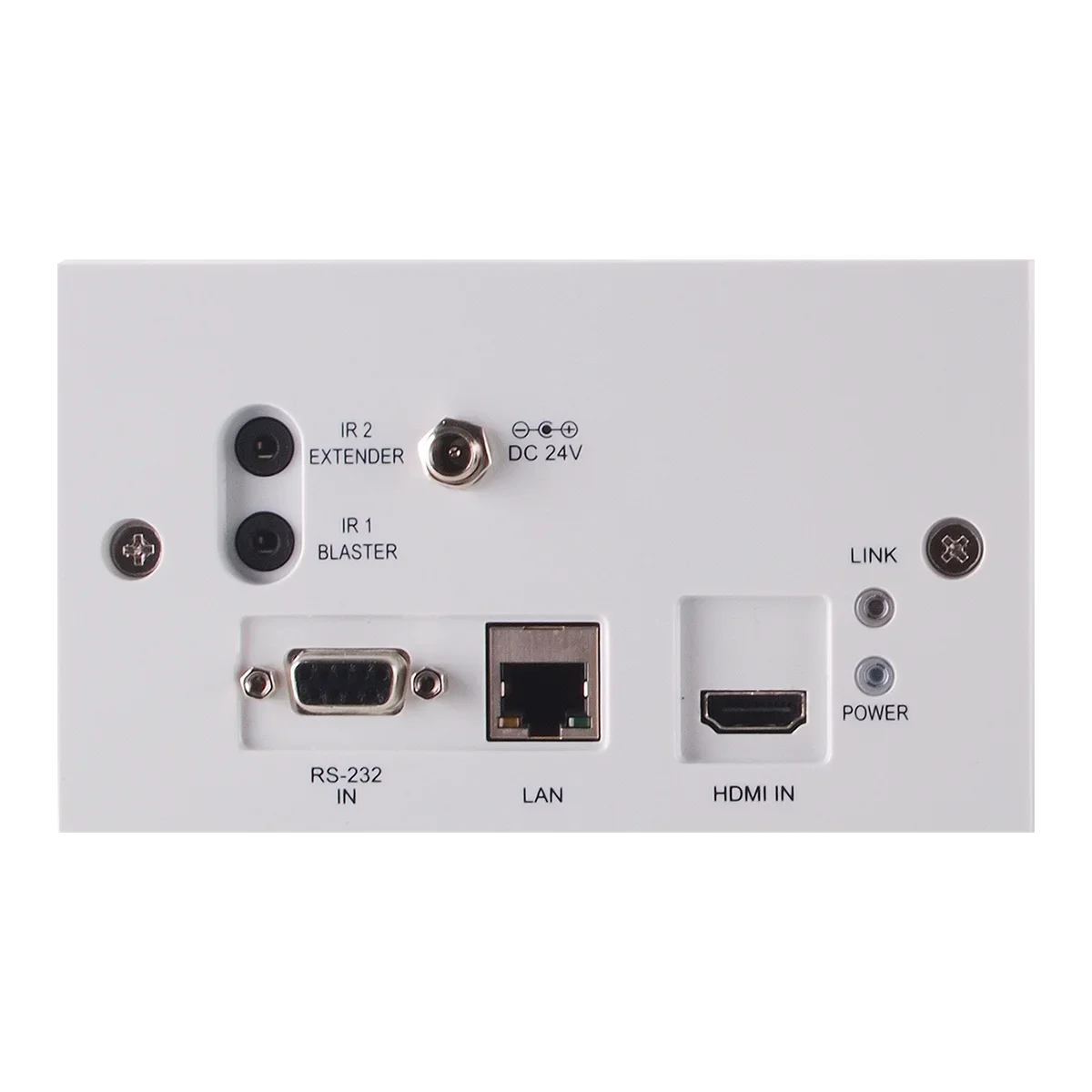

1×HDMI, 1×IR Extender, 1×LAN, 1×RS-232 |
|
Output Ports |
1×CAT5e/6/7, 1×IR Blaster |
|
IR Frequency |
30 - 50kHz (30 - 60kHz under ideal conditions) |
|
Baud Rate |
up to 115200/sec |
|
Power Supply |
24V DC / 1.25A (US/EU standards, CE/FCC/ UL certified) |
|
ESD Protection |
Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
|
Dimensions (mm) |
145.7(W) x 85.7(D) x 36.5(H)/Jacks Excluded 145.7(W) x 85.7(D) x 39.5(H)/Jacks Included |
|
Weight (g) |
156 |
|
Chassis Material |
Plastic |
|
Silkscreen Color |
White |
|
Operating Temperature |
0 °C~40 °C/32 °F~104 °F |
|
Storage Temperature |
−20 °C ~ 60 °C/−4 °F~140 °F |
|
Relative Humidity |
20~90 % RH (non-condensing) |
|
Power Consumption |
12W/PoC, 9W/Stand Alone |
