4x1 UHD+ Switcher
Klicken zum Vergrößern
Cypress Technology

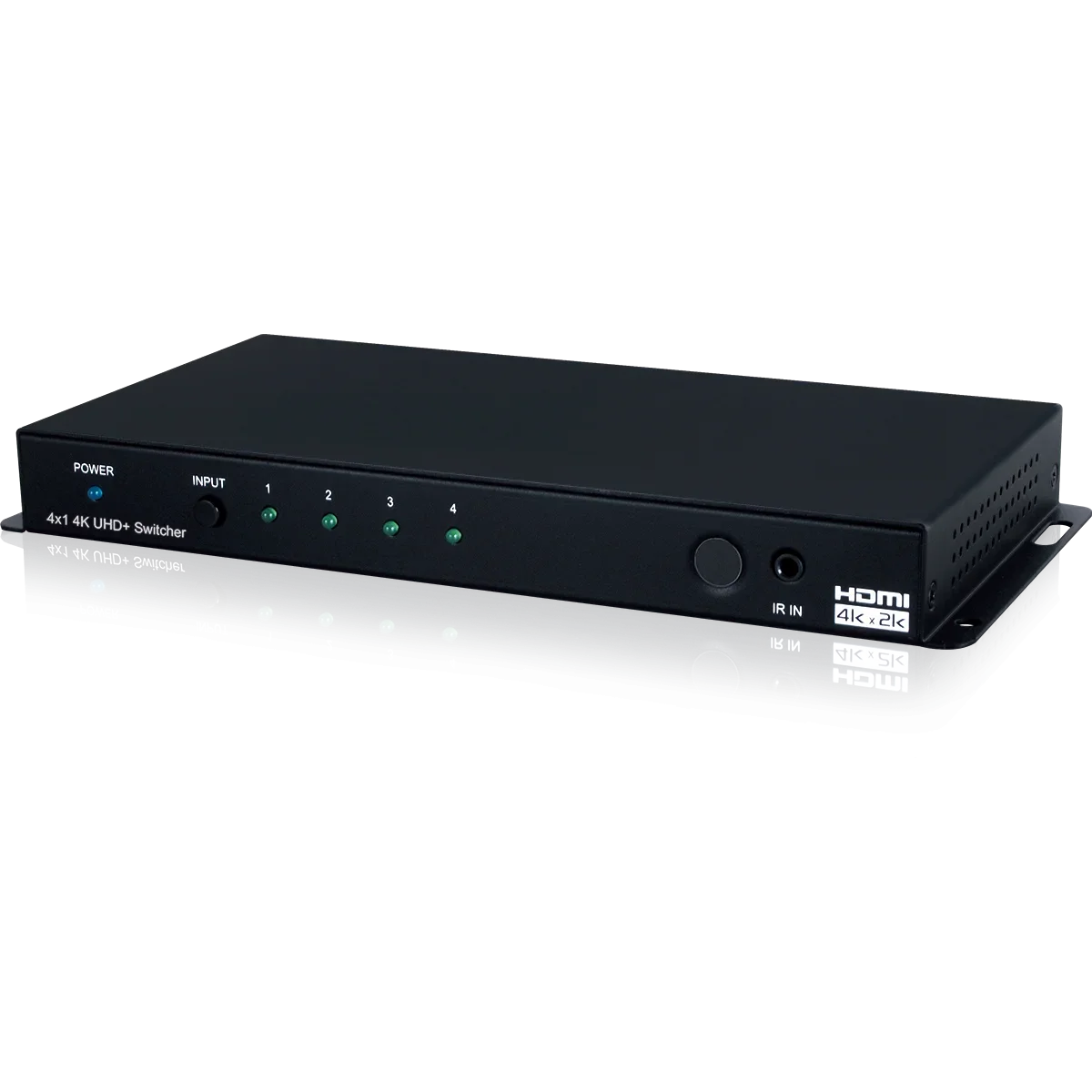

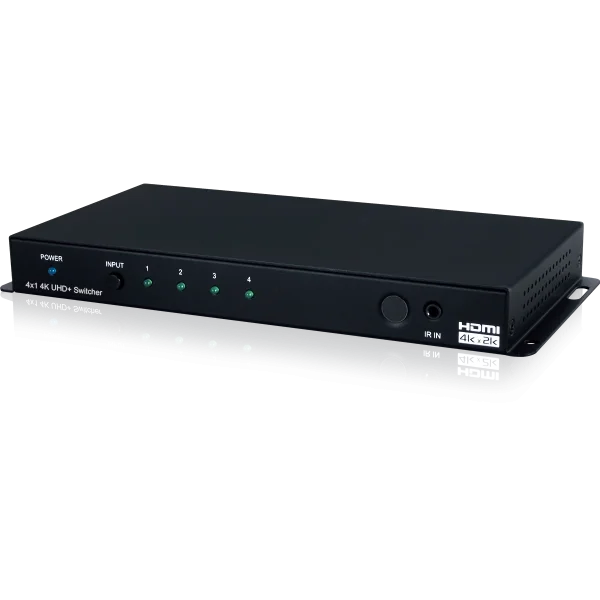

4x1 UHD+ Switcher

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream , CEC pass-through , Support Internal/External EDID management , Controllable via front-panel buttons, RS- 232, and optional IR remote

Hersteller-Nr.CPLUS-V4H1H
HerstellerCypress Technology

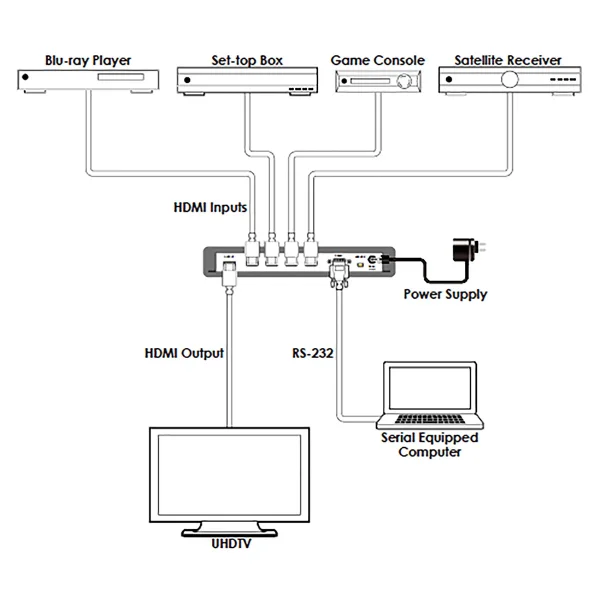

This 4 by 1 HDMI Switcher is a brand new high performance design for the next generation of audio/video equipment. It allows a single HDMI output to switch between 4 HDMI sources. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color up to 1080p60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0 specification. The included auto switching functionality allows for the possibility of hands-free, user friendly, operation. Control is provided via front panel buttons, IR remote, and RS-232
Interfaces
Input Port
  • 4×HDMI (Type-A)
Output Port
  • 1×HDMI (Type-A)
Control I/O
  • 1×IR Extender (3.5mm)
  • 1×RS-232 (DB-9)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.X
Input Signal Types
  • 4096x2160@60Hz 8bit YUV 4:4:4, HDR 12
Output Signal Type
  • 4096x2160@60Hz 8bit YUV 4:4:4, HDR 12
Resolutions
Maximum Input HDMI
  • 4096×2160p@60
 Maximum Output HDMI
  • 4096×2160p@60
Audio
  HDMI
  • LPCM (8 Channels), Bitstream, HD Bitstream
Power
Power Supply
  • 5V/2.6A DC
Power Consumption
  • 6.6W
Enclosure
Chassis Material
  • Metal
Chassis Color
  • Black
Dimensions (W×H×D)
  • 231.5mm×25mm×108mm [Case Only]
  • 231.5mm×25mm×117mm [All Inclusive]
Weight
  • 608g
Field Firmware Update
Interface
  • USB to PC
Ordering Information
Model No. Product Description
CPLUS-V4H1H
  • 4x1 UHD+ Switcher

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
