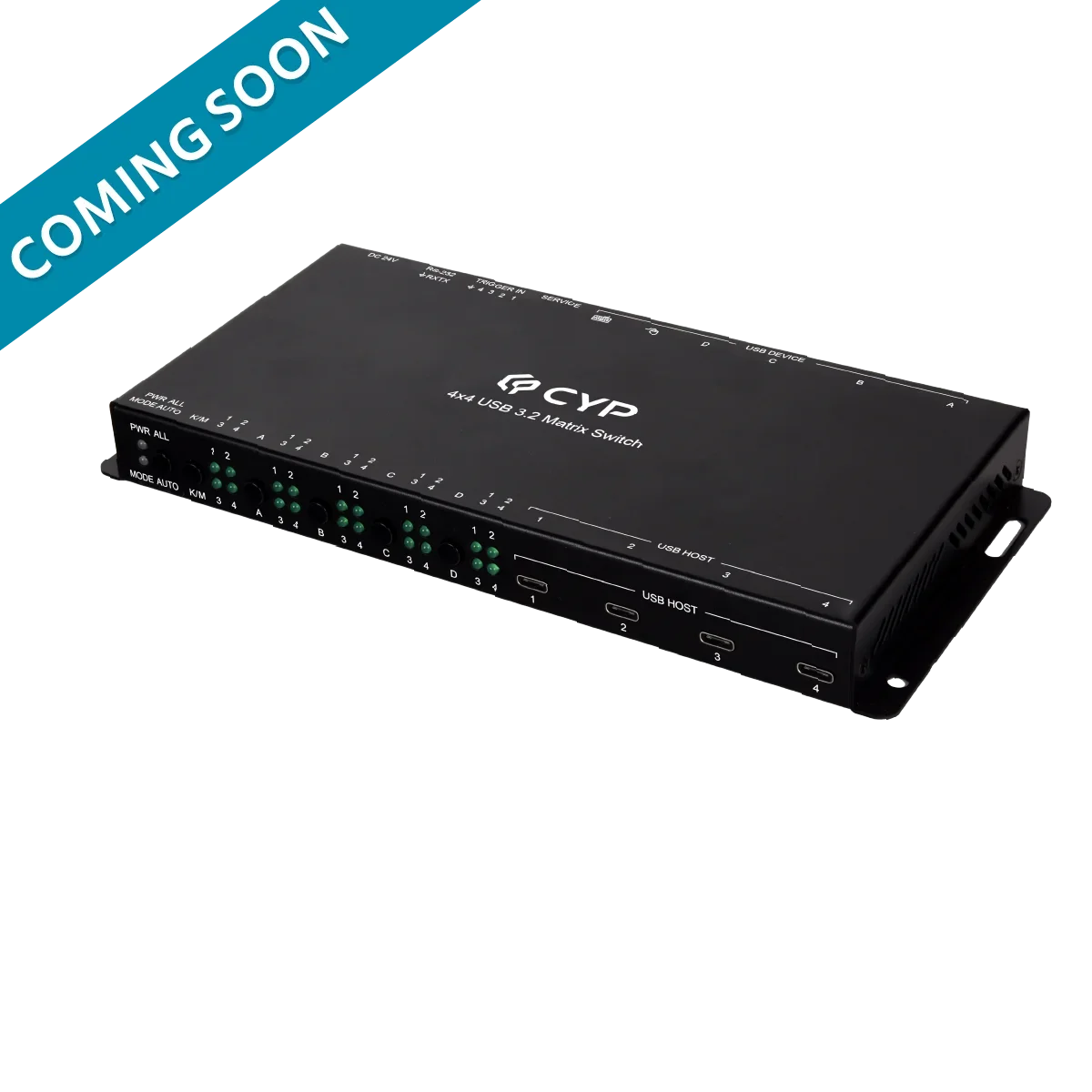

4x4 USB 3.2 Matrix Switch
4 USB 3.2 USB-C hosts ,4 USB 3.2 device ports and 2 USB 2.0 device ports, Supplies up to 900mA/5V to 4 USB 3.2 device ports (A~D) and 500mA/5V USB 2.0 device ports (K/M), Controllable via front-panel buttons, RS-232, and triggers., Supports wide USB peripherals with plug-and-play: USB 3.2 Gen 2: 2 USB-A and 2 USB-C ports, up to 10Gbps, USB 2.0: 2 USB-A ports for keyboard and mouse, USB host selection is controllable via front panel buttons or auto connect detection, Supports three different modes: All mode/ Auto mode/ Matrix mode All Mode: Simultaneously assigns all devices to a single host, Auto Mode: Automatically assigns all devices to the host when connected, Matrix Mode: Freely assigns one or more devices to any host,
| Hersteller-Nr. | CUSB-MX442 |
| Hersteller | Cypress Technology |
This USB 3.2 Gen 2 4x4 Matrix Switch provides a simple and efficient solution for plug-and-play, point-to-point, and sharing USB devices. 4 USB 3.2 Gen 2 devices supports up to 10Gbps transfer rates, and 2 dedicated USB 2.0 device ports for keyboard and mouse connections.

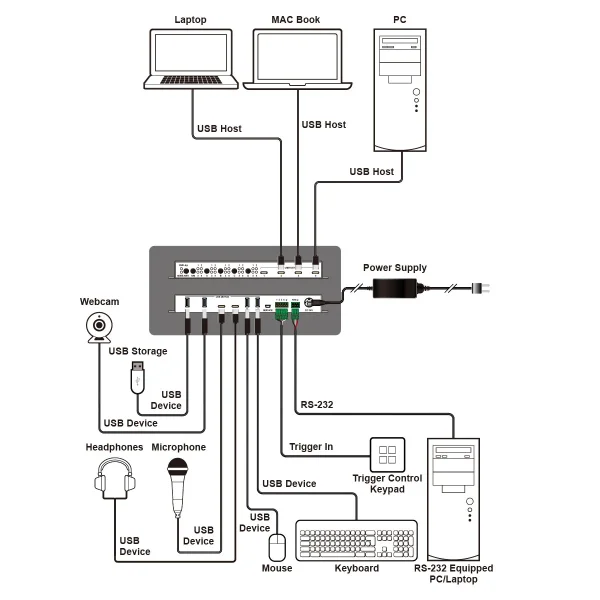

The 4 USB Type-C hosts and 6 USB devices support fully matrixed switching. The location of the USB host device is automatically set by hot plug detection, but can also be manually controlled using front panel buttons, triggers and RS-232 commands.
This flexible USB connectivity makes the switch ideal for frequent data transfer and device management across informational, industrial, educational, and commercial applications.
|
Interfaces |
|
|---|---|
|
USB Host |
4×USB 3.2 Gen2 (Type-C) |
|
USB Device |
2×USB 3.2 Gen2 (Type-A) 2×USB 3.2 Gen2 (Type-C) 2×USB 2.0 (Type-A) |
|
Control I/O |
1×RS-232 (3-pin Terminal Block) 1×Trigger (5-pin Terminal Block) |
|
Service Port |
1×USB 2.0 (Mini-B) |
|
USB |
|
|---|---|
|
USB Performance |
3.2 Gen2, SuperSpeed+ 10Gbps |
|
Power |
|
|---|---|
|
Power Supply |
24V/2.7A |
|
Power Consumption |
5.7W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×112.7mm [All Inclusive] |
|
Weight |
625g |
|
Field Firmware Update |
|---|
|
PC Update |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|---|---|
|
CUSB-MX442 |
4×4 USB 3.2 Matrix Switch |
