Cypress Technology

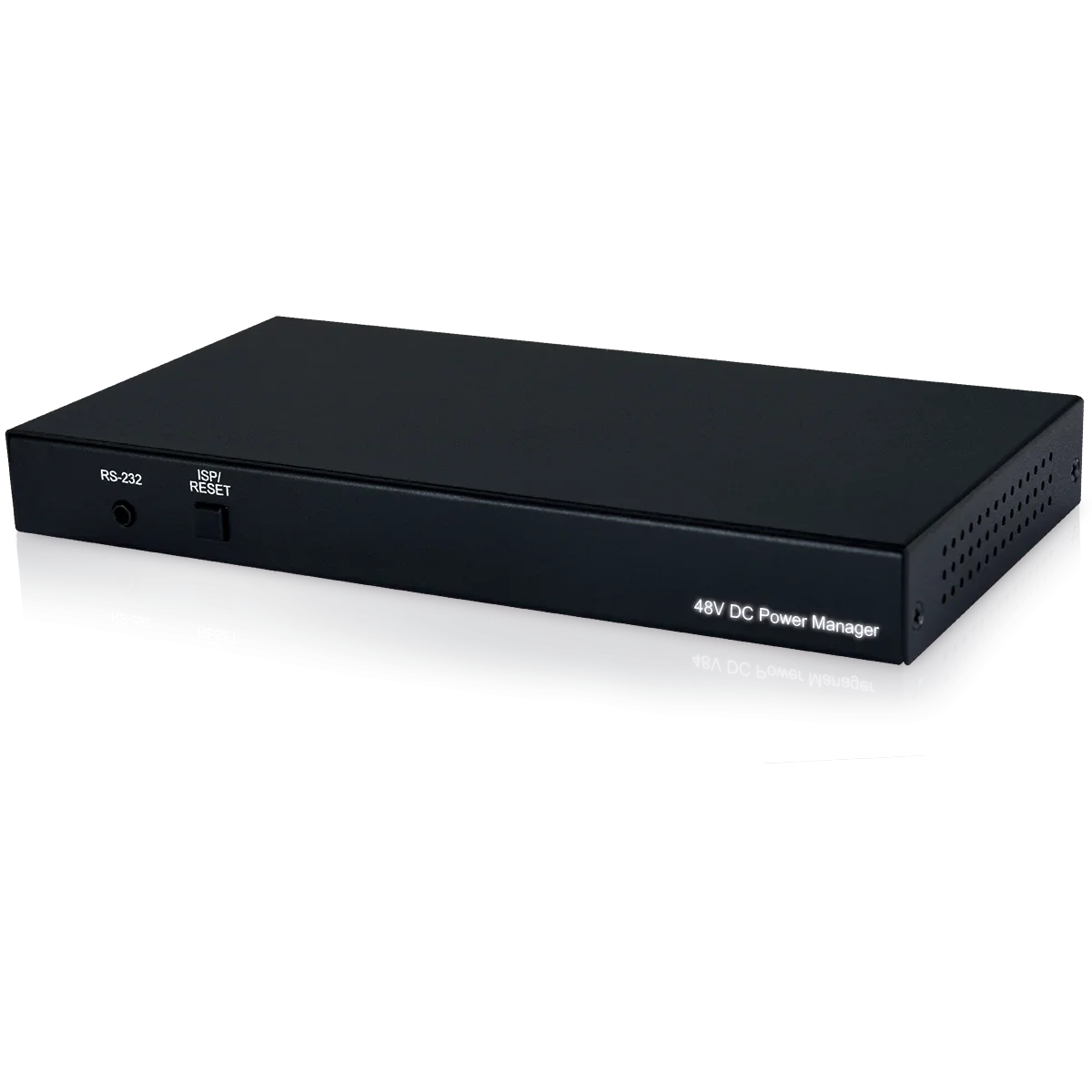

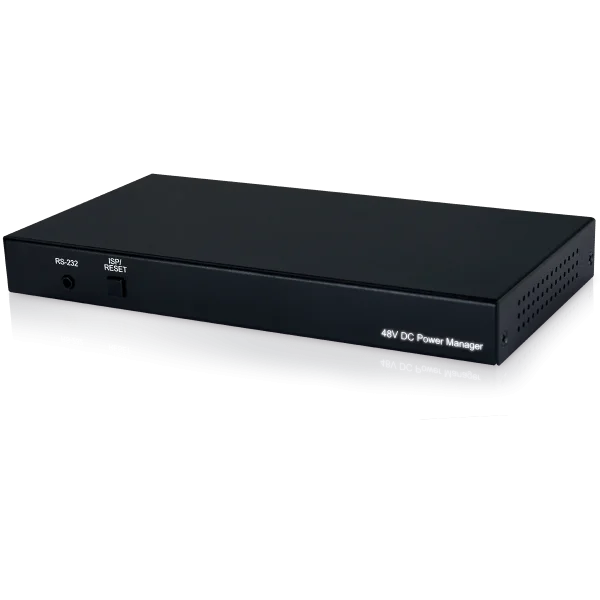

8-Port 48V DC Power Manager
Power management system providing voltage-controlled current (48V) on each output, Battery backed up clock for scheduling power events, Integrated WebGUI for control and power analysis, Unit’s overall maximum power consumption is only 143 watts, Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors, 115 watts of total power provided across all 8 outputs (14 watts per output, or up to 45 watts over a single port, if additional ports have been turned off)
| Hersteller-Nr. | CSR-8PSU-48V |
| Hersteller | Cypress Technology |

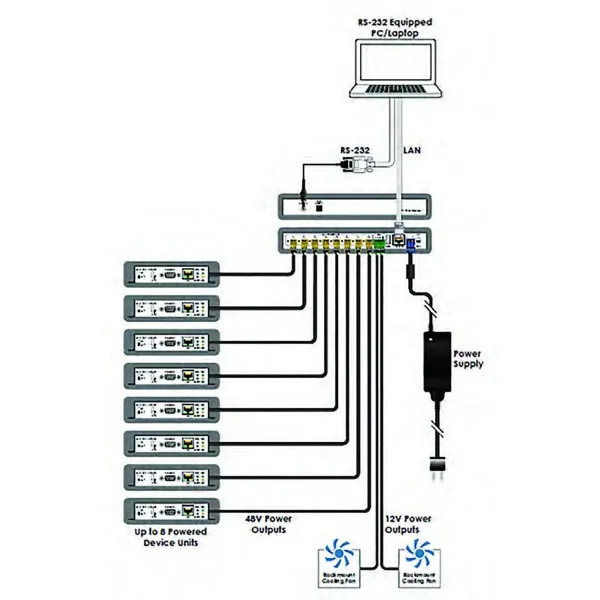

This 8-Port 48V DC Power Manager is a DC power splitter which can distribute
up to 300 milliamps of 48 volt power to up to eight connected devices via
2-pin terminal block connections (115 watts total across all 8 outputs). Ideal
for professional applications, this unit provides direct per-port power control
via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows
for detailed power scheduling based on a repeating daily/weekly schedule, or
single events. Up to 2 fans may be connected and their speed can be either
automatically controlled based on a detected temperature, or set to a single
static speed. Detailed status information about the power input, each power
output, current fan speed, and system temperature is provided to give a
comprehensive system overview.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CSR-8PSU-48V |
|
Keine Maßangaben verfügbar.
Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand
• ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
