Cypress Technology

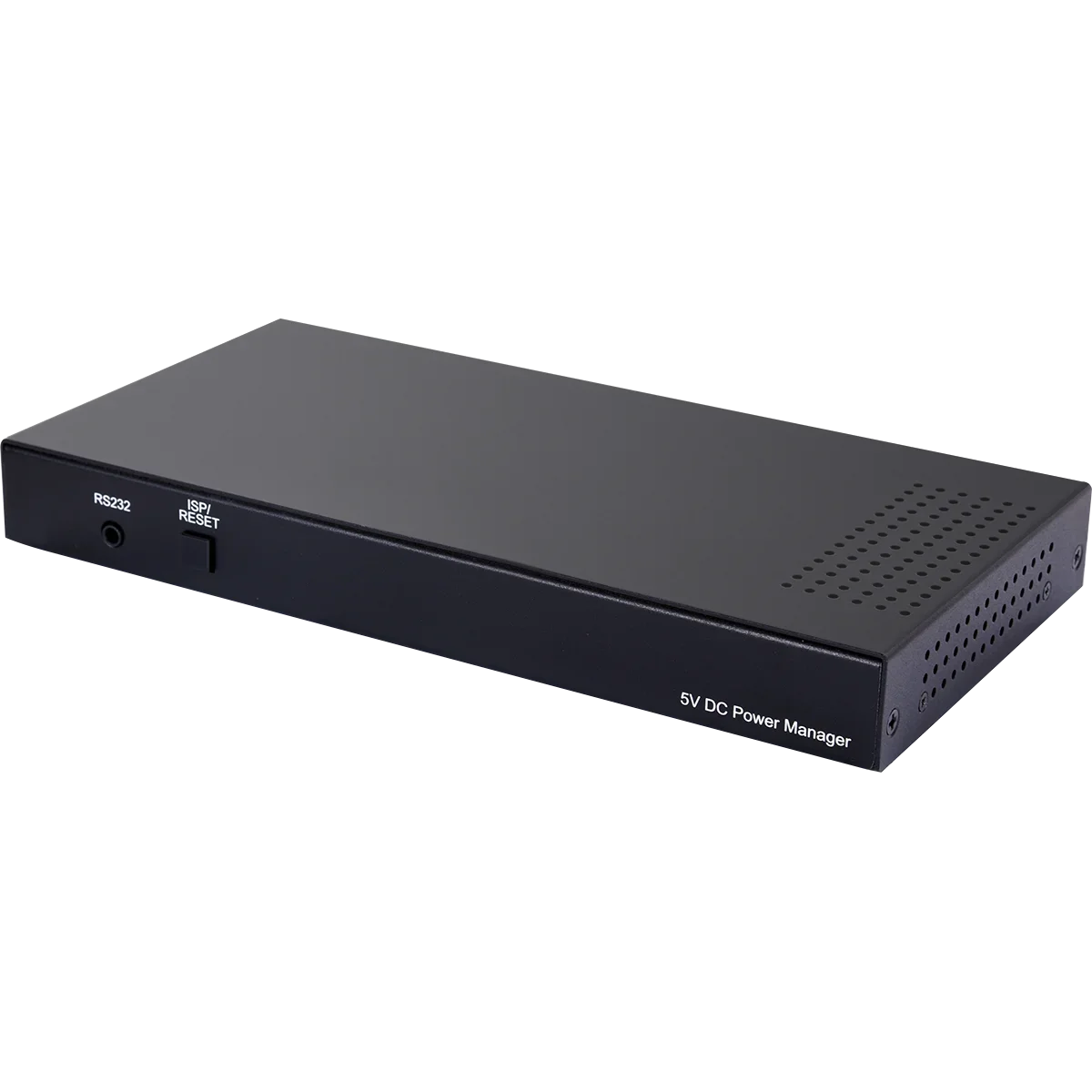

8-Port 5V DC Power Manager
Power management system providing voltage-controlled current (5V) on each output , Battery backed up clock for scheduling power events, Integrated WebGUI for control and power analysis , Unit’s overall maximum power consumption is only 140 watts , Supports 8 power output ports with professional 2-pin 3.5mm terminal block connectors
| Hersteller-Nr. | CSR-8PSU-5V |
| Hersteller | Cypress Technology |

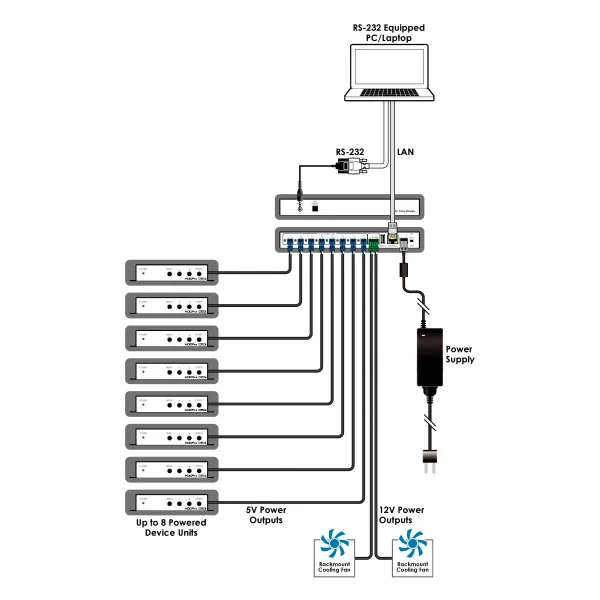

This 8-Port Managed 5V DC Power Supply is a DC power splitter which can
distribute up to 3 amps of 5 volt power to up to eight connected devices via
2-pin terminal block connections (120 watts total across all 8 outputs). Ideal
for professional applications, this unit provides direct per-port power control
via WebGUI, Telnet or RS-232. An integrated, battery backed-up, clock allows
for detailed power scheduling based on a repeating daily/weekly schedule, or
single events. Up to 2 fans may be connected and their speed can be either
automatically controlled based on a detected temperature, or set to a single
static speed. Detailed status information about the power input, each power
output, current fan speed, and system temperature is provided to give a
comprehensive system overview.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CSR-8PSU-5V |
|
