8×8 HDMI Matrix with Simultaneous Dual CAT6 and HDMI Outputs
HDMI, HDCP 1.1 and DVI compliantSupports HDMI 3D pass-throughSupports resolutions from VGA~WUXGA@60RB and HD resolutions from 480i~1080p dependent upon the display’s EDID settingsSupports transmission distances up to 45 meters through Dual CAT6 cablesSupports 3D signal display dependent upon the display's EDID settingsSupports simultaneous HDMI and CAT6 outputsSupports HDMI input up to 15 meters at 8-bit resolution or 10 meters at 12-bit resolution; CAT output up to 45 meters at 8-bit resolutionSupports IR pass-back through CAT for source controlSupports RS-232, remote control, on-panel control and IP Control (Telnet & Web GUI)2U size designSupports external and internal EDID settingsSupports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissionNote:1. Tested with CAT-6/23AWG cable, results may vary with cables of a different specification.2. Cable distance tested with a Sony PS3 40G, 37" Philips 8-bit LCD TV and 37" Samsung 12-bit LCD TV.3. Figures provided in this manual are for reference only, actual figures may vary depending on the source equipment and display being used along with the type of cables and their specifications.4. Do not connect the LAN/CONTROL port to CAT outputs of this device.
| Hersteller-Nr. | CMSI-8H8HC |
| Hersteller | Cypress Technology |

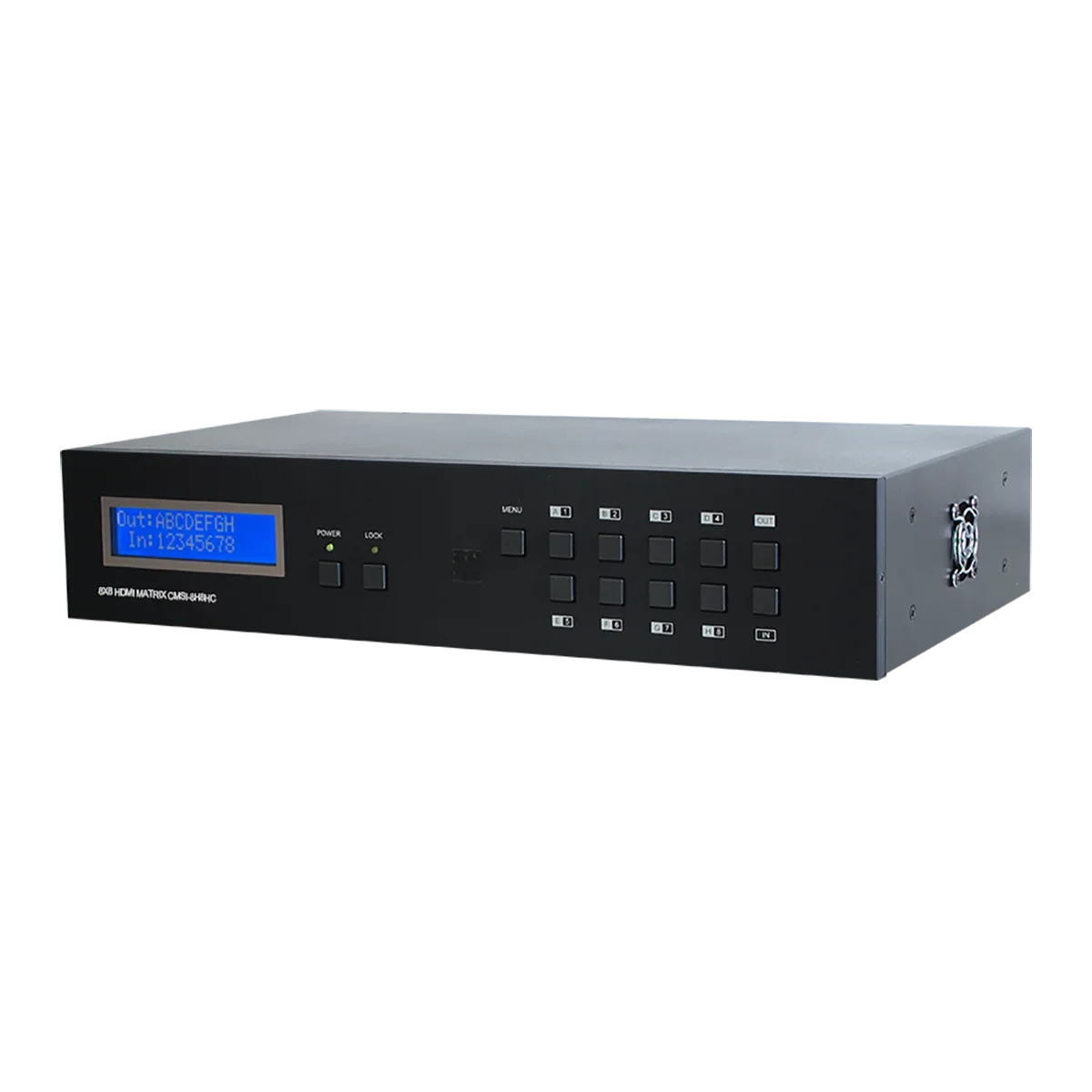

The 8×8 HDMI Matrix with simultaneous CAT6 and HDMI outputs connects eight HDMI sources to 16 displays. This matrix features 8 HDMI outputs and each HDMI output is mirrored to provide a Dual- CAT-Cable output which runs simultaneously. Connect a CH-1106RX Receiver to each of the Dual-CAT-Cable outputs to extend the HDMI signal up to 45m for multi-room connectivity.This matrix switcher can be controlled via the supplied IR Remote Control, RS-232, Telnet, Web GUI or by using the selection buttons on the front panel. This device supports ‘Deep Color’, High Definition Audio, and 3D signal compatibility.
|
Video Bandwidth |
225 MHz/6.75 Gbps |
|
Input Ports |

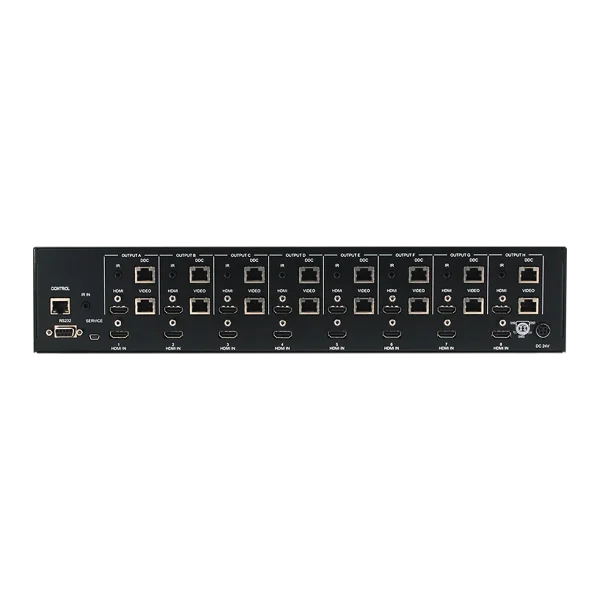

8×HDMI, 1×IR Extender, 1×RS-232, 1×Mini USB Type B (for firmware update only), 1xRJ-45(Control) |
|
Output Ports |
8×Dual CAT6, 8×IR Blaster, 8×HDMI |
|
HDMI Input Cable Distance |
15m/8-bit, 10m/12-bit |
|
HDMI Output Cable Distance |
15m/8-bit, 15m/12-bit |
|
CAT6 Cable Distance |
45m/8-bit |
|
ESD Protection |
Human-body Model: ± 8kV (Air-gap discharge) ± 4kV (Contact discharge) |
|
Power Supply |
24 V/6.25 A DC (US/EU standards, CE/FCC/UL certified) |
|
Dimensions |
438 mm (W)×255 mm (D)×93 mm (H) |
|
Weight |
4717 g |
|
Chassis Material |
Metal |
|
Silkscreen Color |
Black |
|
Operating Temperature |
0 ºC~40 ºC/32 ºF~104 ºF |
|
Storage Temperature |
−20 ºC~60 ºC/−4 ºF~140 ºF |
|
Relative Humidity |
20~90 % RH (non-condensing) |
|
Power Consumption |
55 W |
