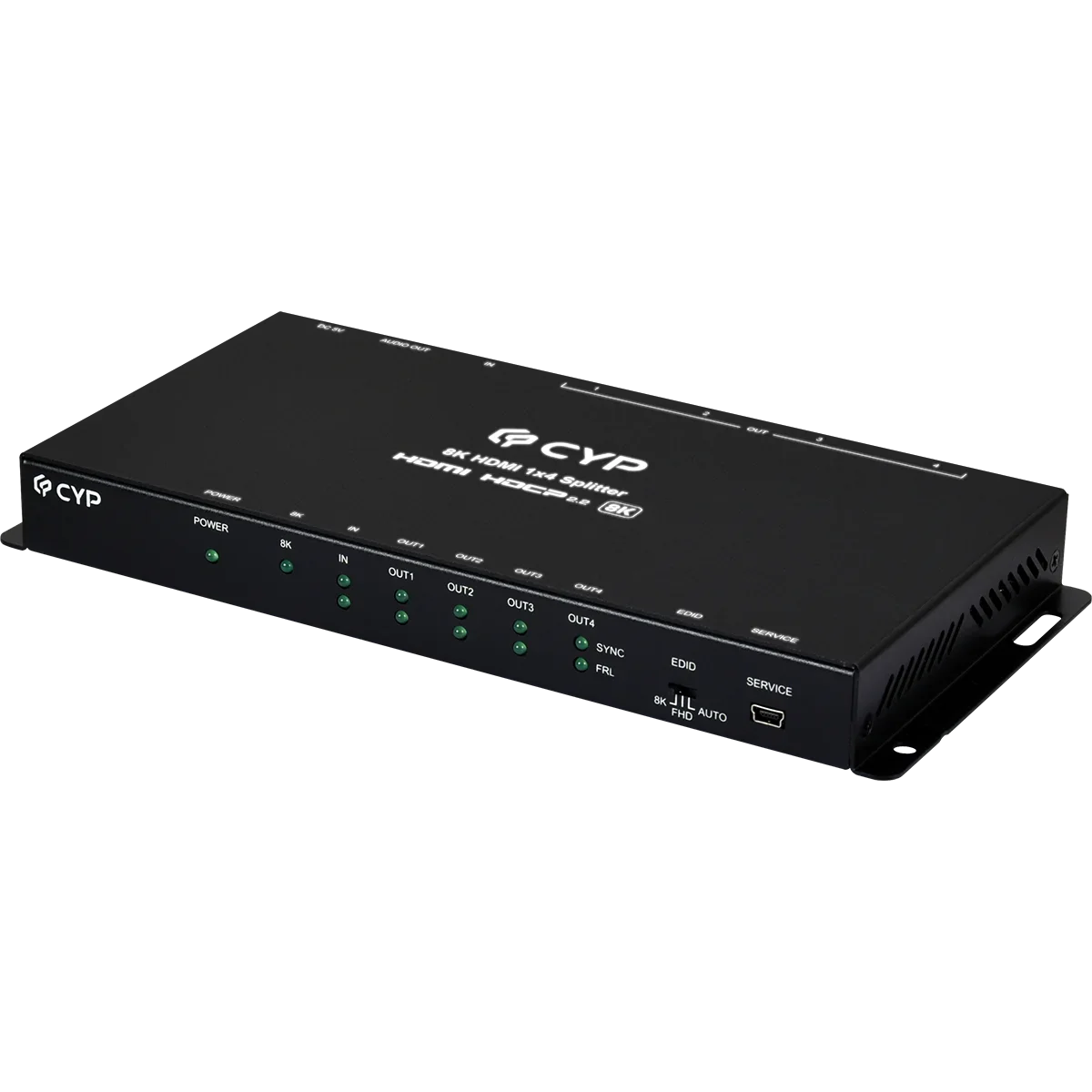

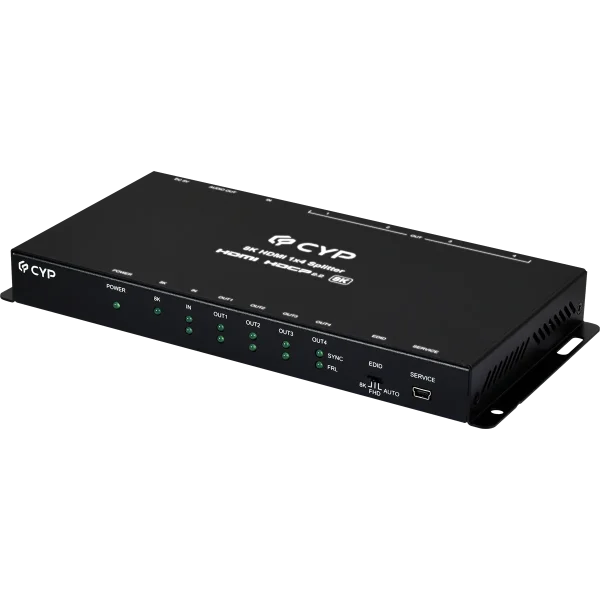

8K 1x4 HDMI Splitter
Compatible with HDMI 2.1 and DVI 1.0, HDCP 2.3 and HDCP 1.x compliant, Supports resolutions up to 8K@60Hz (YUV444), Supports pass-through of audio formats including LPCM (up to 8 channels), Bitstream and HD Bitstream from HDMI including Dolby5.1/AC-3, DTS5.1, DD+, D-TrueHD, DTS-HD, Dolby Atmos, Supports internal EDIDs and external EDIDs options, control by front panel, Supports CEC Power On/Off
| Hersteller-Nr. | VSP-H8K-1401 |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
1 HDMI (Type A) |
|
Output Port |
4 HDMI (Type A) |
|
Control I/O |
|
Video |
||
|
HDMI Compliance |
HDMI 2.1 (DVI 1.0) |
|
|
HDCP Compliance |
2.3 |
|
|
Input Signal Type |
8K@60 YUV 4:4:4 |
|
|
Output Signal Type |
8K@60 YUV 4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
7680×4320p@60 YUV 4:4:4 |
|
Maximum Output |
HDMI |
7680×4320p@60 YUV 4:4:4 |
|
Audio |
|
|
HDMI |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
|
Power |
|
|
Power Supply |
5V/2.6A DC (Locking) |
|
Power Consumption |
TBD |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×108mm [Case Only] 231.5mm×30mm×118mm [All Inclusive] |
|
Weight |
616g |
|
Field Firmware Update |
|
USB |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
VSP-H8K-1401 |
8K 1x4 HDMI Splitter |
Keine Maßangaben verfügbar.
