CAT5e/6 to HDMI with LAN/IR/RS-232 (4K@60 420 up to 70M)
Klicken zum Vergrößern
Cypress Technology

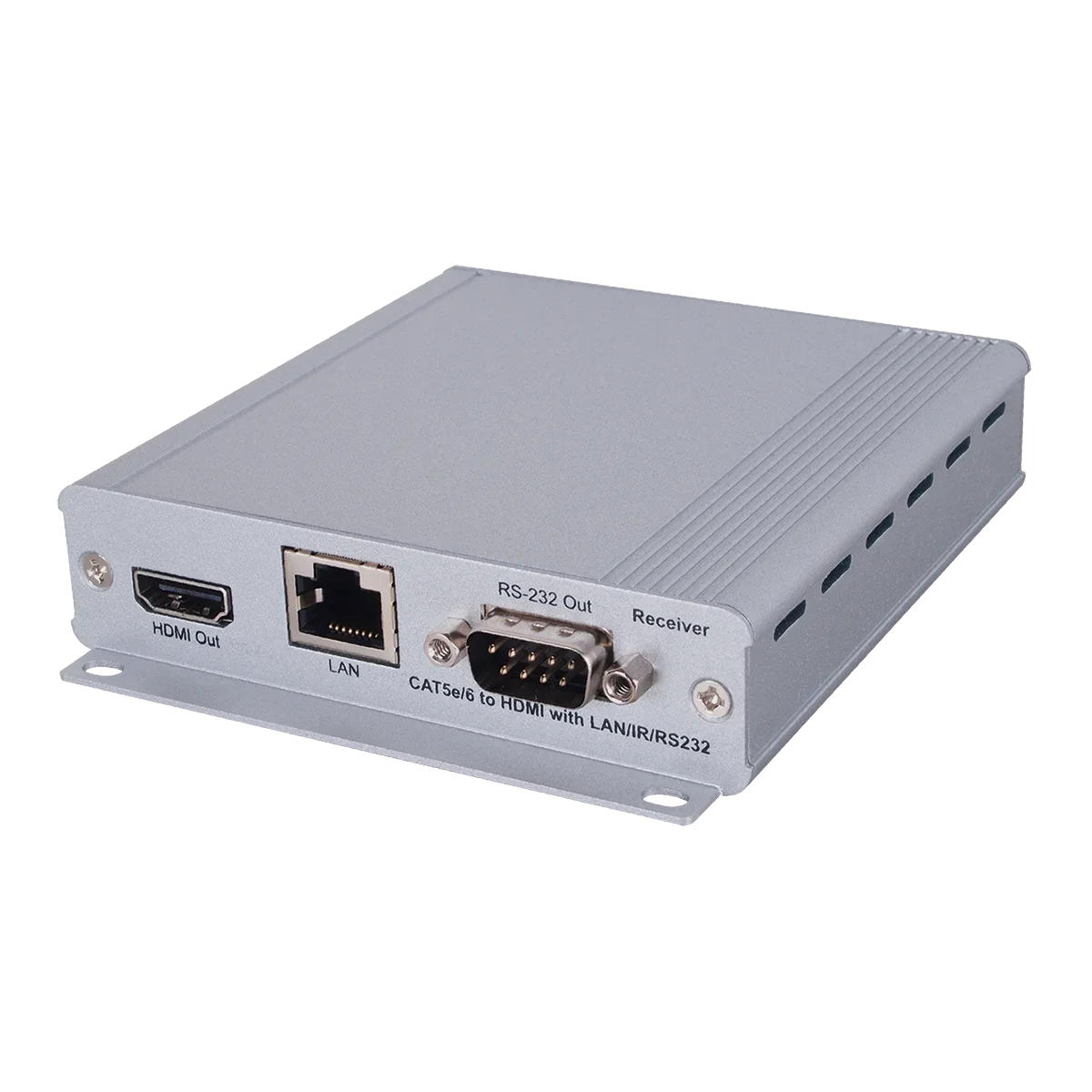

CAT5e/6 to HDMI with LAN/IR/RS-232 (4K@60 420 up to 70M)

RS-232 with baud rate up to 115200/sec, Supports wide range of IR frequency from 30~50kHz, Supports HDMI 3D and 4K x 2K features, Supports HDCP repeater and CEC bypass, Supports distance up to 100m/328ft at 1080p and 70m/229ft at 4K through CAT5e/6/7 cable, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, HDBaseT™ convergence: uncompressed high-defi nition Video and Audio, LAN serving, Bi-directionlal Power over Cable (PoC) and IR/RS-232 Control pass-through

Hersteller-Nr.CH-507RXWBD
HerstellerCypress Technology

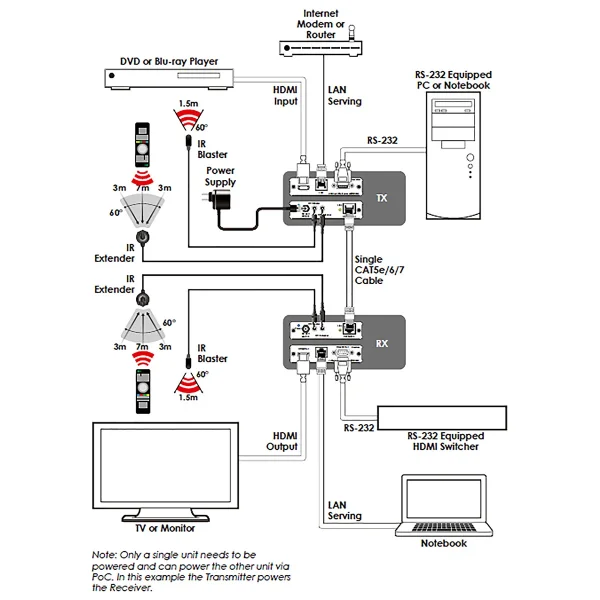

The HDMI over CAT5e/6/7 Transmitter and Receiver set can send uncompressed video/audio and IP data over an single run of CAT5e/6/7 cable up to 100m/328ft at 1080p and 70m/229ft at 4K. It has the added benefi t of control through the built-in RS-232 pass-through and 2-way IR control and a LAN serving connection. Additionally, it has bi-directional Power over Cable (PoC) functionality that allows for greater fl exibility in installations.

Interfaces

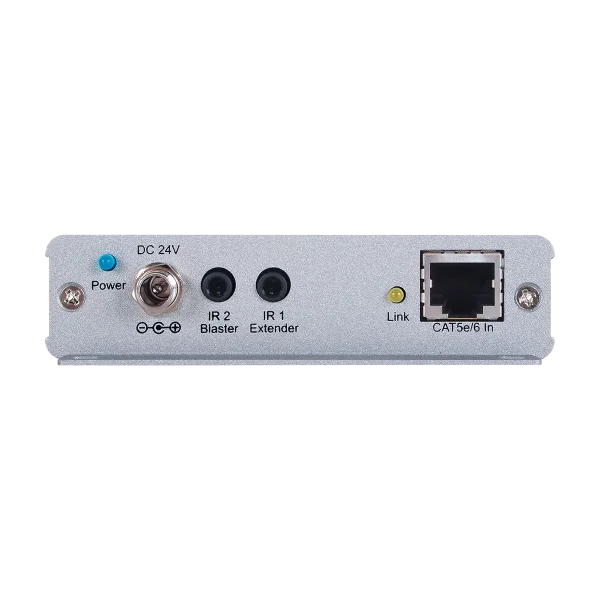

Input Port
  • HDBaseT (RJ-45)
  • IR Extender (3.5mm)

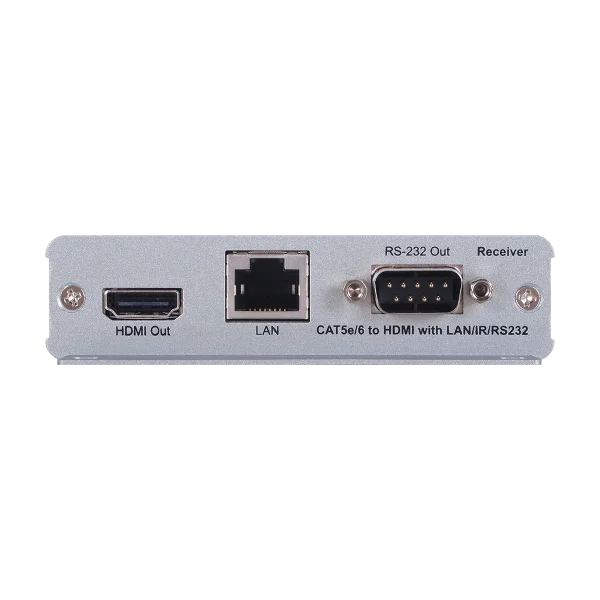

Output Port
  • HDMI(Type-A)
  • LAN(RJ-45)
  • RS-232(DE-9)
  • IR Blaster(3.5mm)
Video
HDMI Compliance
  • HDMI2.0 (DVI 1.0)
HDCP Compliance
  • HDCP2.x 2.2
Input Signal Types
  • 4K@60 YUV 4:2:0
Output Signal Type
  • 4K@60 YUV 4:2:0
Resolutions
Maximum Input HDBaseT
  • 4096×2160p@60 YUV 4:2:0
Maximum Output HDMI
  • 4096×2160p@60 YUV 4:2:0
Power
Power Supply
  • 24 V/1.25 A DC (US/EU Standards, CE/FCC/UL certifi ed)
Power Consumption
  • 13 W
Enclosure
Chassis Material
  • Aluminum
Chassis Color
  • White
Dimensions (W×H×D)
  • 102 mm ×25 mm ×120 mm
Weight
  • 256g
Field Firmware Update


Interface
  • PCB on board, uses RS232
Ordering Information
Model No. Product Description
CH-507RXWBD
  • CAT5e/6/7 to HDMI with LAN/IR/RS-232
CH-507TXWBD
  • HDMI to CAT5e/6/7 with LAN/IR/RS-232

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
