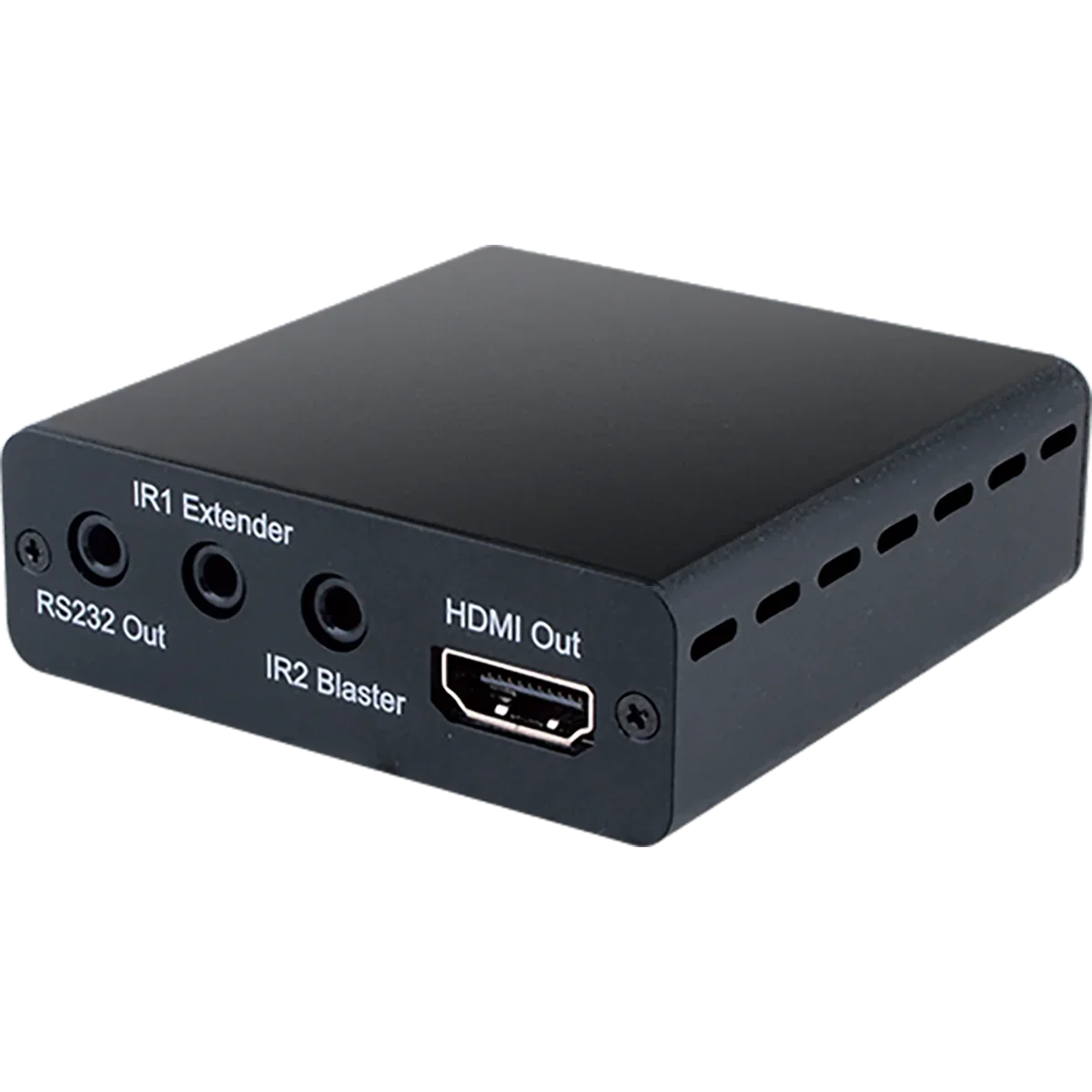

CH-506RX
HDMI including 3D and 4K2K (Ultra HD) support, HDCP and DVI compliant, Supports HDCP repeater and CEC functions, Simultaneous transmission of uncompressed video, audio and data over a single Cat.5e/6 / 7 cable up to 100m/328ft at 1080p and 70m/230ft at 4K, Supports HD resolutions up to 1080p@60Hz/36-bit and Ultra HD (4K2K), Audio support up to LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio, Supports HDBaseT Technology including 2-Way IR and RS-232, Installation friendly
| Hersteller-Nr. | CH-506RX |
| Hersteller | Cypress Technology |

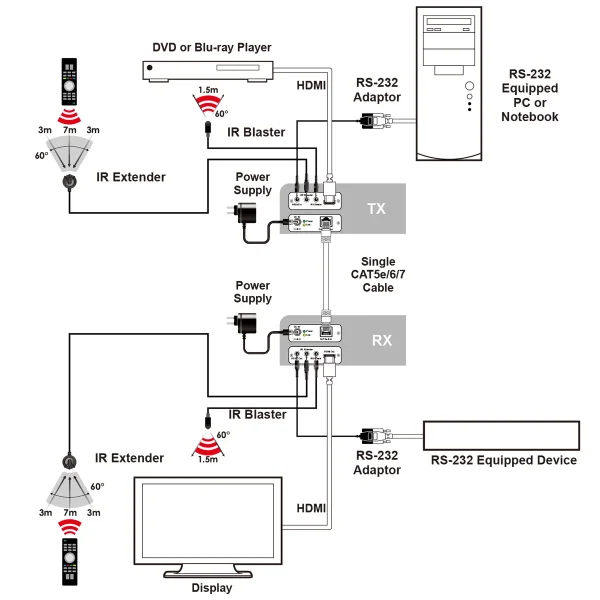

This HDBaseT™ HDMI over Single CAT5e/6/7 Transmitter and Receiver Set can send uncompressed audio/video over a single run of CAT5e/6/7 cable up to 100m (1080p) and has the added benefit of control through the built-in RS-232 and 2-way IR.
|
Interfaces |
|
|
Input Port |

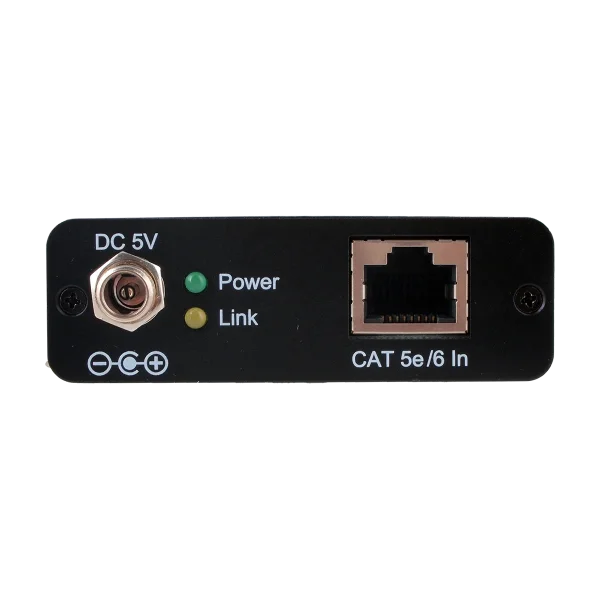

TX 1×HDMI 1×IR Extender 1×RS-232 RX 1×CAT5e/6 1×IR Extender |
|
Output Port |

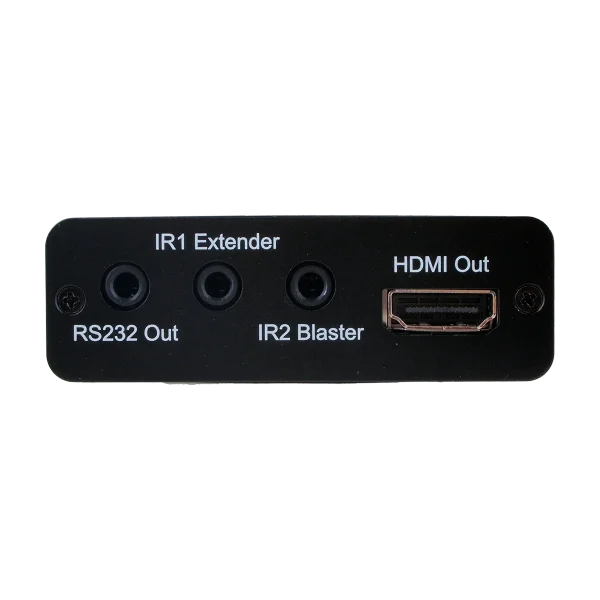

TX 1×CAT5e/6 1×IR Blaster RX 1×HDMI 1×RS-232 1×IR Blaster |
|
Power |
|
|
Power Consumption |
3 W (TX), 6 W (RX) |
|
Enclosure |
|
|
Chassis Material |
Aluminum |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
71 mm (W)×79 mm (D)×23 mm (H) |
|
Weight |
240 g (TX), 245 g (RX) |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
CH-506TX & RX |
HDMI over CAT5e/6/7 Transmitter & Receiver |
