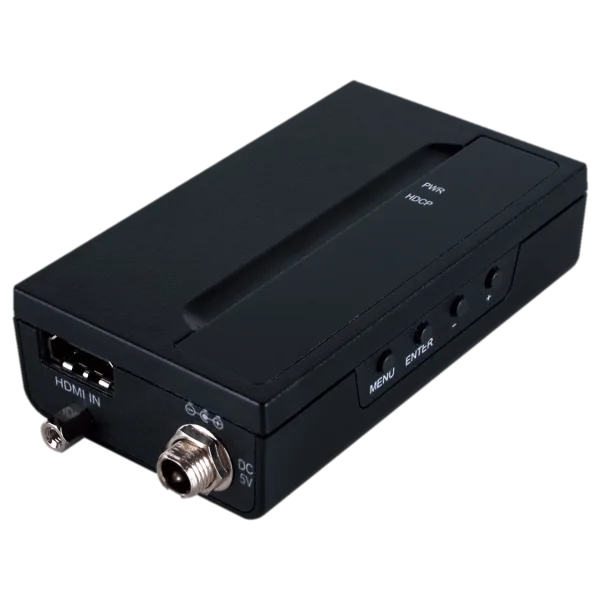

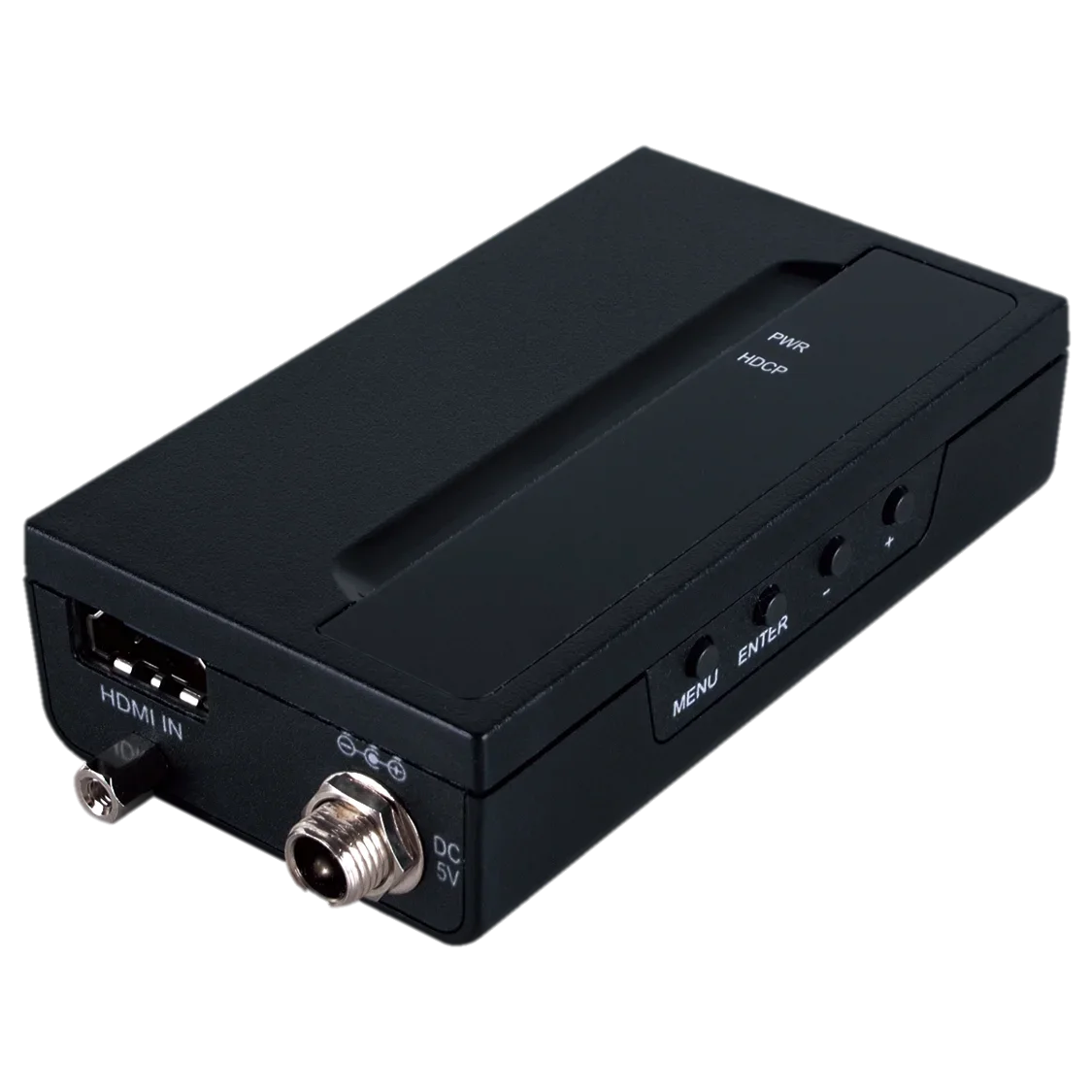

Compact HDMI to HDMI Scaler Box

Manual adjustments for contrast, brightness, hue and saturation are achievable, Free run output mode that provides stable timing once no video input is present , Maximum pixel rate 165Mhz on output and 225Mhz on input. Support resolution up to 1920x1200@60RB and 1080P@60 , Support LPCM, Bitstream and HD Bitstream audio , Support audio mute and maximum audio sampling rate of 192kHz , Supports color space, frame rate and deep color conversion , Supports CEC bypass , Supports Native EDID copies from sink device such as TV , Easily firmware update via USB in field

Hersteller-Nr.	CP-302MN
Hersteller	Cypress Technology

The compact HDMI to HDMI Scaler box is designed to scale HDMI sources, either HD or PC resolution, to an alternative HDMI resolution (HD or PC). Both of maximum support input and output resolution is up to 1920 x 1200. The HDMI, HDCP and DVI are compliant which is perfect solution for the integration of sources where resolution and/or resolution type requires conversion. The video contrast, brightness, hue and saturation are able to be adjusted manually.

Interfaces

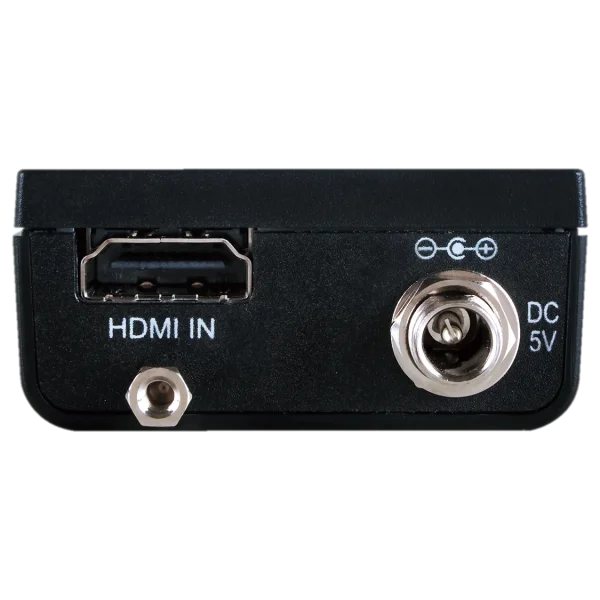

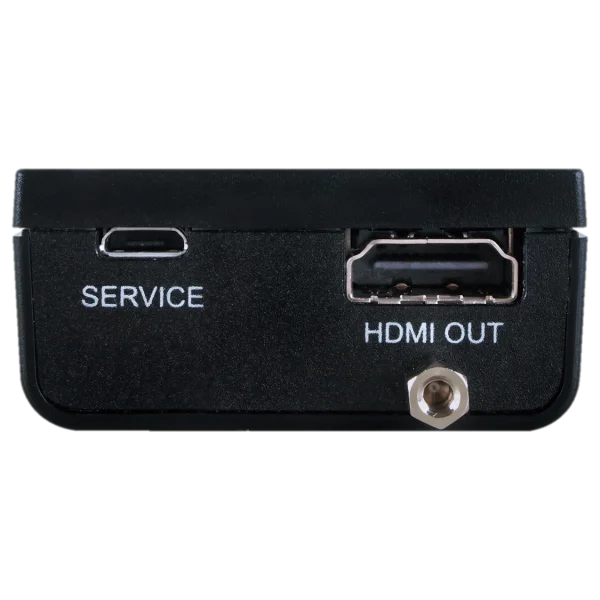

Input Port	1 HDMI 1 Mini USB (Service only)
Output Port	1 HDMI

Video
HDMI Compliance	HDMI 1.3 (DVI 1.0)
HDCP Compliance	1.4
Input Signal Type	1080p@ 12bit
Output Signal Types	1080p@ 8bit

Resolutions
Maximum Input	HDMI	1080p
Maximum Output	HDMI	1080p

Enclosure
Chassis Material	Plastic
Chassis Color	Black
Dimensions (W×H×D)	51 mm x 22.5 mm x 98 mm [Case Only] 50 mm x 22.5 mm x 85 mm [All Inclusive]
Weight	75g

Power
Power Supply	5V / 2.6A
Power Consumption	2.42 W

Field Firmware Update
Interface	USB

Ordering Information
Model No.	Product Description
CP-302MN	Compact HDMI to HDMI Scaler Box

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
