CUSB-V605H
Klicken zum Vergrößern
Cypress Technology

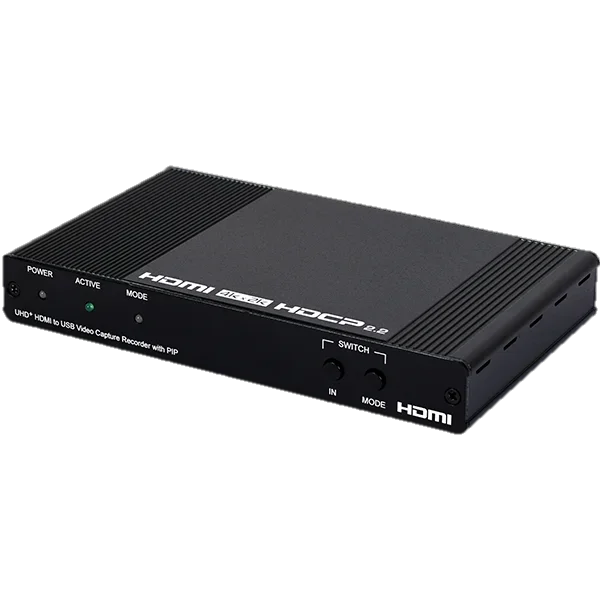

CUSB-V605H

2 inputs(input 1 resolution up to 4K@60, input 2 up to 1080p@60), 1 bypass output (Follow source up to 4K@60) , USB3.0 (Type-B to Type-A) connected to PC for data transmission. , 3.5mm phone jack as Input of speaker. , Mode select button is designed for changing the layout of video sources, which allow user to define on tool. , Audio auto switch for priorities audio insertion or default priority. , Audio Mixer for provide flexible audio feature for mixing analog mic in with HDMI input audio. , PC software available for detail control and setting.

Hersteller-Nr.CUSB-V605H
HerstellerCypress Technology
This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 18Gbps (600MHz) 4K UHD with HDR (via the bypass path) while simultaneously streaming the audio and video signal at 1080p to a USB connected PC for capture or re-broadcast. Also with add up input special video timing stabilization feature helps to ensure that the USB capture stream won’t lock up or drop, even if the HDMI input source is intermittent or disconnected. This makes your live streaming stable and non-stop. USB capture is accomplished using the UAC (USB Audio Class) and UVC (USB Video Class) standards, allowing the unit to support most common video capture, chat, or streaming software, including Free OBS (Open Broadcaster Software) streaming software which is available for Windows PC, macOS and Linux. The unit is powered directly by the USB 3.0 port so an external power supply is not required (A Y-cable is required when connected via USB 2.0 in order to deliver the necessary power). Availability and access to the controllable features of the unit depend on the capture software used.
Interfaces
Input Port
  • 2 HDMI (Type A)
  • 1 Analog(3.5mm)
Output Port
  • 1 HDMI (Type A)
  • 1 USB 3.0(Type B)
Bi-directional Port
Control I/O
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.2 bypass
Input Signal Types
  • 4K@60 8bit YUV 4:4:4
Output Signal Type
  • 4K@60 8bit YUV 4:4:4(HDMI)
    1080p@60(USB capture)
Resolutions
Maximum Input HDMI
  • 4096×2160p@60 YUV 4:4:4
Maximum Output HDMI
  • 4096x2160p@60 YUV 4:4:4
Audio
 HDMI
  • LPCM (8 Channels), Bitstream, High Bit Rate Bitstream
Line In
  • 1 Vrms
    S/N Ratio: > 80dB (1kHz with 0dBFS)
Power
Power Supply
  • USB powered
Power Consumption
  • TBD
Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 180mm×25mm×108mm [Case Only]
  • 180mm×25mm×111.6mm [All Inclusive]
Weight
  • 916g
Field Firmware Update
Interface
  • PC
Ordering Information
Model No. Product Description
CUSB-V605H
  • UHD+ HDMI to USB Video Capture with PIP

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
