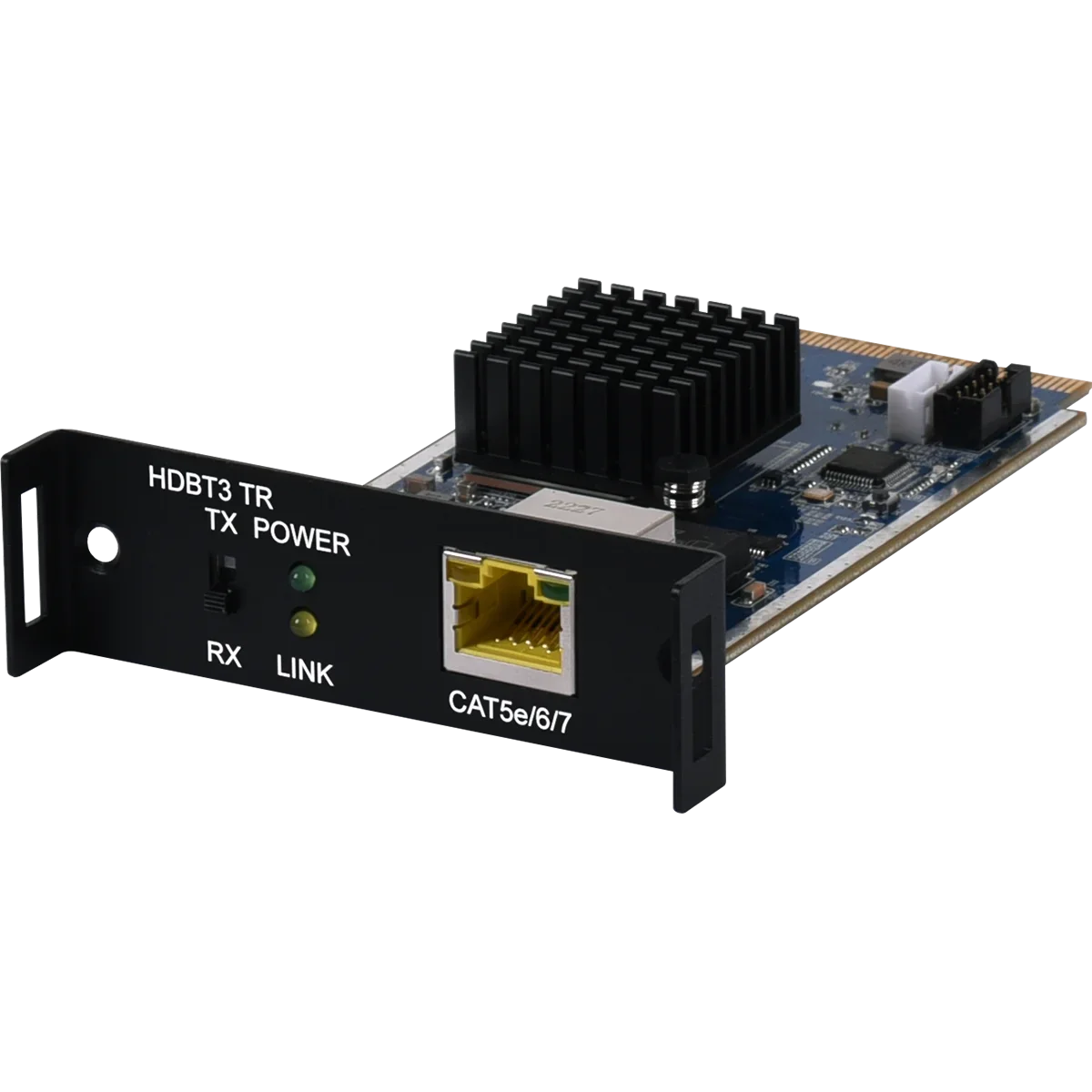

HDBaseT Transceiver Module (4K@60 444 up to 40M)
HDBaseT extends video and audio over a single Cat. 5e/6/7 cable and can reach distances up to 40m/131ft, Supports up to 4K UHD+ (18Gbps, 4K@60Hz 4:4:4, 8-bit) video input and output over both HDMI and HDBaseT, Supports HDCP repeater and CEC bypass, Supports Deep Color input and output up to 12-bit and 10-bit and 12-bit HDR (High Dynamic Range) input/output, Supports pass-through of many audio formats including LPCM (up to 8 channels), Bitstream, and HD Bitstream, HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant
| Hersteller-Nr. | SDM-E301TR |
| Hersteller | Cypress Technology |
This HDBaseT Transceiver Module uses HDBaseT 3.0, the newest generation of HDBaseT technology, and is the perfect solution for extending full bandwidth (18Gbps) HDMI 2.0, 4K@60Hz (4:4:4, 8-bit) video with HD audio via a single run of Cat. 5e/6/7 cable over distances of up to 40 meters. Every Transceiver can be configured to function as either a transmitter or a receiver, enhancing the flexibility of any installation. This extender complies with the advanced HDCP 2.2 and HDMI 2.0 standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x standards.
The module's design is compatible with a variety of products that have a standard CYP Module Slot for input or outputting signals, offering increased workability to customers.
|

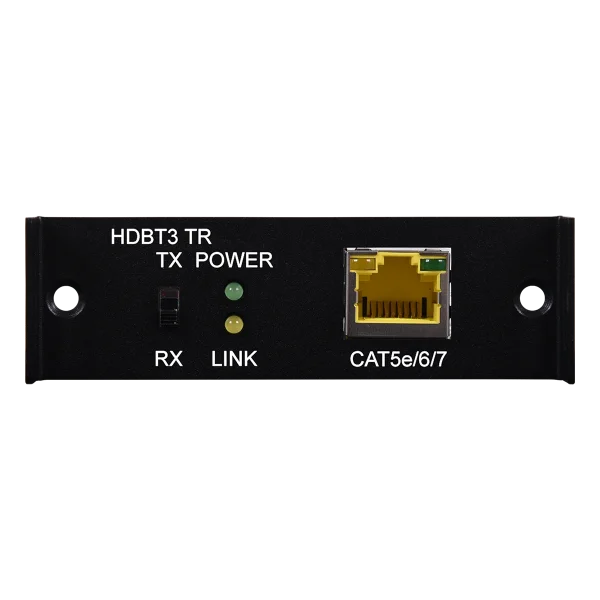

Interfaces |
|
|
Bi-directional Port |
1×HDBaseT (RJ-45) |
|
Control |
1×Slide Switch |
|
Video |
||
|
HDMI Compliance |
HDMI 2.0 (Edge Connector) |
|
|
HDCP Compliance |
2.2 |
|
|
Input Signal Type |
4K@60 YUV 4:4:4 |
|
|
Output Signal Type |
4K@60 YUV 4:4:4 |
|
|
Interface |
Resolutions |
|
|
Maximum Input |
HDMI |
4096×2160p@60Hz YUV 4:4:4 |
|
HDBaseT (RJ-45) |
4096×2160p@60Hz YUV 4:4:4 |
|
|
Maximum Output |
HDMI |
4096×2160p@60Hz YUV 4:4:4 |
|
HDBaseT (RJ-45) |
4096×2160p@60Hz YUV 4:4:4 |
|
|
Audio |
|
|
HDMI |
Bypass |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
128mm×25mm×75mm [Case Only] 128mm×25mm×75mm [All Inclusive] |
|
Weight |
72g |
|
Field Firmware Update |
|
CPLUS-V32SDM or CSC-VPR-3421 |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
SDM-E301TR |
HDBaseT Transceiver Module |
|
SDM-E201T |
HDBaseT Transmitter Module |
|
SDM-E201R |
HDBaseT Receiver Module |
|
CSC-VPR-3421 |
4K60 HDMI Multiview Processor with Multi-Function Extension Slot |
|
CPLUS-V32SDM |
4K60 Multiformat Switcher with USB Ethernet Hub |
