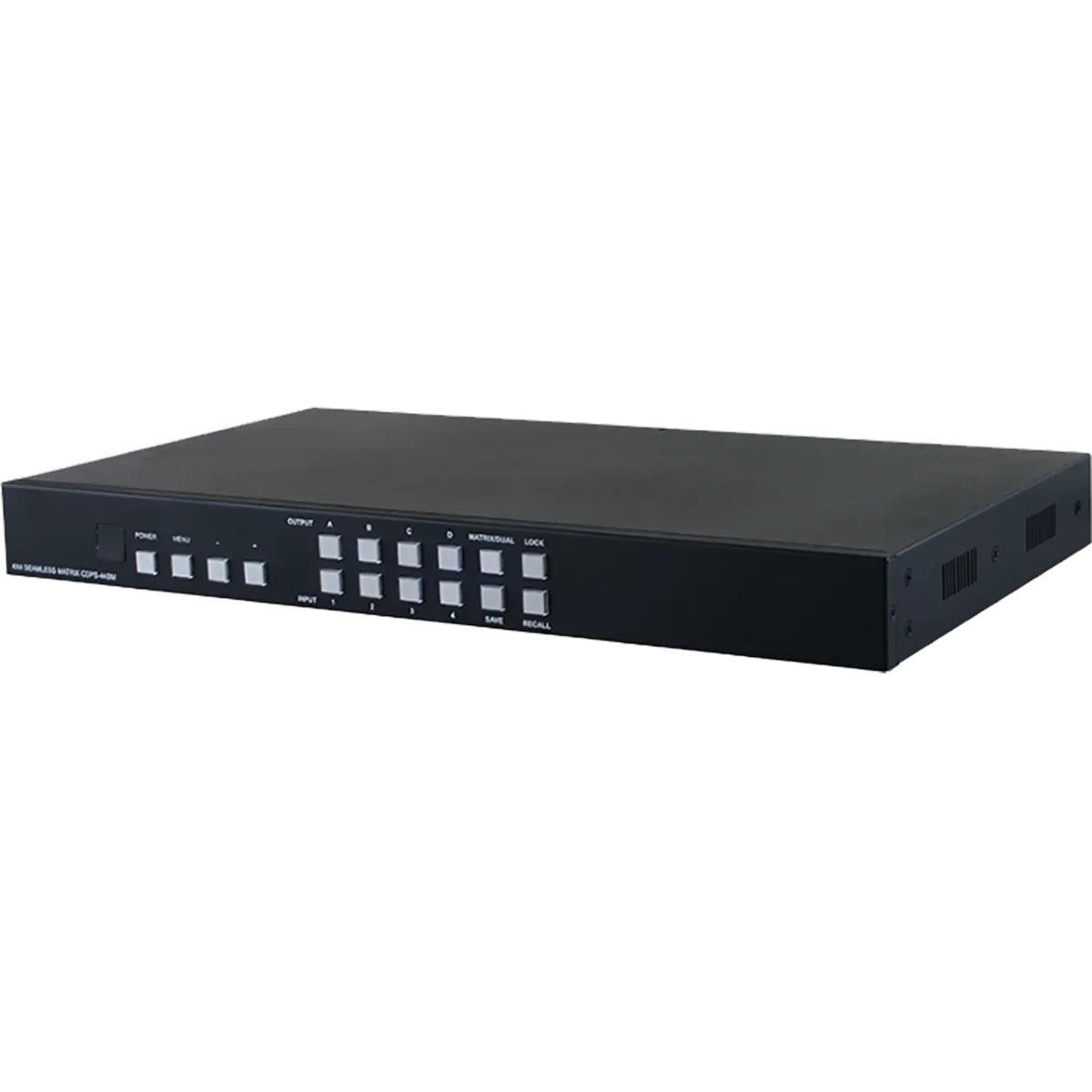

HDMI 4x4 Seamless Matrix Switcher
Klicken zum Vergrößern
Cypress Technology

HDMI 4x4 Seamless Matrix Switcher

Seamless switching, Supports four different modes: Matrix mode/ Dual mode/ Quad / TV Wall mode--Matrix mode: Seamless switching 4 x 4.--Dual mode: 2 sources PiP or PoP on both outputs--Quad mode: all sources in quad view on one display--TV Wall mode: Can output any source to 4 displays (2 by 2 Video wall) with adjustable Bezel Correction, Supports OSD, RS232, Telnet, WebGUI, Remote control and on-panel controls, Input resolutions support VGA~WUXGA and 480i~1080p , Output resolutions support 480p~1080p, Supports different input resolution and output resolution selectable from OSD menu. The factory default value for the output resolution is 720p@60Hz/ 2CH LPCM, Audio supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/ Dolby TruHD & DTS-HD

Hersteller-Nr.CDPS-44SM
HerstellerCypress Technology

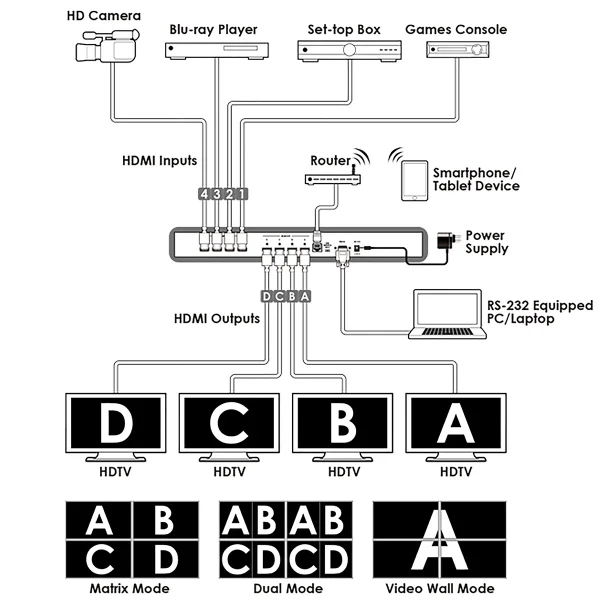

The 4 by 4 HDMI Seamless Matrix Switcher allows the signal from 4 different input sources to be freely selected and arranged on 4 displays (TV or monitor), providing four output modes (Matrix, Dual PoP/ PiP, Quad and TV Wall) for various applications. Matrix mode routes the source signals to output displays as regular matrix does, Dual mode allows 2 sets of 2 selected sources to show on designate output displays with PoP and PiP method and TV Wall mode extends a selected source to display on all 4 output displays as one. The device supports video timings up to WUXGA@60RB and 1080p@60Hz, audio format up to 7.1CH LPCM at 192kHz sampling rate based on input source EDID. For all the opera-tion/control can be done through IR, remote control, Telnet, WebGUI, RS-232 or front panel buttons.
Interfaces
Input Port
  • 4 HDMI (Female type)
  • 1 USB (Service only)
Output Port
  • 4 HDMI (Female type)
Video
HDMI Compliance
  • HDMI 1.3 (DVI 1.0)
HDCP Compliance
  • HDCP 1.4
Input Signal Type
  • 1080p60 12-bit
Output Signal Types
  • 1080p60 12-bit
Resolutions
Maximum Input

HDMI
  • 1920×1080p@60
  • 1920×1200p@60RB
Maximum Output  HDMI
  • 1920×1080p@60
  • 1920×1200p@60RB
Enclosure
Chassis Material
  • Aluminum
Chassis Color
  • Black
Dimensions (W×H×D)
  • 436mm x 44mm x 247mm
Weight
  • 2,200g
Power
Power Supply
  • 12V/3A DC (US/EU standards, CE/FCC/UL certified)
Power Consumption
  • 15W
Field Firmware Update


Interface
  • USB
Ordering Information
Model No. Product Description
CDPS-44SM
  • HDMI 4x4 Seamless Matrix Switcher

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
