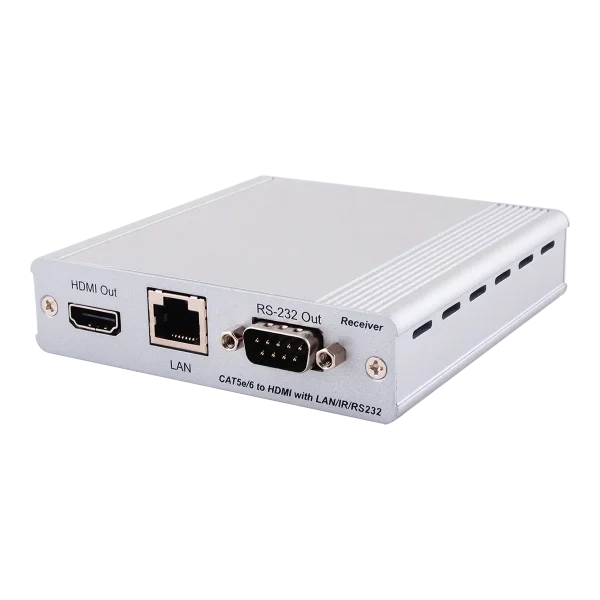

HDMI over CAT5e/6/7 Receiver with 24V PoC and LAN Serving
HDMI 1.4 with 3D, 4k2k support, HDCP & DVI Compliant, Supports CEC bypass, Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6 cable, Uncompressed video 1080p, 60Hz, 36-bit, Audio support up to 7.1CH & Dolby TrueHD, DTS-HD Master Audio, HDBaseT 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-232)
| Hersteller-Nr. | CH-507RX |
| Hersteller | Cypress Technology |

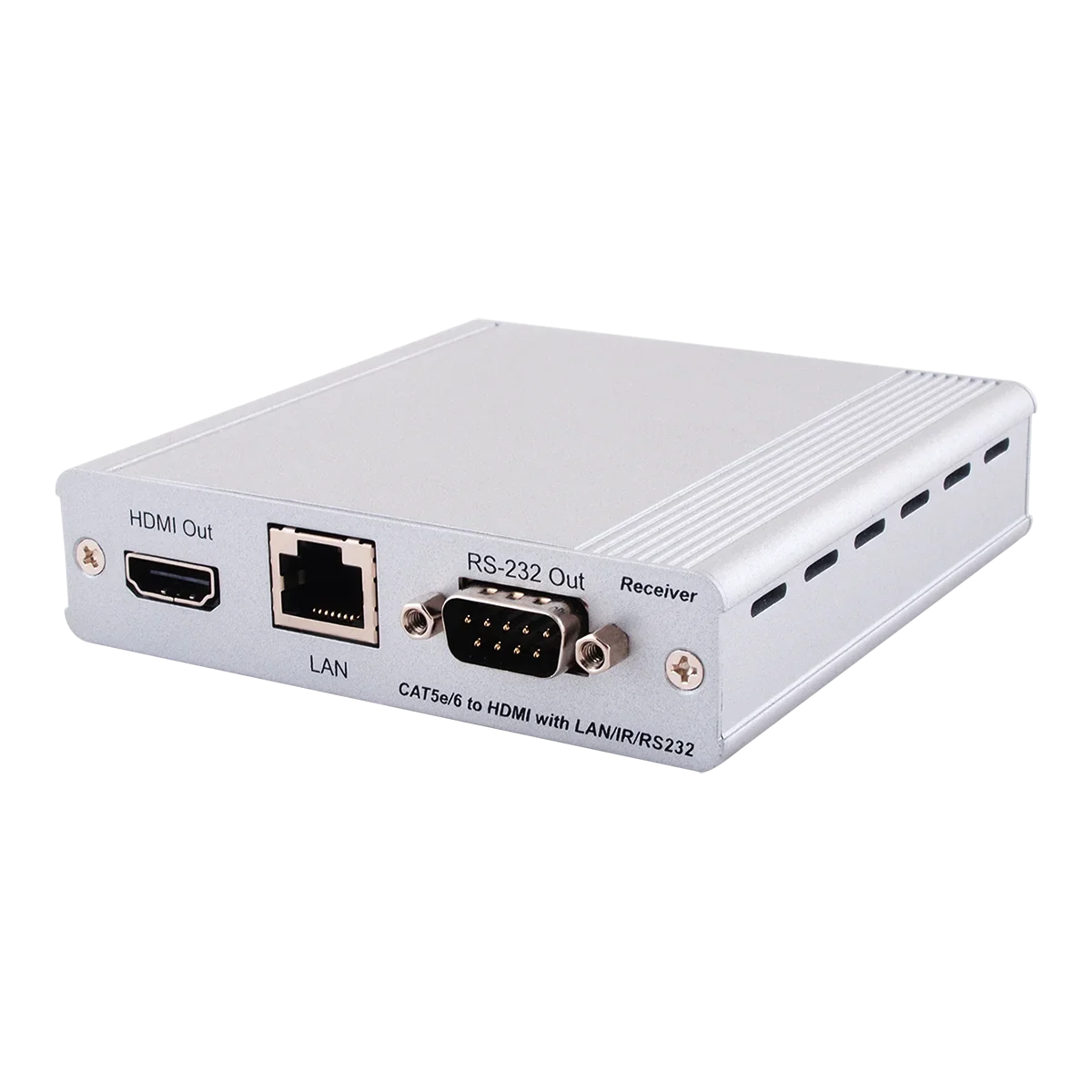

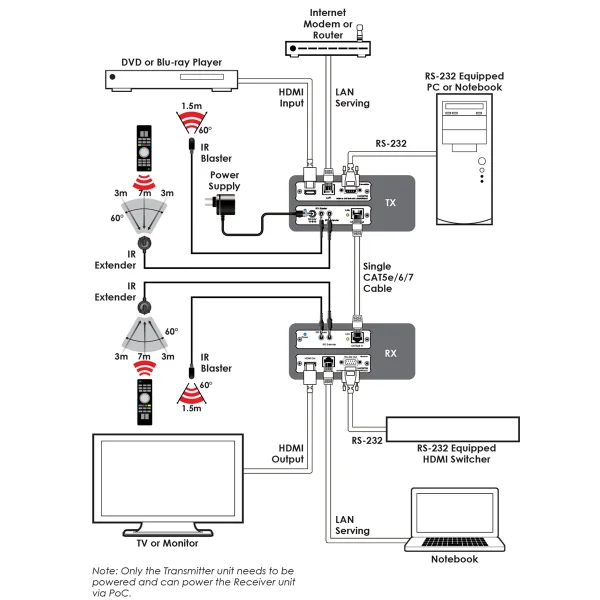

The CH-507TX & RX set allows uncompressed HDMI™ signals and IP data to be transmitted over a single CAT5e/6/7 cable. This solution has the added features of built-in RS-232, 2-way IR control and Power over Ethernet all over the single CAT5e/6/7 cable. These combined HDMI and control signals can be transmitted up to lengths of 100 meters.
|
Interfaces |
|
|
Input Port |
1 HDMI (Type-A) (TX), 1 RJ45 (RX) |
|
Output Port |
1 HDBT(RJ45) (TX), 1 HDMI (RX) |
|
Control I/O |

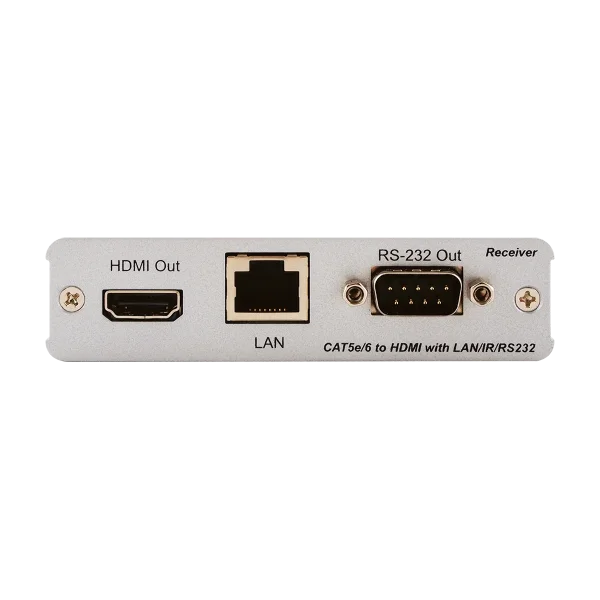

1 IR Extender [3.5mm] (both TX and RX) 1 IR Blaster [3.5mm] (both TX and RX) 1 RS232 DE-9 (female on TX, male on RX) 1 LAN (RJ-45) (both TX and RX) |
|
Video |
||
|
HDMI Compliance |
1.x |
|
|
HDCP Compliance |
1.x |
|
|
Input Signal Types |
HDMI 4K@60 8bit YUV 4:2:0 |
|
|
Output Signal Types |
HDBT 4K@60 8bit YUV 4:2:0 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 YUV 4:2:0 |
|
Maximum Output |
HDBT |
4096×2160p@60 YUV 4:2:0 |
|
Audio |
|
|
HDMI |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
|
HDBT |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
|
Power |
|
|
Power Supply |
24V/1.25A |
|
Power Consumption |
13W (Full load) |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Silver |
|
Dimensions (W×H×D) |
102 mm (W)×113 mm (D)×25 mm (H)/TX 102 mm (W)×107 mm (D)×25 mm (H)/RX |
|
Weight |
252 g/TX, 256 g/RX |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
CH-507TX/RX |
HDMI over CAT5e/6/7 Transmitter and Receiver |
