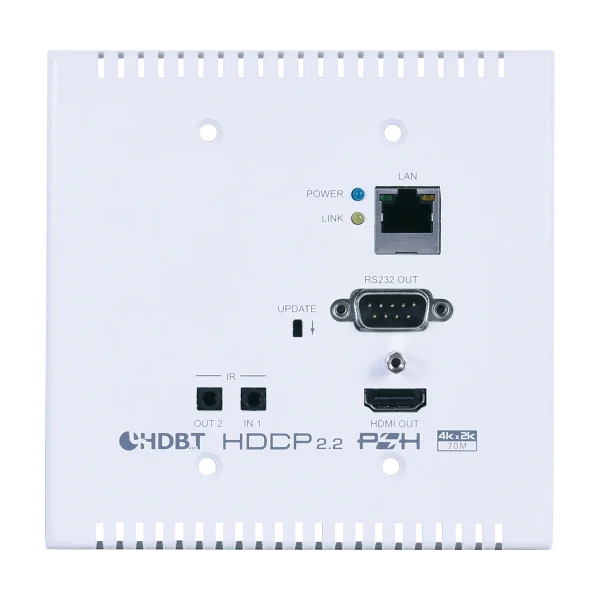

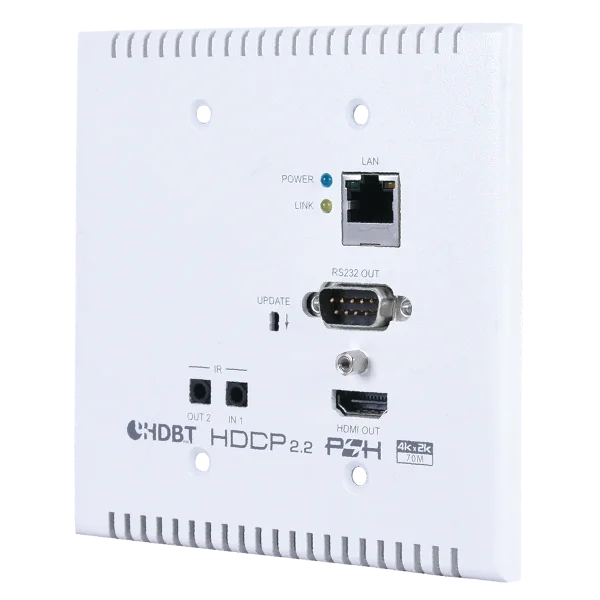

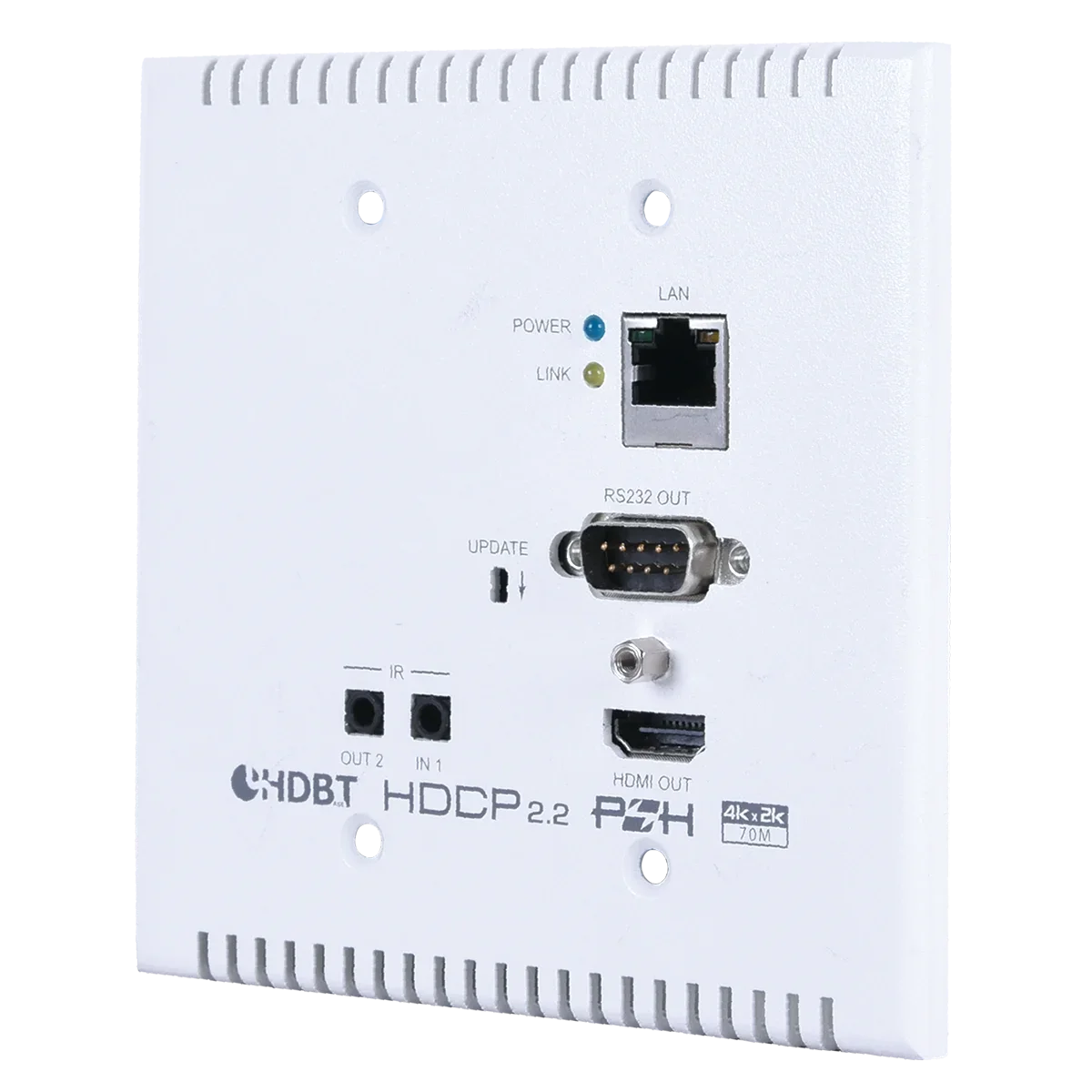

HDMI over Cat.5e/6/7 Wall-Plate Extender with LAN/ IR/RS-232/PoH (4K@60 420 up to 70M)
HDMI with 3D & 4K support. DVI signal compliant, Supports CEC bypass, Simultaneous transmission of uncompressed video, audio and data over a single 100m/328ft Cat.5e/6/7 cable, 5Play™ convergence: HDMI, LAN, PoH & Control (IR & RS-2232), Supports resolutions up to 4K@50/60Hz (YUV 4:2:0) and 21:9 aspect ratio, Supports standard 48V PoH from Transmitter (PSE) to Receiver (PD, Supports HDMI I/O cable distance up to 5m at 4K@50/60Hz (YUV 4:2:0, Installation friendly wall/table mount case design
| Hersteller-Nr. | CH-1527RXWPUS |
| Hersteller | Cypress Technology |

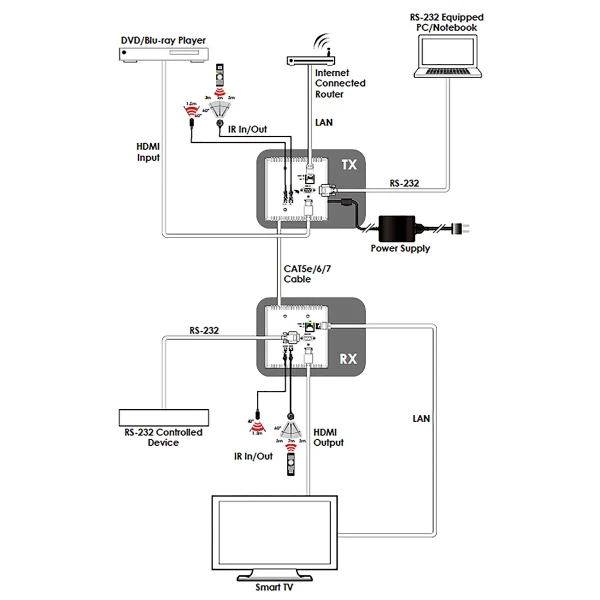

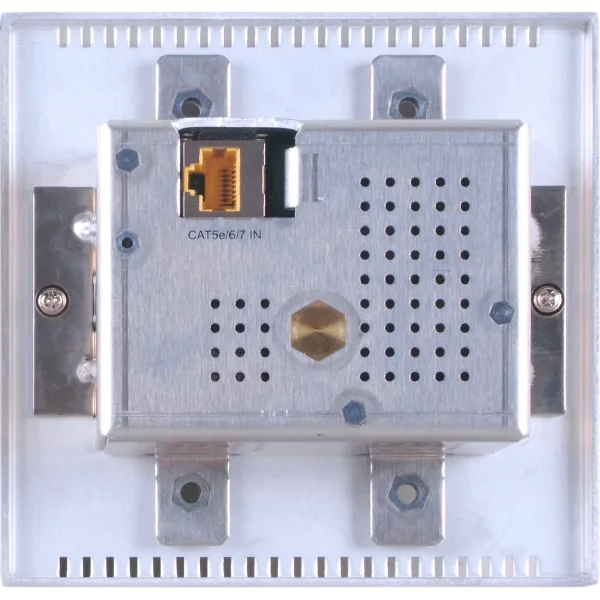

This HDMI over single Cat.5e/6/7 Transmitter and Receiver set can send uncompressed, high resolution, video/audio over a single cable up to a distance of 100 meters. In addition to the audio and video capabilities, it can also bidirectionally transmit RS-232 and IR control signals as well as extending your local LAN to the display device US 2 gang design allowing install on AC outlet.
The Receiver (PD) is powered by the 48V PoH (Power over Ethernet) function of the Transmitter (PSE), allowing for greater flexibility in installations.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input |
HDBaseT6/7 |
|
| Maximum Output | HDMI |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CH-1527RXWPUS |
|
| CH-1527TXWPUS |
|
