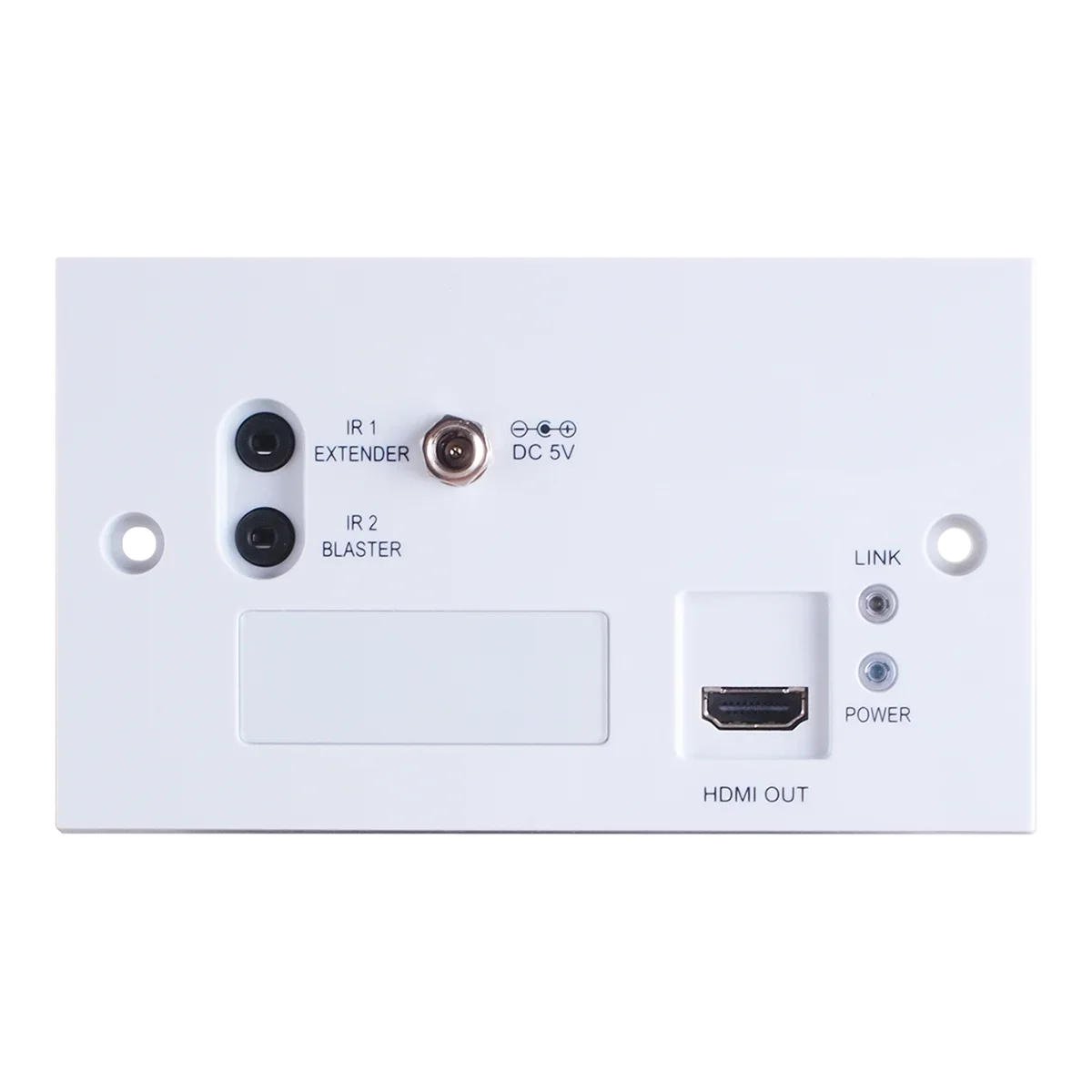

HDMI over HDBaseT Wallplate Receiver with IR (2 Gang UK) (4K@60 420 up to 60M)
HDMI with 3D & 4Kx2K supported, HDCP and DVI compliant, Supports data rate from 250Mbps up to 3Gbps, Supports wide range of PC resolutions from VGA to WUXGA and HDTV resolutions up to 4Kx2K (3840x2160@30Hz and 4096x2160@24Hz), Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission (32-192kHz sample rate), Supports distance up to 60 meters through HDMI to CAT5e/6/7 Transmitter, Supports Bi-directional IR control, Wall plate design and installation friendly
| Hersteller-Nr. | CH-514RXWPL |
| Hersteller | Cypress Technology |

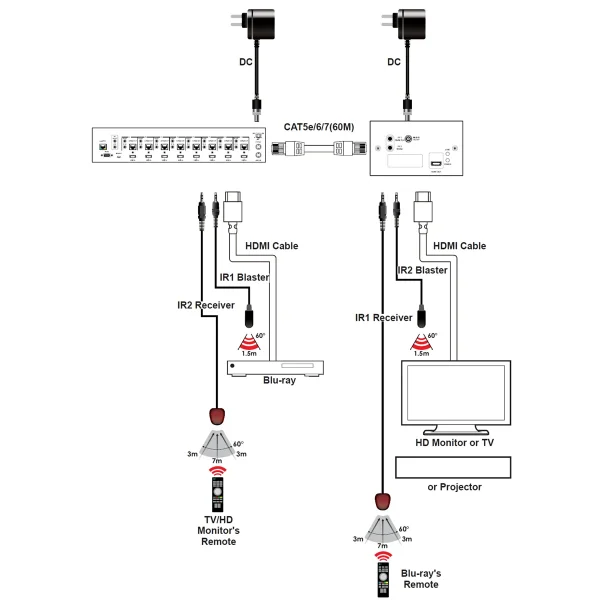

The HDMI over CAT5e/6/7 Wall plate Receiver make your home or office more efficient. This Receiver can receive uncompressed Video/Audio and Bi-directional IR over 60 meters from Transmitter. It is freely to connect with compatible Transmitter through CAT5e/6/7 for data transmission.
|
Video Bandwidth |
300Mbps/10.2Gbps |
|
Input ports |
1 x CAT5e/6/7 1 x IR Extender |
|
CAT5e/6/7 Input Cable Distance |
Up to 60 meters |
|
Output port |
1 x HDMI, 1 x IR Blaster |
|
Resolution |
Up to 4Kx2K (3840x2160@30Hz/4096x2160@24Hz) |
|
IR Frequency |
30 ~50kHz |
|
Power Supply |
5V / 2.6A DC (US/EU standards, CE/FCC/ UL certified) |
|
ESD Protection |
Human-body Model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
|
IR Frequency |
30~50 kHz |
|
Dimensions (mm) |
145.5 (W) x 85.5 (D) x 36.5 (H) |
|
Weight (g) |
154 |
|
Chassis Material |
Plastic |
|
Silkscreen Color |
White |
|
Operating Temperature |
0 °C~40 °C |
|
Storage Temperature |
−20 °C ~ 60 °C/−4 °F~140 °F |
|
Relative Humidity |
20~90 % RH (non-condensing) |
|
Power Consumption |
5W |
