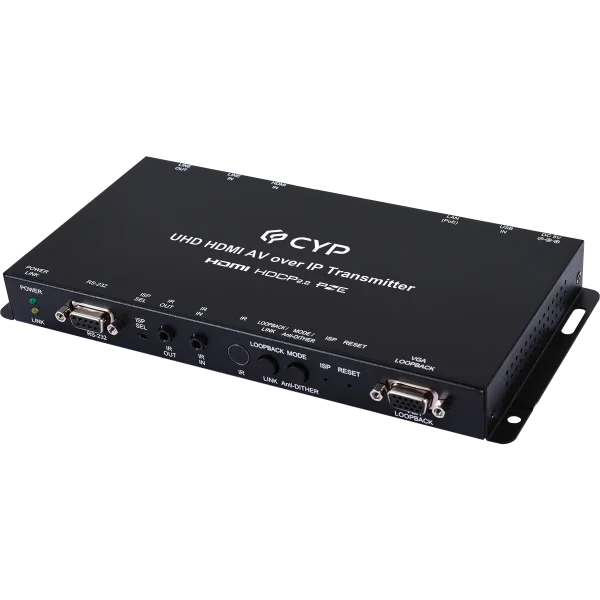

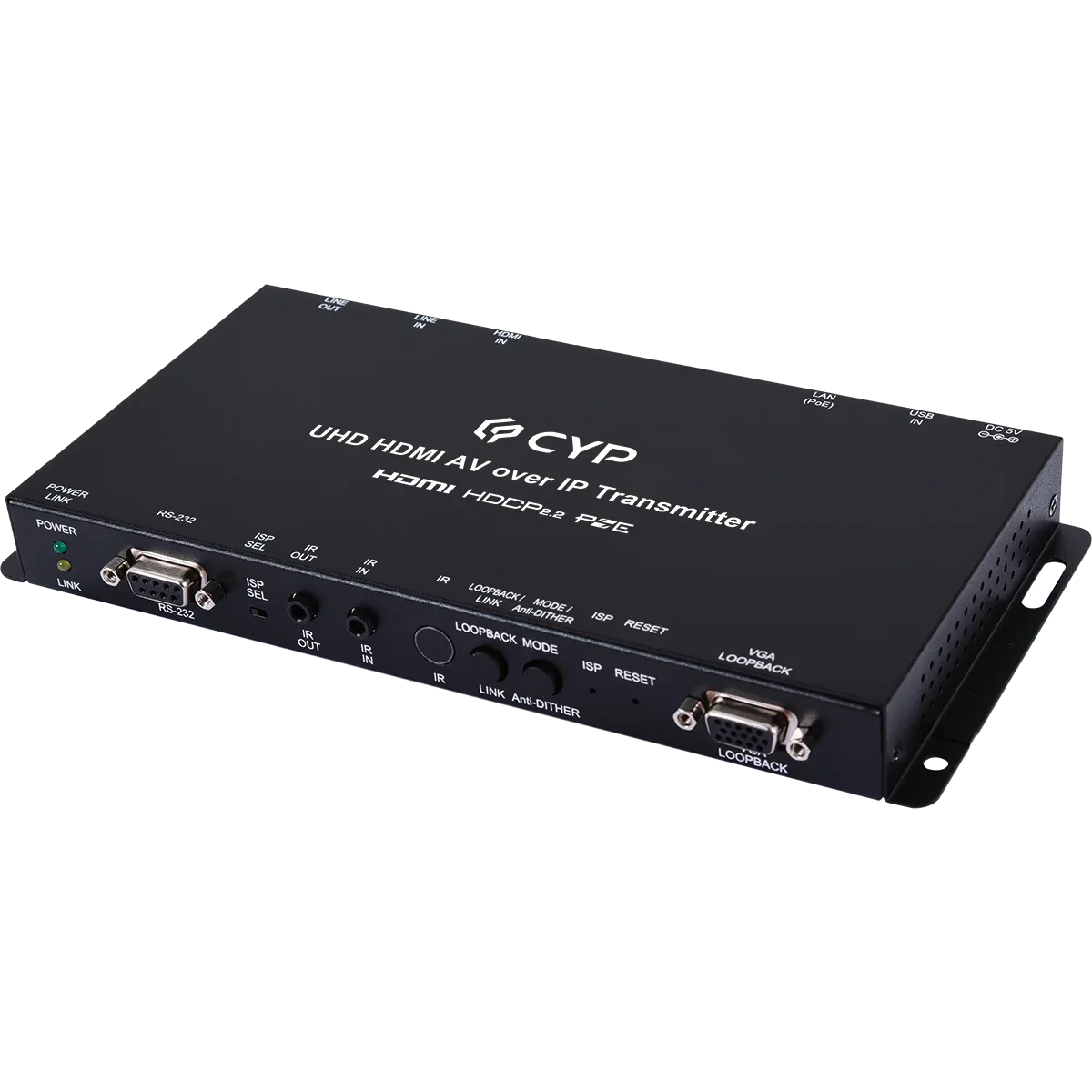

HDMI over IP Transmitter with USB/KVM Extension

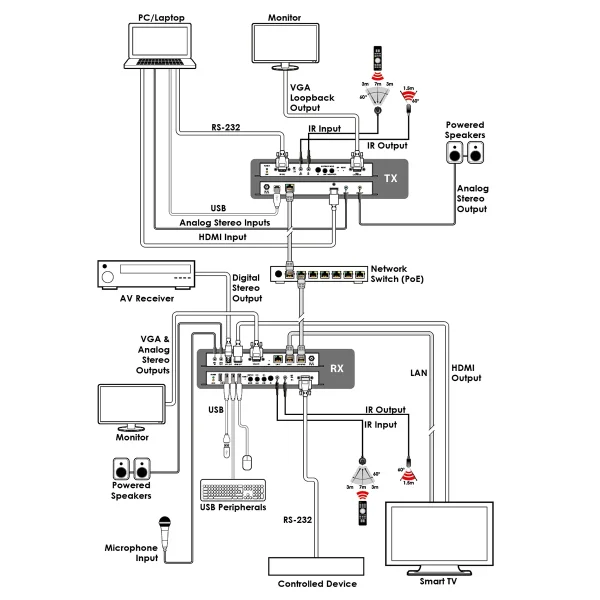

Video, audio and control transmission over TCP/IP in Unicast (point-to-point) or Multicast (single-to-many) modes, Support with 0°, 180°, 270° increments rotation, The analog Line In on the Transmitter sends audio directly to the analog Line Out and is inserted into the HDMI output on connected Receivers, The Mic In on the Receiver sends audio directly to the analog Line Out on the Transmitter, Both Tx and Rx may powered directly by PoE when connected to a Gigabit Ethernet switch that provides PoE (802.3af), Supports USB keyboard, mouse and storage extension and IR ,RS-232 bypass, Unit can be controlled via WebGUI, Telnet, and front panel controls
| Hersteller-Nr. | NAV-U350HTX |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
1 HDMI (Type-A) 1 Unbalanced Stereo (3.5mm) |
|
Output Port |
1 Cat.5e/6/7 (RJ45) 1 Unbalanced Stereo (3.5mm) 1 VGA |
|
Control I/O |
1 USB Type-B 1 IR Extender [3.5mm] 1 IR Blaster [3.5mm] 1 RS232 |
|
Video |
||
|
HDMI Compliance |
2.0 (DVI 1.0) |
|
|
HDCP Compliance |
2.2 |
|
|
Input Signal Types |
4K@60 8-bit YUV 4:2:0 |
|
|
Output Signal Types |
4K@60 8-bit YUV 4:2:0 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 |
|
Maximum Output |
Cat.5e/6/7 |
4096×2160p@60 |
|
VGA |
1920×1200p@60RB |
|
|
Audio |
|
|
Input Signal Types |
HDMI, Unbalanced Stereo |
|
Output Signal Types |
Unbalanced Stereo |
|
Digital Formats |
HDMI 2CH LPCM, 8CH LPCM, Standard Bitstream |
|
Power |
|
|
Power Supply |
5V/2.6A |
|
Power Consumption |
7.15W (Full load) |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×120mm [All Inclusive] |
|
Weight |
660g |
|
Field Firmware Update |
|
WebGUI |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
NAV-U350HTX |
HDMI over IP Transmitter with USB/KVM Extension |
|
NAV-U353RX |
UHD Video over IP RX |
|
NAV-CS7 |
AV over IP Master Controller |
