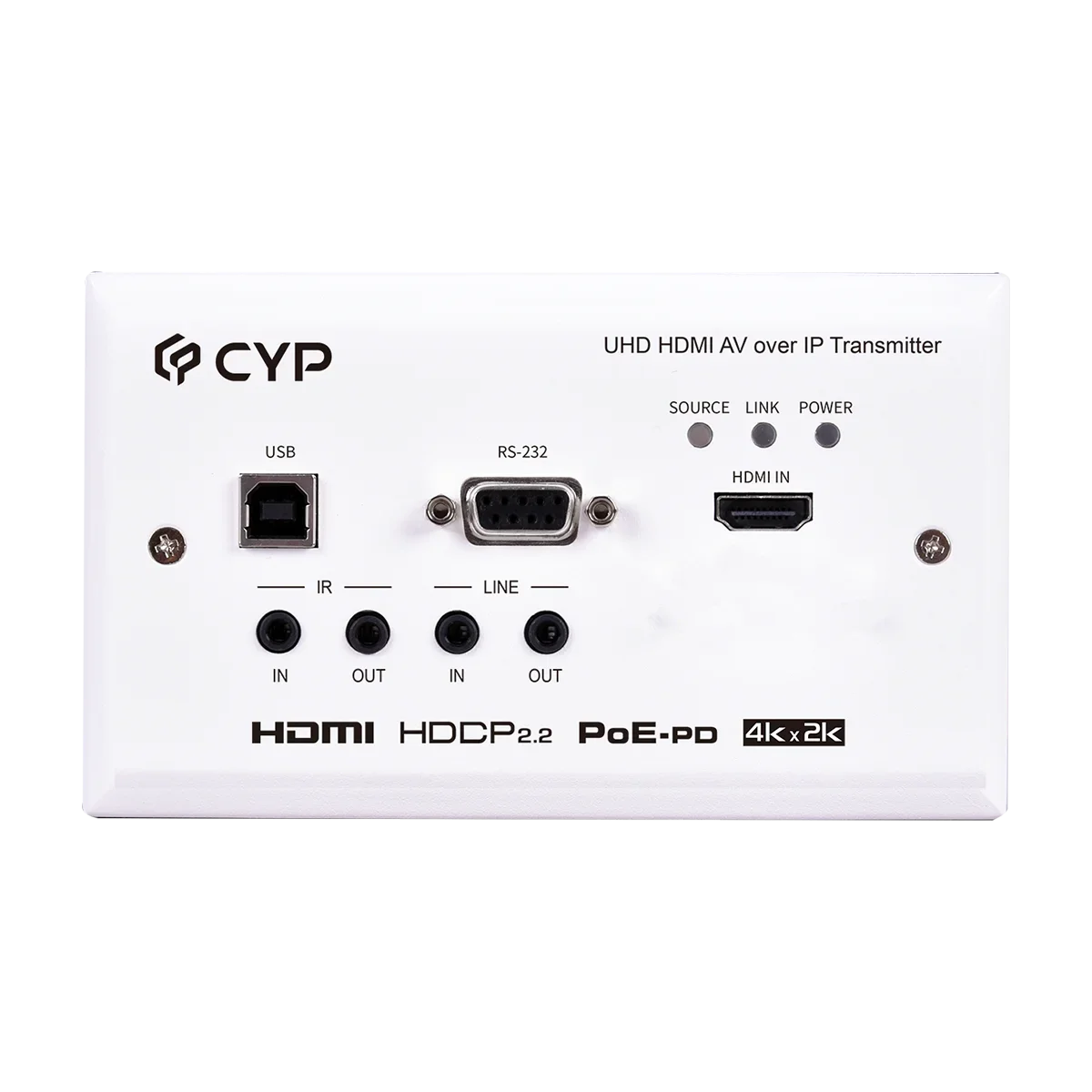

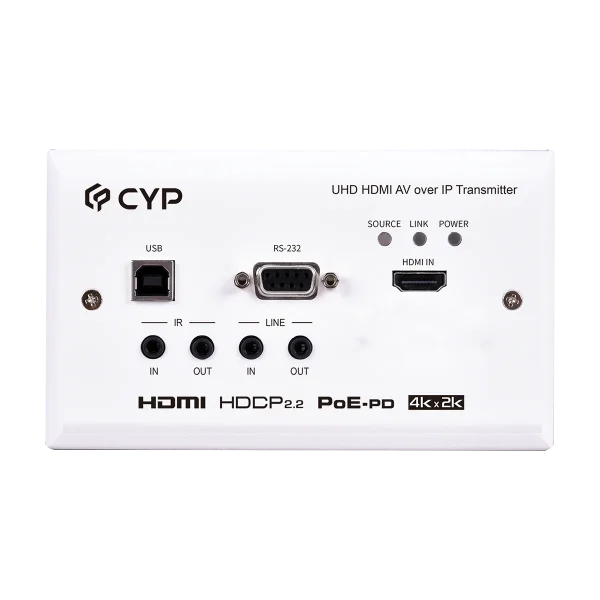

HDMI over IP Transmitter with USB/KVM Wall Plate Extender

The AVoIP wall plate transmitter is part of a 4K UHD Multi-Function Extension system is able to extend HDMI signal along with KVM through Cat.5e/6/7 network cable and transmit UHD video signals, audio and USB up to 100m on a single cable. The transmission distance can be further extended (up to 100m per segment) by using gigabit network switches, allowing the user to cascade the system without signal loss or introducing delay. Pairing to existing series receiver unit with built-in 3 LAN Ethernet switch, could able to extend and expand a basic system without the need for an external network switch. This unit also allows you to send a single AV signal to a large number of Receivers within the same local network. Additionally, that same multicast signal can be used to create large multi-display video walls with amazing simplicity. This system is perfect for both residential and commercial installation environments. The USB functionality allows the system to act like a remote USB hub which when combined with the video extension feature, provides a flexible remote KVM platform. Configuration information is provided via the On-Screen Display (OSD). The unit can be controlled via WebGUI, Telnet, and the IP Master Controller.
