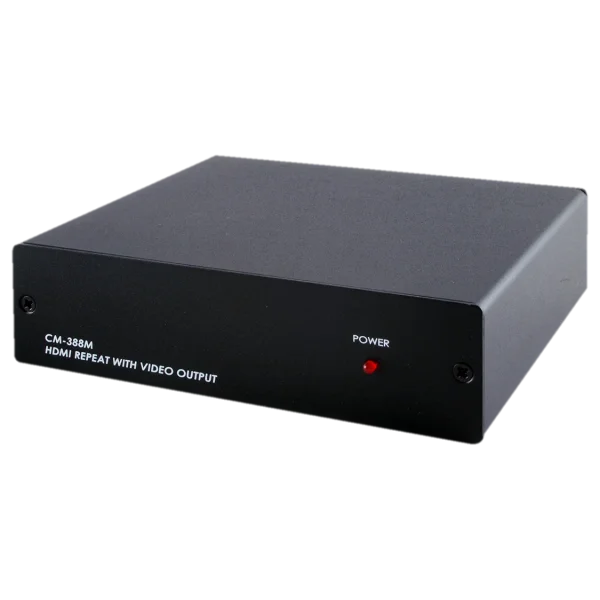

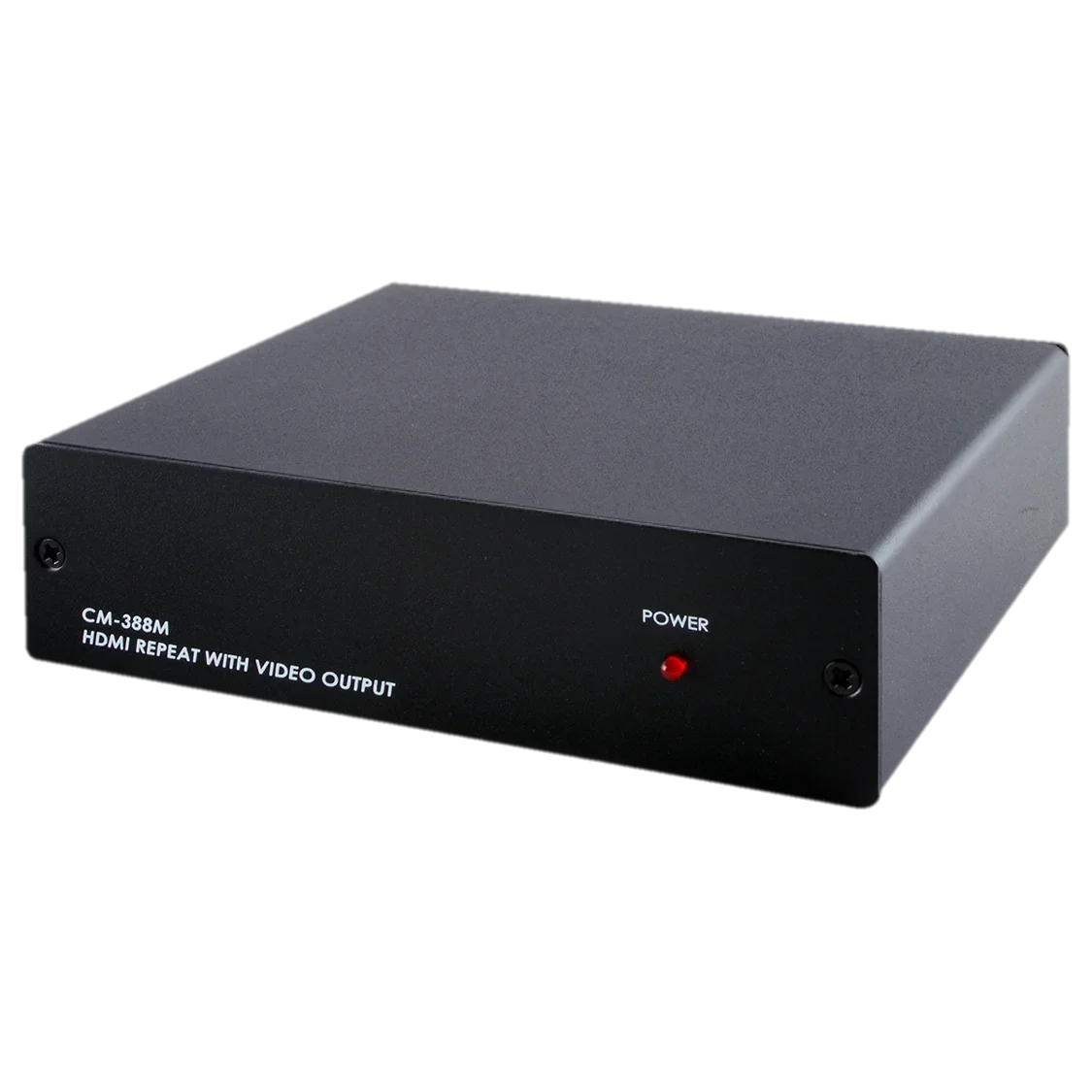

HDMI Repeat with Video Output
Converts video signal from HDMI source to NTSC or PAL signal (selectable), Converts digital audio from HDMI source to analog stereo audio, Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60 Hz and PC from VGA@60 Hz to WUXGA@60 Hz (RB), Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz
| Hersteller-Nr. | CM-388M |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|---|---|
|
Input Port |
1×HDMI 1×Coaxial |
|
Output Port |
1×HDMI 1×Coaxial 1×Composite Video 1×S-Video 2×L/R |
|
Video |
||
|---|---|---|
|
HDMI Compliance |
HDMI 1.2 (DVI 1.0 ) |
|
|
HDCP Compliance |
1.4 |
|
|
Input Signal Type |
1080p60 12-bit |
|
|
Output Signal Type |
CV/SV : NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM HDMI : 1080p60 12-bit |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
1920×1080p@60 |
|
Maximum Output |
HDMI |
1920×1080p@60 1920×1200p@60RB |
|
CV/SV |
480i@60/576i@50 |
|
|
Power |
|
|---|---|
|
Power Supply |
5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
5.5 W |
|
Enclosure |
|
|---|---|
|
Chassis Material |
Aluminum |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
141 mm × 38 mm × 127 mm |
|
Weight |
510g |
|
Field Firmware Update |
|---|
|
N/A |
|
ORDERING INFORMATION |
|
|---|---|
|
Model No. |
Product Description |
|
CM-388M |
HDMI Repeat with Video Output |
