Cypress Technology

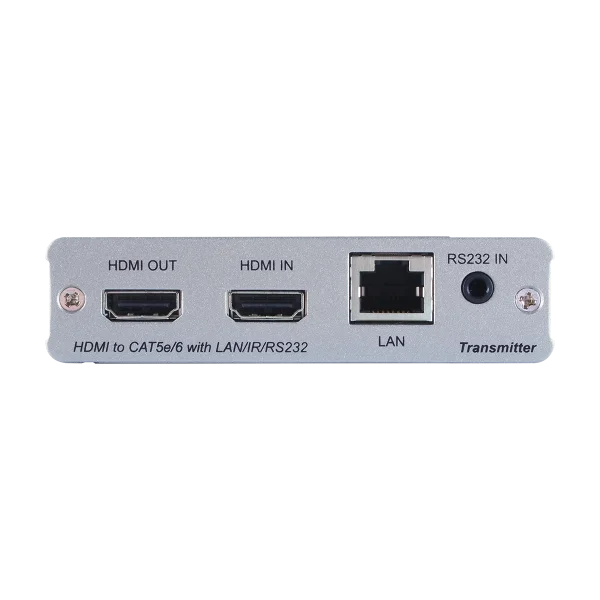

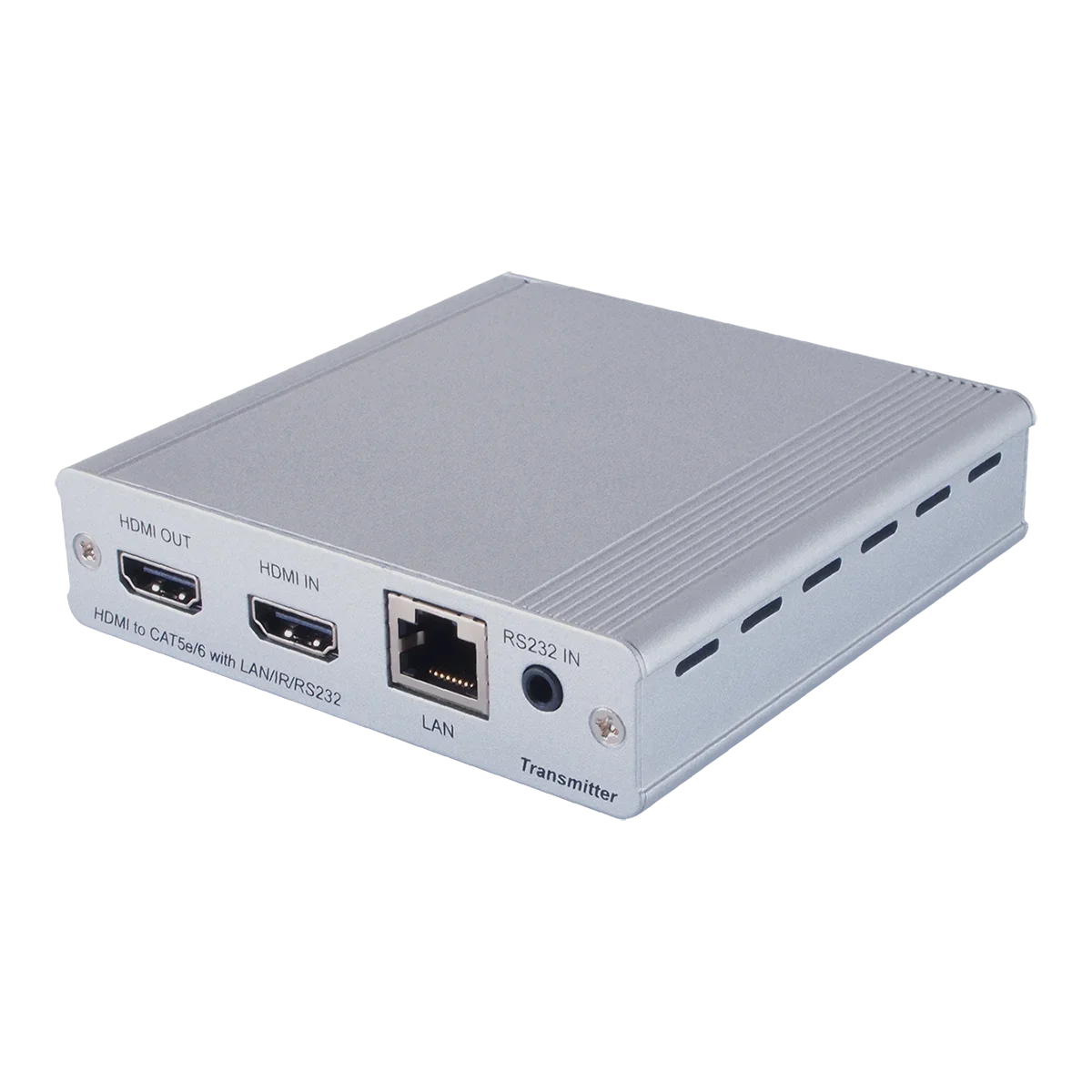

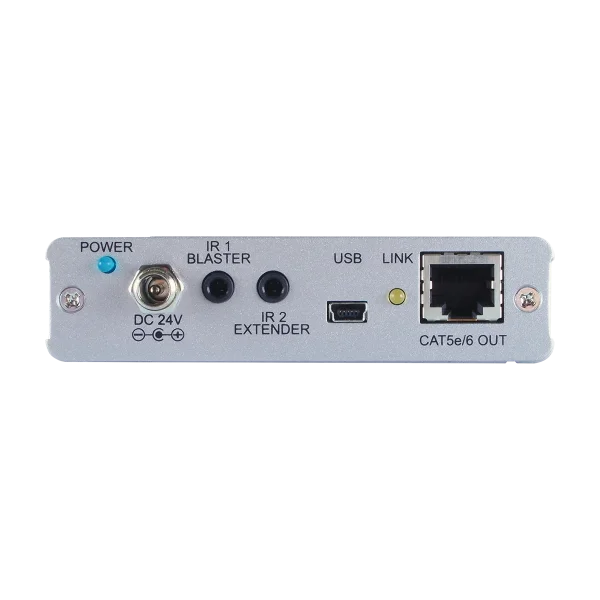

HDMI to CAT5e/6 with LAN/IR/RS232
Simultaneous HDMI and CAT5e/6/7 outputs , Supports data rate from 250Mbps up to 3Gbps, Supports up to 4096x2160@60Hz YUV 4:2:0 , Supports LPCM 7.1CH, Bitstream, HD Bitstream transmission (32-192kHz sample rate) , Supports distances up to 100 meters through CAT5e/6/7 cables , Supports Ethernet network rate up to 100Mbps , Can select Standard or TV EDID , Provides 24V DC power to or received from compatible PoE Receiver through CAT5e/6/7, Supports control of devices via RS-232 and 2-way IR , The 3D signal display follow by display TV’s EDID, Supports Bidirectional IR PoC
| Hersteller-Nr. | CHDBT-1H1CE |
| Hersteller | Cypress Technology |

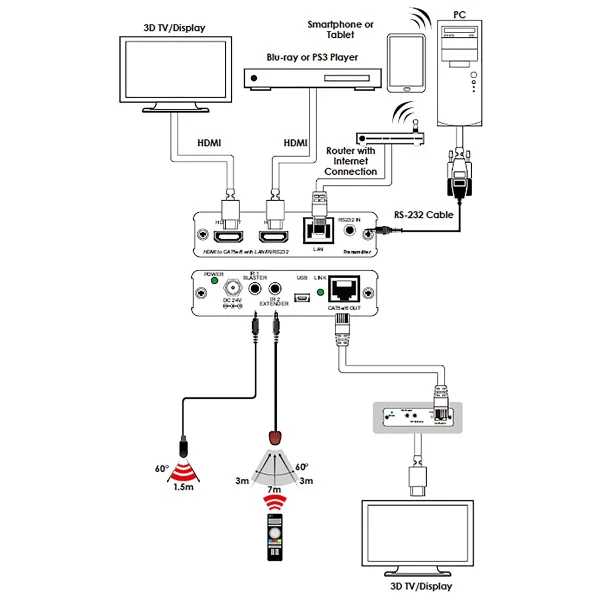

The HDMI over HDMI and CAT5e/6/7 Transmitter can convert a single HDMI
input, 2-way IR and RS-232 control and LAN serving to a single CAT5e/6/7
output and includes a simultaneous HDMI bypass output. It supports
resolutions up to 1080p Full HD, 4K×2K timing, 3D and multi-channel
digital audio formats (such as LPCM 7.1CH, Bitstream, HD Bitstream). The
HDMI bypass output can be connected to an HDMI display or cascaded to
another splitter. The CAT5e/6/7 output can be connected to a CAT5e/6/7
to HDMI Receiver to extend the operating distance up to 100 meters.
Additionally, the LAN connectivity will allow a 100BaseT network to be served
to smart TVs or games consoles. The Bidirectional Power over Cable (PoC)
function provides greater flexibility in installations.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Pass-through Port |
|
| Service Port |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input | HDMI |
|
| Maximum Output | HDMI |
|
| HDBaseT |
|
| Audio | ||
|---|---|---|
| HDMI |
|
|
| HDBase T |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface |
|
Keine Maßangaben verfügbar.
