Cypress Technology

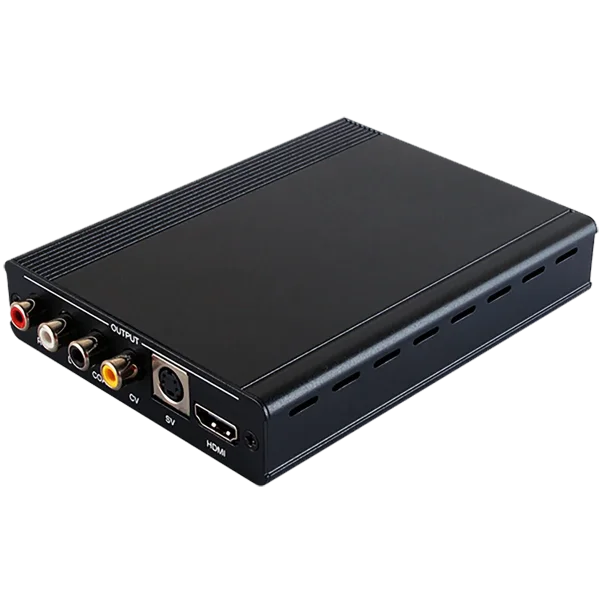

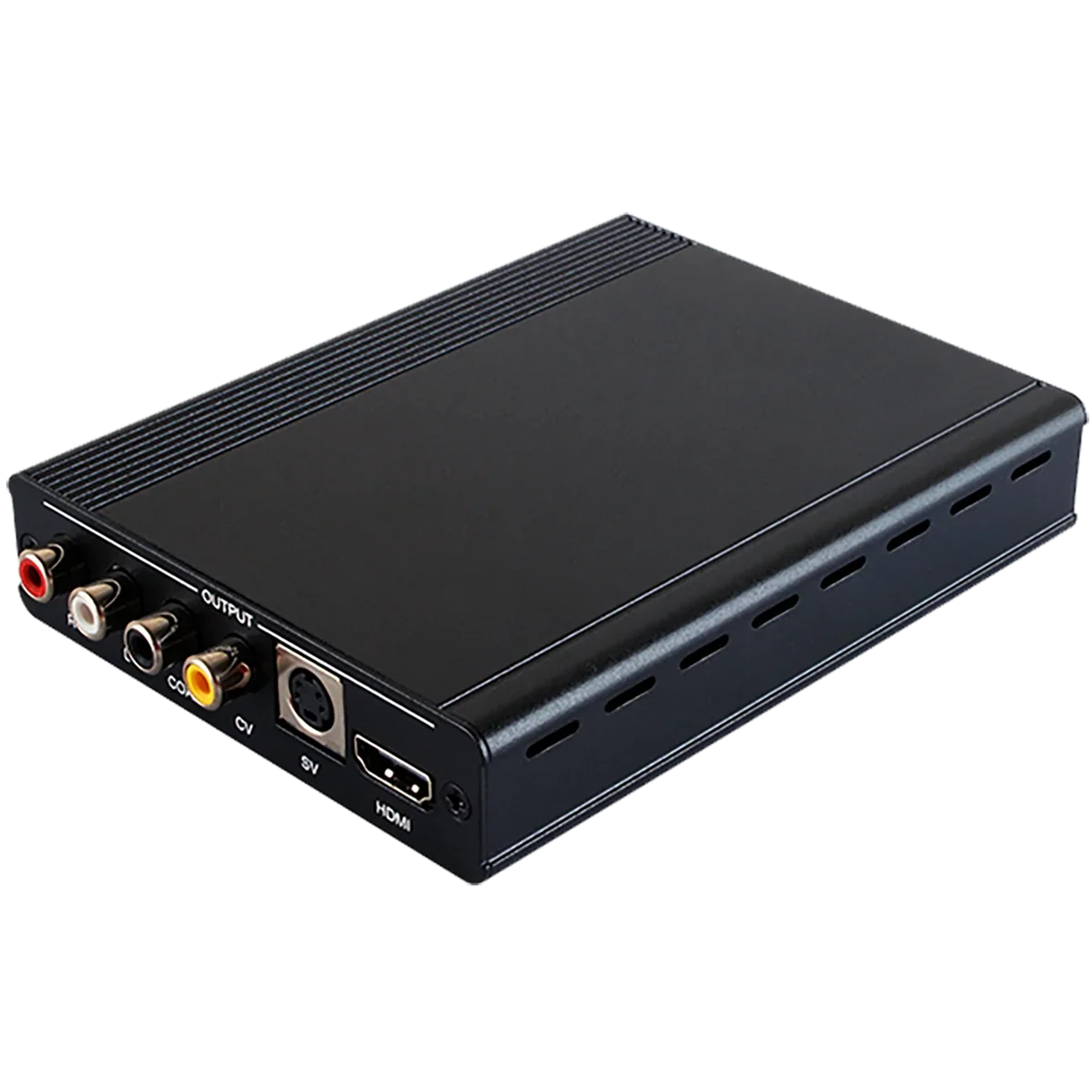

HDMI to CV/SV Converter with HDMI Bypass
Converts video signal from HDMI source to NTSC or PAL signal , Converts HDMI audio to analog stereo audi , Accepts a wide range of HDTV input resolutions, from 480i to 1080p@60Hz and PC from VGA@60Hz to WUXGA@60Hz (RB) , Supports Coaxial input audio sample rate 44.1KHz, 48KHz and 96KHz , Output image overscan or underscan switch ensure best fit on screen , Apple Mode switch guarrantees the use of Apple devices
| Hersteller-Nr. | CM-388N |
| Hersteller | Cypress Technology |

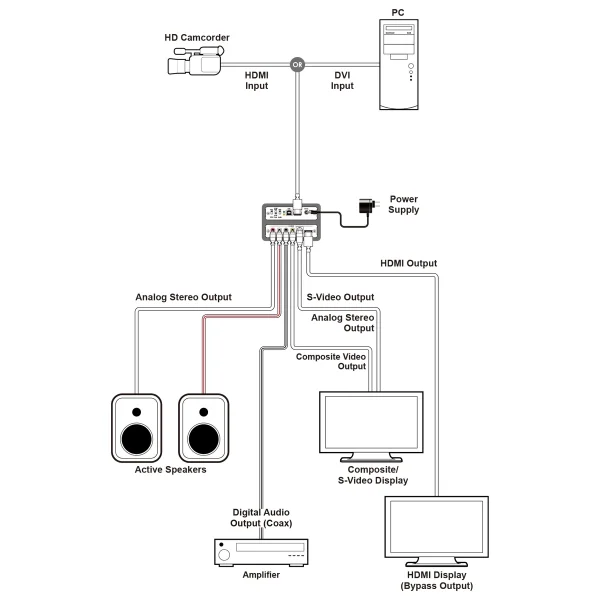

The HDMI to CV/S-Video Converter is designed to convert the digital signal
from HDMI (or DVI) source to analog signal of NTSC or PAL system, with L/R
stereo audio. As well as S-Video and Composite video outputs, it also provides
an HDMI bypass output to deliver the original signal, and a Coaxial output to
send S/PDIF digital audio to an amplifier. Not only these, the device also has
manual selection of underscan and overscan on output image to ensure the
screen best fit for viewer’s pleasantation. And, the model has a special Apple
Mode switch which allows user to use Apple TV or other Apple devices as
source equipment.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input | HDMI |
|
| Maximum Output | HDMI |
|
| CV/SV |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interface | USB |
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CM-388N |
|
Keine Maßangaben verfügbar.
Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand
• ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
