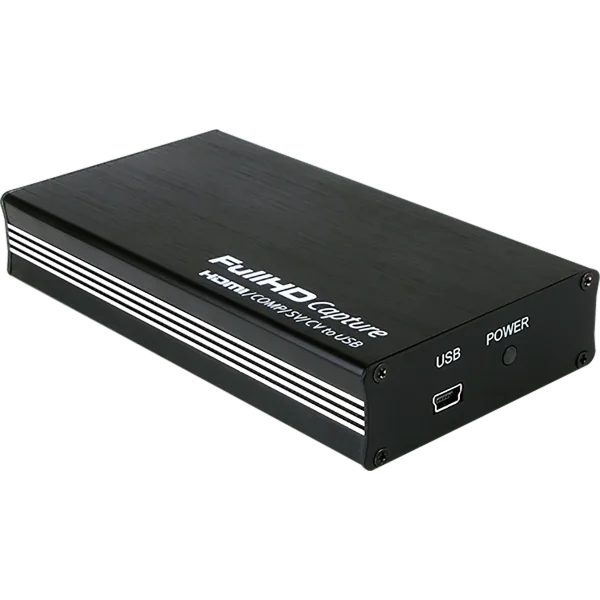

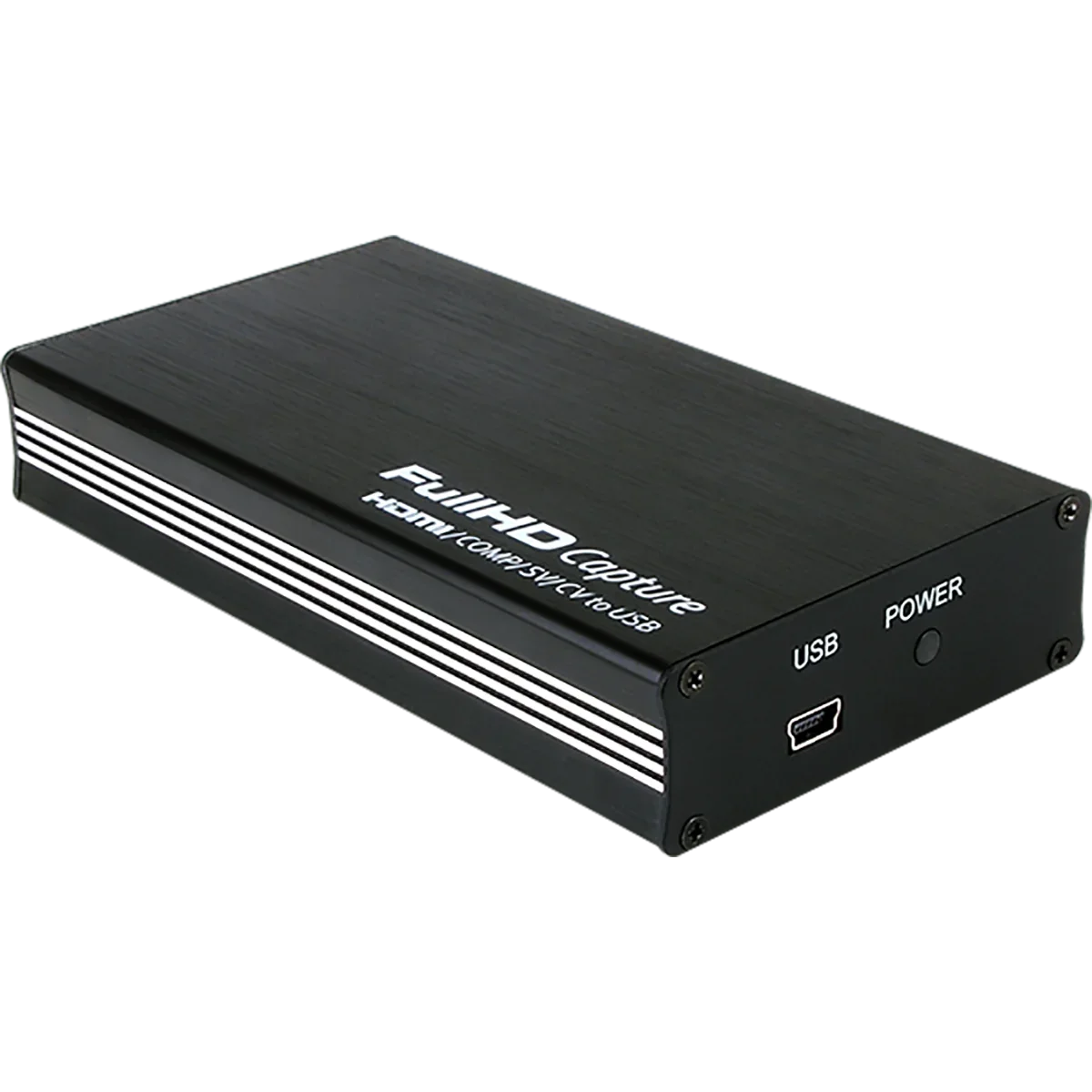

HDMI/COMP/SV/CV to USB FullHD Capture

Supports Full HD capture of HDMI/COMP/SV/CV signal to USB, Built-in H.264/MPEG4-AVC High Definition encoder, Video input Supports input video timings: 1920 x 1080, 1280 x 720, 576, 720 x 480, Supports MPEG-4 Advanced Audio Coding (AAC), Supports audio sampling frequency of 48 KHz, Powered via USB bus power with low power consumption

Hersteller-Nr.	CUSB-601H
Hersteller	Cypress Technology

The CUSB-603 is High Definition capture box supports HDMI 1080p video/component/SV/CVinput and record to H.264 video format. Its low power consumption and superior video processing capabilities make it ideal for integration into high-end portable and desk top PC products.

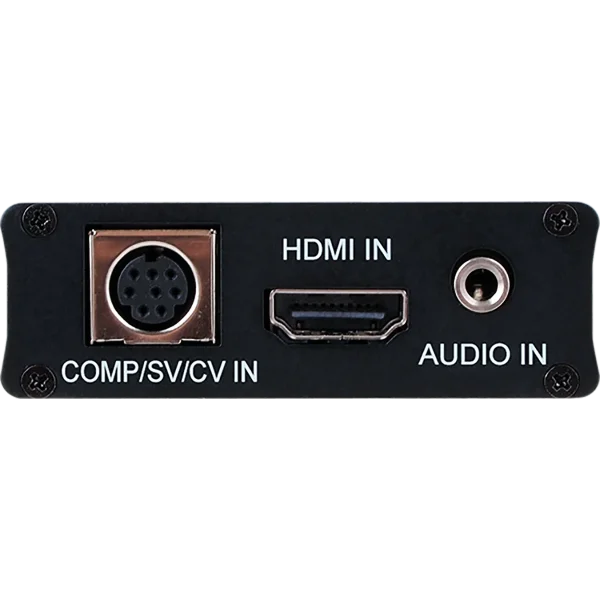

Input port	1 x HDMI
Output port	1 x USB
HDMI Cable Distance	13M
Power Supply	5V/500mA DC USB bus power
Dimensions	65.5 mm (W) × 121.5 mm (D) × 22 mm (H)
Weight	146 g
Chassis Material	Aluminum
Silkscreen Colour	Black
Power Consumption	2.5 W
Operating Temperature	0 ˚C~40 ˚C / 32 ˚F~104 ˚F
Storage Temperature	−20 ˚C~60 ˚C / −4 ˚F~140 ˚F
Relative Humidity	20~90 % RH (non-condensing)

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
