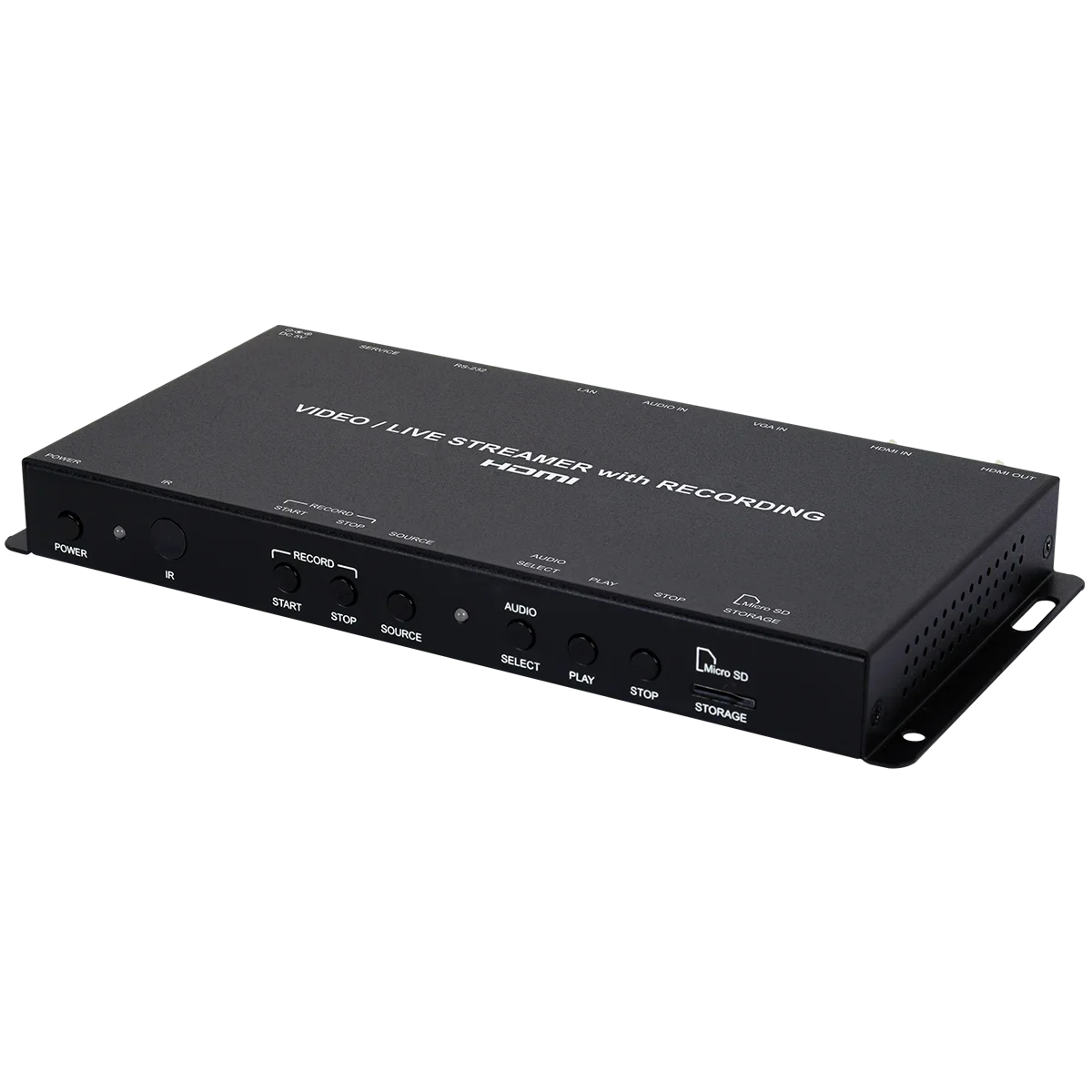

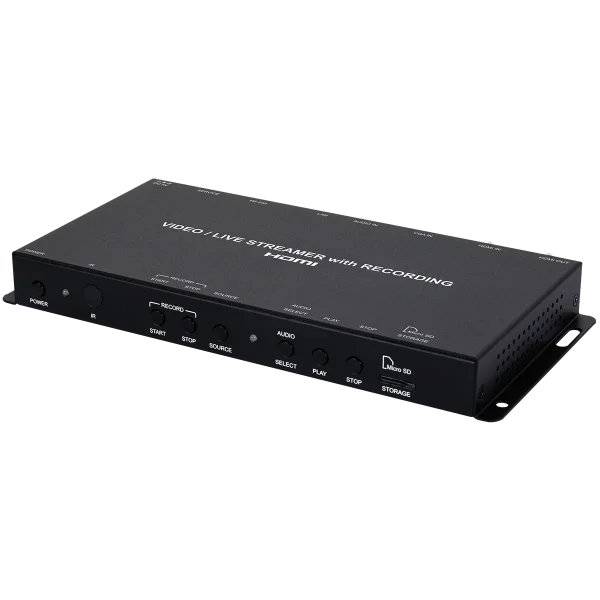

HDMI/VGA to HDMI Live Video Streamer with Recording Function
Audio embedding and mixing support with the analog stereo audio input. Note: Analog audio can only be mixed with LPCM 2.0 audio from the HDMI source., Integrated support for live streaming to Facebook, YouTube or Twitch channels., On screen countdown timer and text overlays are supported. Automatic input switching and downscaling function converting UHD video content (up to 4K@60Hz) down to 1080p or lower for live video broadcast., Generates 4 simultaneous streams from the same video source (1080p@60fps, 1080p@30fps, VGA@30fps, QVGA@30fps) for easy system integration at multiple bandwidth targets, Control via front panel buttons, WebGUI, Telnet, RS-232, and IR
| Hersteller-Nr. | CDPS-P311R |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
1 HDMI (Type-A) 1 VGA (HD-15) 1 Unbalanced Stereo (3.5mm) |
|
Output Port |
1 HDMI (Type-A) |
|
Pass-through Port |
1 LAN (RJ-45) 1 RS-232 (DE-9) 1 MicroSD slot |
|
Service Port |
1 USB (Type-A) |
|
Video |
||
|
HDMI Compliance |
2.0 |
|
|
HDCP Compliance |
2.2 |
|
|
Input Signal Type |
4K@60 8bit YUV 4:4:4 |
|
|
Output Signal Type |
4K@60 8bit YUV 4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 2560×1600p@60RB |
|
VGA |
1920×1200p@60RB |
|
|
Maximum Output |
HDMI |
4096×2160p@60 2560×1600p@60RB |
|
H.264 Stream |
1080p@60 |
|
|
Audio |
|
|
HDMI |
Unbalanced Stereo, 2CH LPCM |
|
Power |
|
|
Power Supply |
5V/2.6A |
|
Power Consumption |
9.57W (Full load) |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×108mm [Case Only] 231.5mm×25mm×117mm [All Inclusive] |
|
Weight |
668g |
|
Field Firmware Update |
|
|
USB Flash Drive, WebGUI |
ORDERING INFORMATION
| Model No. |
Product Description |
|
CDPS-P311R |
HDMI/VGA to HDMI Live Video Streamer with Recording |
Keine Maßangaben verfügbar.
