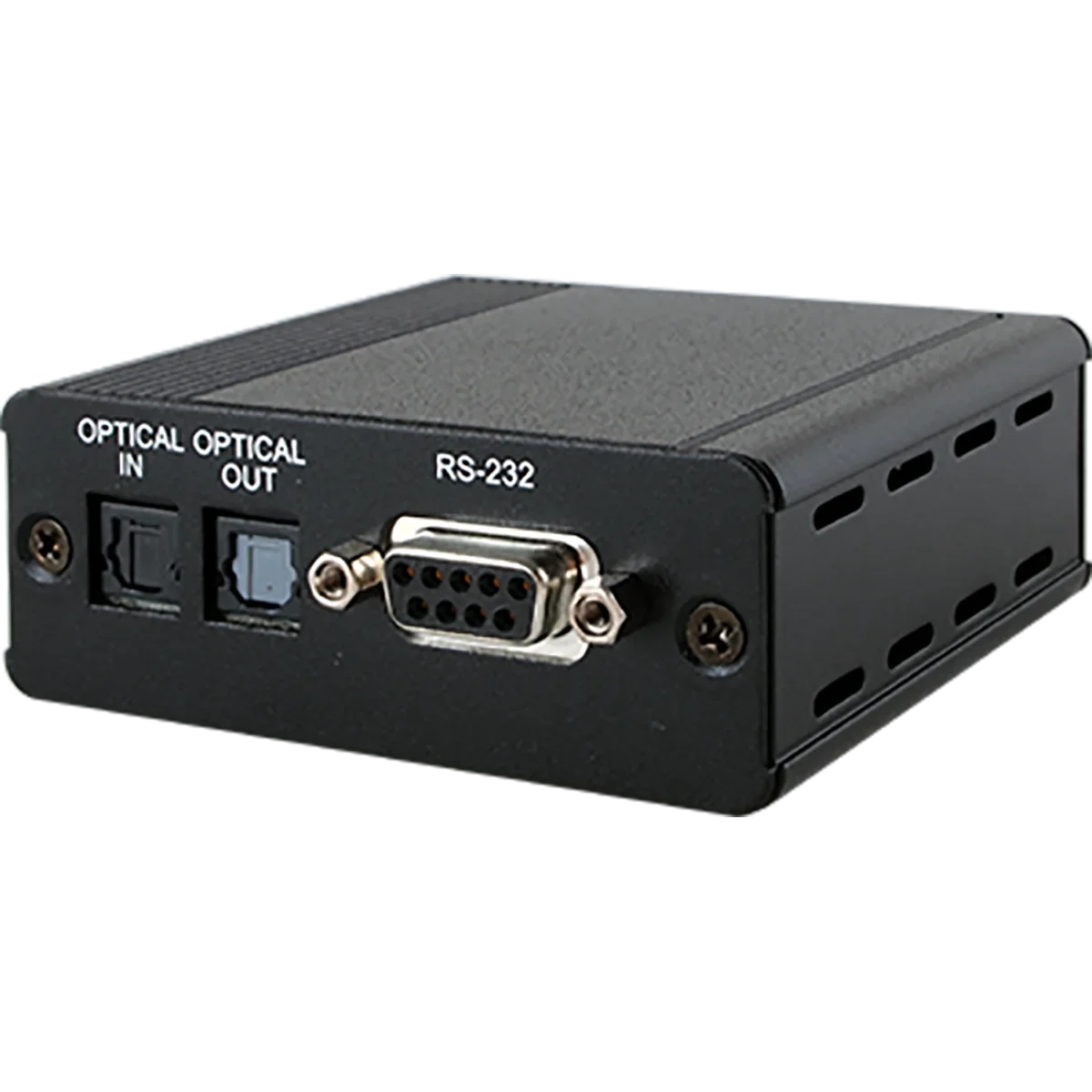

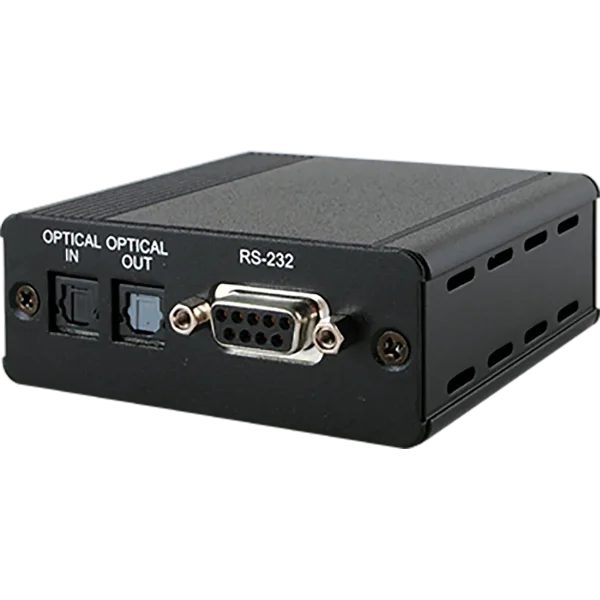

Optical and RS-232 Transmitter Operation

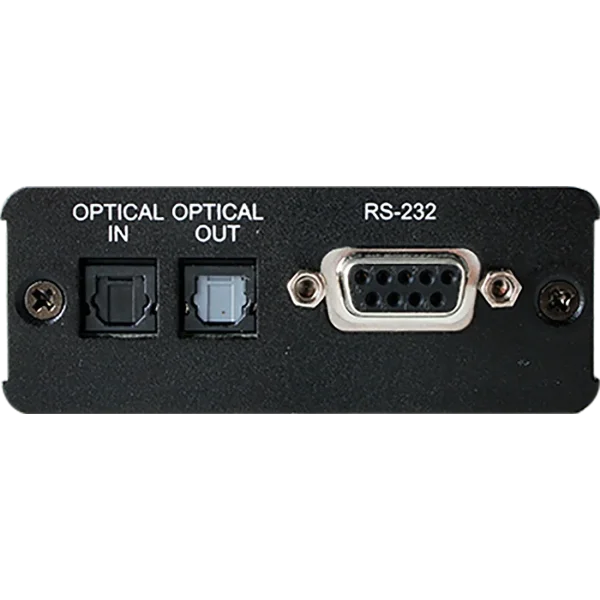

Supports S/PDIF IN & OUT and RS-232 control, Supports Optical S/PDIF audio sampling rate up to 192 kHz, The S/PDIF with 192kHz sampling rate over a single CAT5e/6/7 cable up to 100m/328ft, 96kHz sampling rate the cable up to 150m/492ft and 48kHz sampling rate the cable up to 300m/984ft, Supports LPCM 2CH,Dolby Digital 2~5.1CH, DTS 2~5.1CH (Pass through), Support Bi-direction Power over Cable (PoC), Bi-directional RS-232 control
| Hersteller-Nr. | DCT-30TX |
| Hersteller | Cypress Technology |
The Optical Digital Audio with RS-232 Transmitter and Receiver set can send and receive digital audio (S/PDIF) signals over a single run of CAT5e/6 cable up to 300m. It has the added benefit of RS-232 pass-through allowing control of devices and the bi-directional Power over Ethernet (PoE) function eliminates the need for a second power supply, providing greater flexibility in installations.
|
Transmitter |
|
|
Input Ports |
1 x L/R (2-RCA) 1 x RS-232 |
|
Output ports |

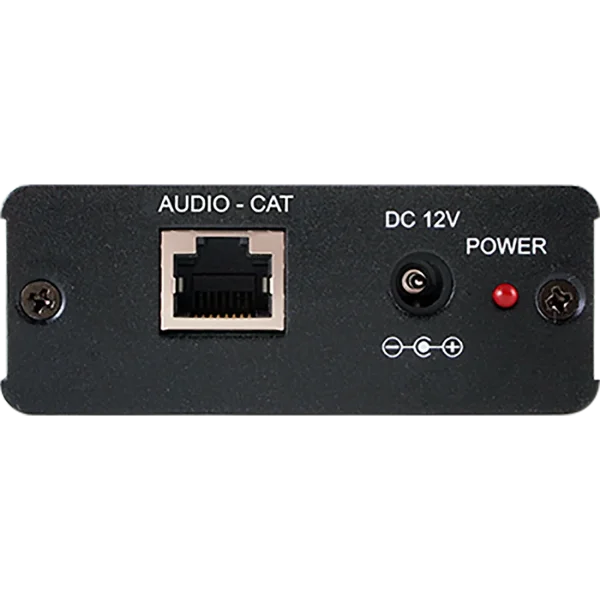

1 x L/R (2-RCA) 1 x AUDIO-CAT |
|
Receiver |
|
|
Input Ports |
1 x L/R (2-RCA) 1 x AUDIO-CAT |
|
Output ports |
1 x L/R (2-RCA) 1 x RS-232 |
|
Audio Formats |
Analog Stereo 2CH |
|
Output Level |
|
|
THD+N |
80dB |
|
SNR |
95dB |
|
Frequency Response |
± 3 dBFS/Vrms |
|
Crosstalk |
-88dB |
|
CAT Cable Distance |
300m |
|
Power Supply |
12VDC/1.25A (US/EU standards, CE/FCC/UL certified) |
|
ESD Protection |
Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) |
|
Dimensions |
102mm (W) x 102mm (D) x 25mm (H)/Jack Excluded 102mm (W) x 116.5mm (D) x 25mm (H)/Jack Included |
|
Weight |
242g/each |
|
Chassis Material |
Metal |
|
Silkscreen Color |
Black |
|
Operating Temperature |
0˚C~40˚C / 32˚F ~ 104˚F |
