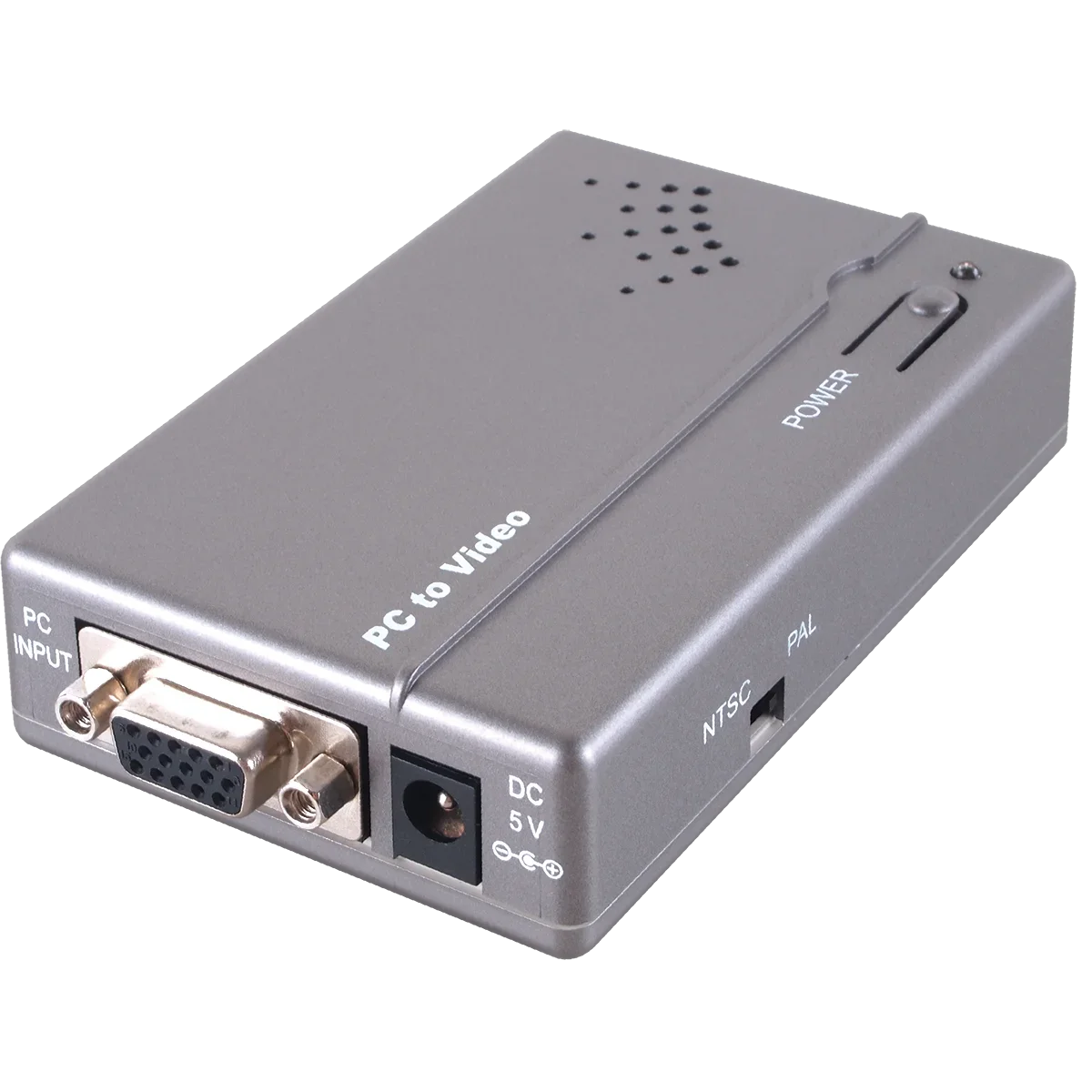

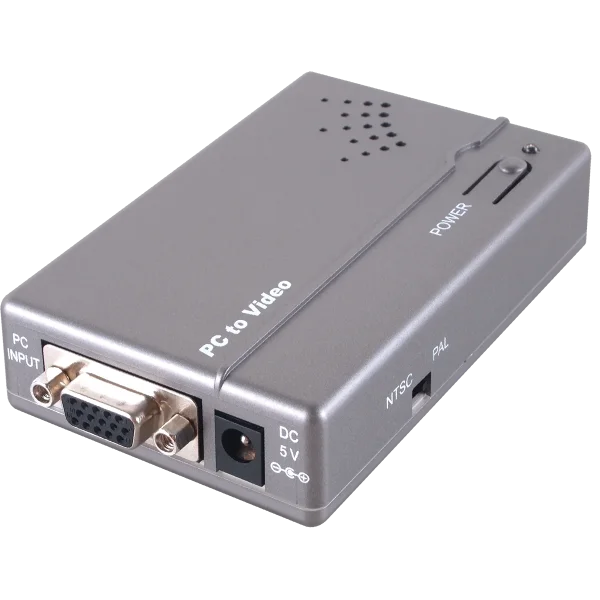

PC to Video
Automatically detects and down converts the incoming VGA signal to NTSC or PAL , Supports high resolution PC input timings from VGA to WUXGA (RB) , Scaled video is output simultaneously as Composite and S-Video signals , Output format is switchable between NTSC/PAL , Manual Overscan/Underscan selection
| Hersteller-Nr. | CPT-385AMN |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|

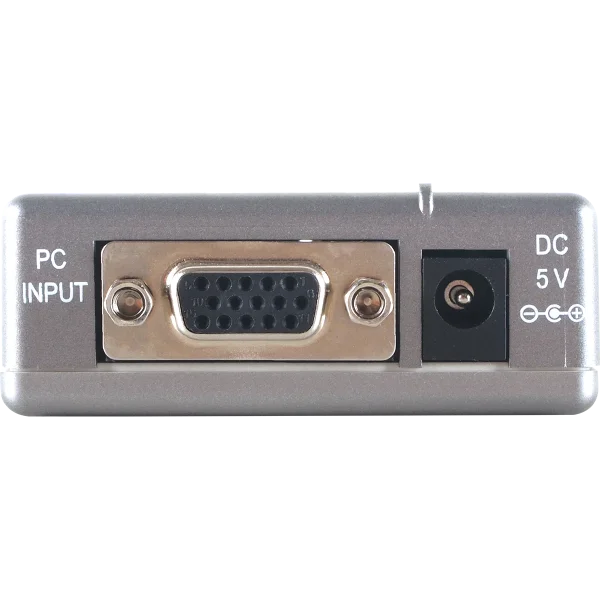

Input Port |
1×VGA (HD-15) |
|

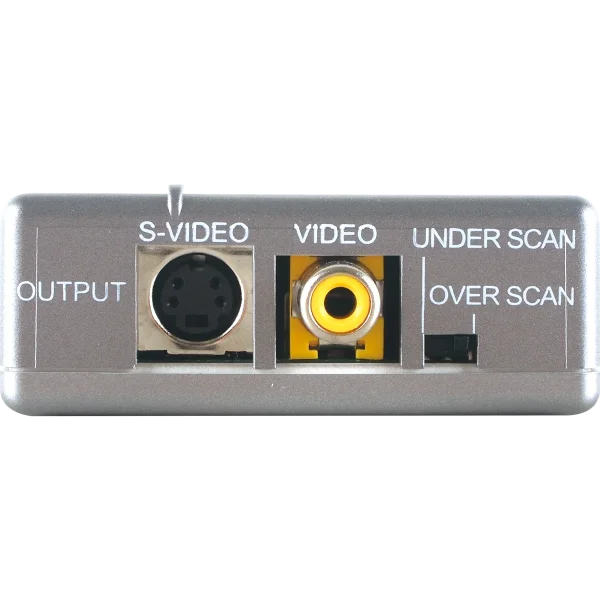

Output Port |
1×S-Video (4-pin mini-DIN) 1×Composite Video (RCA) |
|
Video |
||
|
Input Signal Type |
WUXGA |
|
|
Output Signal Type |
CV/SV: NTSC, NTSC4, PAL, PAL-M, PAL-N & SECAM |
|
|
Resolutions |
||
|
Maximum Input |
VGA |
1920×1200@60 (RB) |
|
Maximum Output |
SV |
480i@60/576i@50 |
|
CV |
480i@60/576i@50 |
|
|
Power |
|
|
Power Supply |
5V/2.6A DC (US/EU standards, CE/FCC/UL certified) |
|
Power Consumption |
5W |
|
Enclosure |
|
|
Chassis Material |
Plastic |
|
Chassis Color |
Gray |
|
Dimensions (W×H×D) |
100mm×18.5mm×64mm [Case Only] 113mm×26mm×64mm [All Inclusive] |
|
Weight |
90g |
|
Field Firmware Update |
|
|
PCB on board, uses RS232 |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
CPT-385AMN |
PC to Video |
