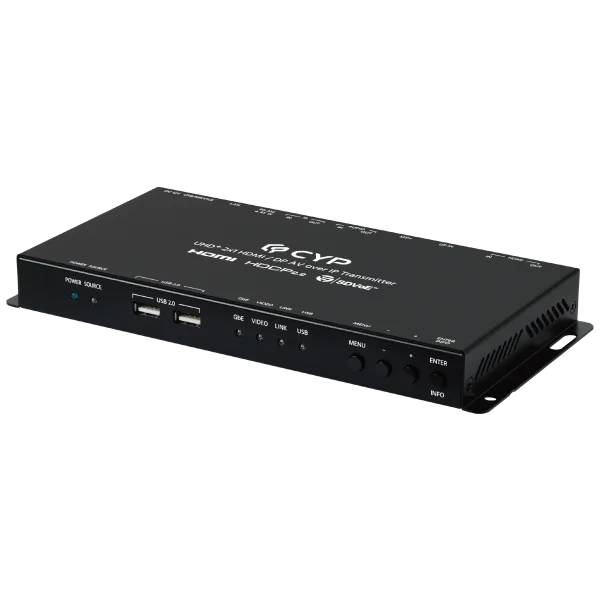

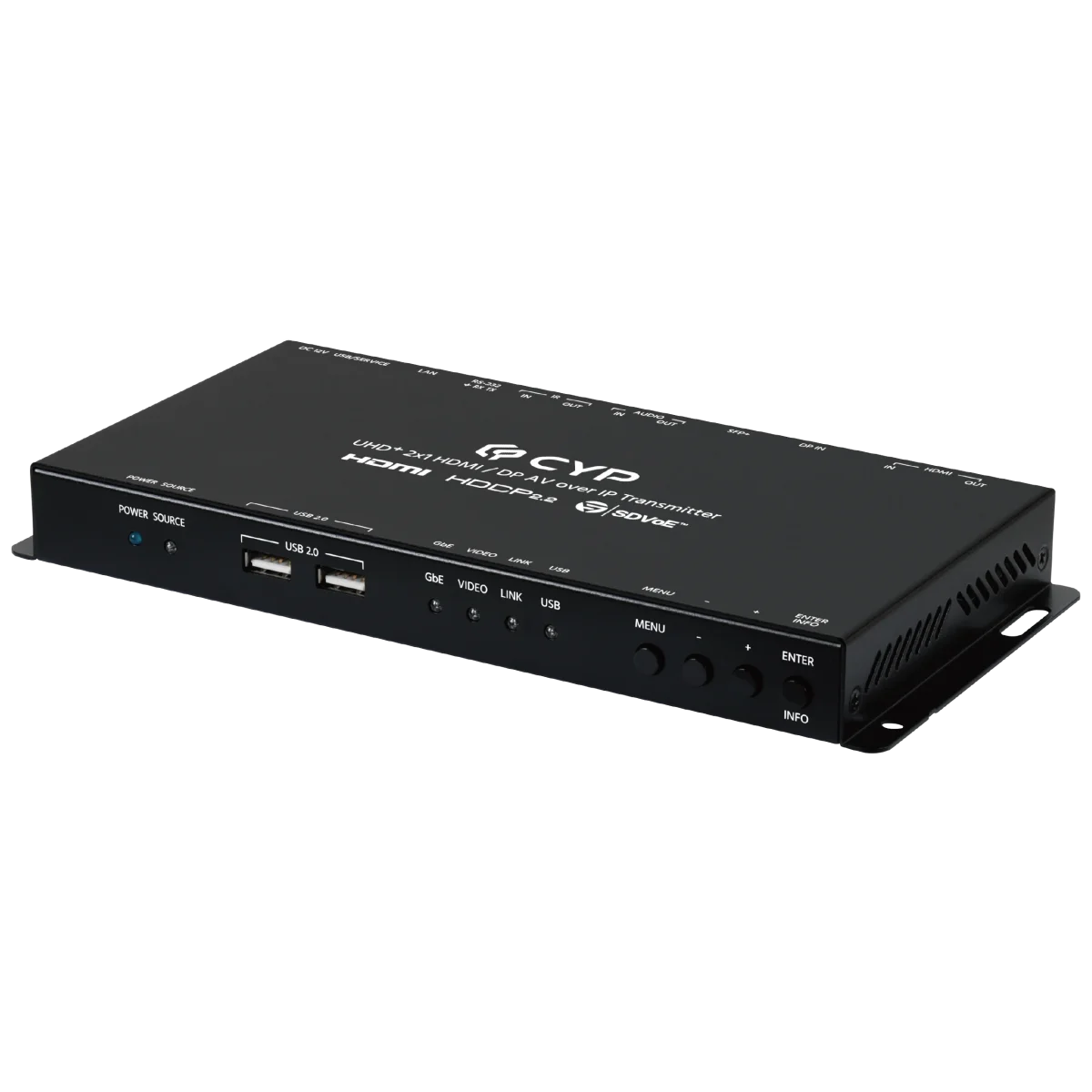

UHD+ 2x1 HDMI/DP AV over IP Transmitter with Preview
Zero latency transmission for all signal types including 4K@60 RGB/ YUV 4:4:4, HDR10, 3D and broadcast-friendly 4K@60 10-bit 4:2:2, Supports pass-through of 10/12-bit HDR sources (Point-to-Point and Bypass modes only), Analog stereo audio extension, insertion and extraction (insertion and extraction requires optional IP Master Controller/control software), Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K with color space conversion and frame rate conversion, Audio down-mixing engine from multi-channel PCM audio to stereo, Signal transmission interfaces with 10-Gigabit Ethernet switches via XFI (IEEE 802.3ae) compatible SFP+ fiber modules, Basic configuration via front panel buttons with an On-Screen Display (OSD)
| Hersteller-Nr. | AVIP-P5104T-B1F |
| Hersteller | Cypress Technology |
This transmitter is designed for high-quality, IP routable and AV extension with minimum latency. By using a sophisticated ultra-light compression scheme (lossless for most content), it’s a great solution for extending 4K audio/video streams and data. The fiber optical port supports both singlemode and multimode fiber module. The distance of signal extension is up to 120 km in Point-to-Point mode. When combined with the optional IP Master Controller or control software, the functionality of the transmitter expands exponentially. Multiple transmitters and receivers may be combined with one or more 10-Gigabit Ethernet switches and the units can be used together to set up a video matrix mode, a multiview mode or a video wall mode. It’s suitable for large scale installations. The very own exclusive development technology of preview function has remedied the lack of this AV over IP solution and fulfilled the needs of long distance transmission.
|
Interfaces |
|
|
Input Port |
1 HDMI (Type A) 1 DisplayPort(Female) 1 Analog(3.5mm) |
|
Output Port |
1 HDMI (Type A) 1 Analog(3.5mm) 1 10GbE LAN (SFP+) |
|
Control I/O |
1 Ethernet (RJ-45) 1 IR Extender (3.5mm) 1 IR Blaster (3.5mm) 1 RS-232 (3-pin terminal block) 1 USB (Mini-B) 2 USB(Type A) |
|
Video |
||
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
HDCP Compliance |
2.2 |
|
|
Input Signal Type |
4K@60 YUV 4:4:4 |
|
|
Output Signal Type |
4K@60 YUV 4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096×2160p@60 YUV 4:4:4 |
|
DP |
4096×2160p@60 YUV 4:4:4 |
|
|
Maximum Output |
SFP+ |
4096×2160p@60 YUV 4:4:4 |
|
HDMI |
4096×2160p@60 YUV 4:4:4 |
|
|
Audio |
||
|
Digital Format |
HDMI |
LPCM (8 Channels), Bitstream, |
|
DP |
LPCM (8 Channels), Bitstream, |
|
|
Line Level |
Line In |
1 Vrms |
|
Line Out |
1 Vrms S/N Ratio: > 80dB (1kHz with 0dBFS) |
|
|
Power |
|
|
Power Supply |
12V/3A DC (Locking) |
|
Power Consumption |
11.2W |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
231.5mm×25mm×158mm [Case Only] 231.5mm×25mm×167mm [All Inclusive] |
|
Weight |
594g |
|
Field Firmware Update |
|
|
PC |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
AVIP-P5104T-B1F |
UHD+ 2×1 HDMI/DP to HDMI AV over IP Transmitter with Preview |
|
AVIP-P5101TR-B1C |
UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/HID USB |
|
AVIP-P5102TR-B1C |
UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB |
|
AVIP-P5102TR-B1F |
UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transceiver W/USB 2.0 HUB |
|
AVIP-P5101TR-B1F |
UHD+ 2×1 HDMI/DP to HDMI Bi-directional AV over IP Transmitter W/HID USB |
|
AVIP-P5104R-B1C |
UHD+ HDMI AV over IP Receiver |
|
CH-V502TR |
UHD+ HDMI/USB AV over IP Transceiver |
|
COH-TR7 |
UHD+ HDMI/DP/USB AV over IP Transceiver |
