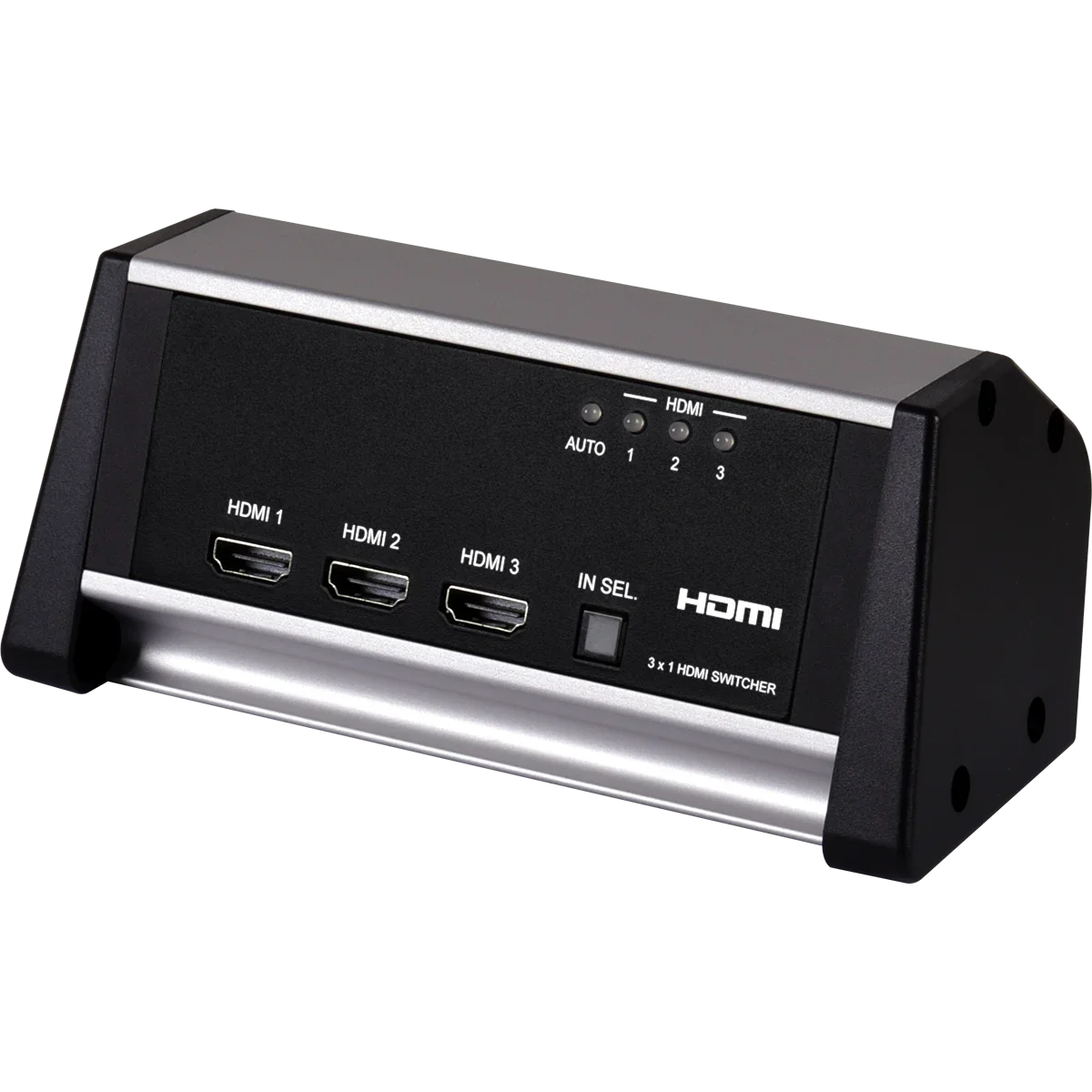

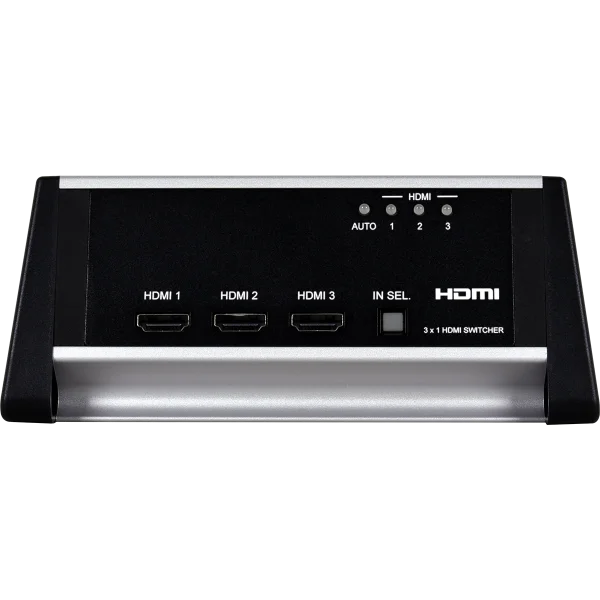

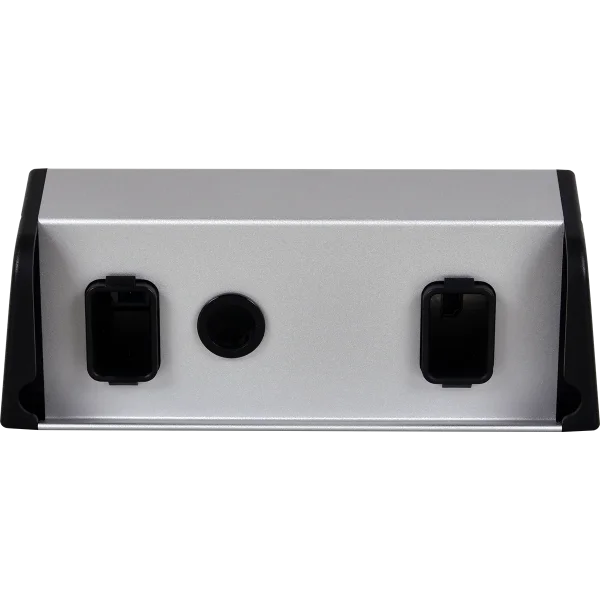

UHD+ 3×1 HDMI Switcher Table Box

Supports Deep Color input and output up to 12-bit , Supports 10-bit and 12-bit HDR (High Dynamic Range) input/output , Supports pass-through of many audio formats including 8 channel LPCM, Bitstream, and HD Bitstream , Supports manual input selection or automatic input selection with hot plug detection and “Last Memory” feature , Sophisticated EDID management ensures optimal compatibility , LED indicators provide input selection as well as automatic switch status information , Convenient table box design , Control via front panel button and RS-232

Hersteller-Nr.	CPLUS-V3H1H-TB
Hersteller	Cypress Technology

This UHD+ 3×1 HDMI Switcher Table Box features three HDMI inputs and one HDMI output with manual or automatic source switching. Every input and output supports full bandwidth 4K@60Hz (4:4:4, 8-bit) HDMI 2.0 with HDCP 2.2 signals. Automatic source management allows for hands-free switching based on input signal and hot plug detection with a “Last Memory” switching feature upon signal loss. This switch is an ideal addition to any conference room, lecture hall or home entertainment setup with its portable and easy to install design. The table box is designed to be placed on a table, or mounted to any typical table edge using a clamp. Control is via a front panel button and RS-232.

Interfaces
Input Port	3 HDMI (Type A)
Output Port	1 HDMI (Type A)
Control I/O	1 x RS-232 (3.5mm)
Service Port	1 x USB 2.0 (Mini B)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4096 x 2160p@60 8bit YUV 4:4:4, HDR 12
Output Signal Type	4096 x 2160p@60 8bit YUV 4:4:4, HDR 12

Resolutions
Maximum Input	HDMI	4096×2160p@60
Maximum Output	HDMI	4096×2160p@60

Power
Power Supply	5V/1A
Power Consumption	2.53W

Enclosure
Chassis Material	Metal (Aluminum)
Chassis Color	Black
Dimensions (W×H×D)	125mm×55mm×34mm [Case Only] 125mm×55mm×40mm [All Inclusive]
Weight	230g

Ordering Information
Model No.	Product Description
CPLUS-V3H1H-T	UHD+ 3×1 HDMI Switcher Table Box

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)

Auf Anfrage

zzgl. 10,00 € Versand • ab 500 € versandkostenfrei

Auf Bestellung

Lieferzeit: ca. 30 Tage
