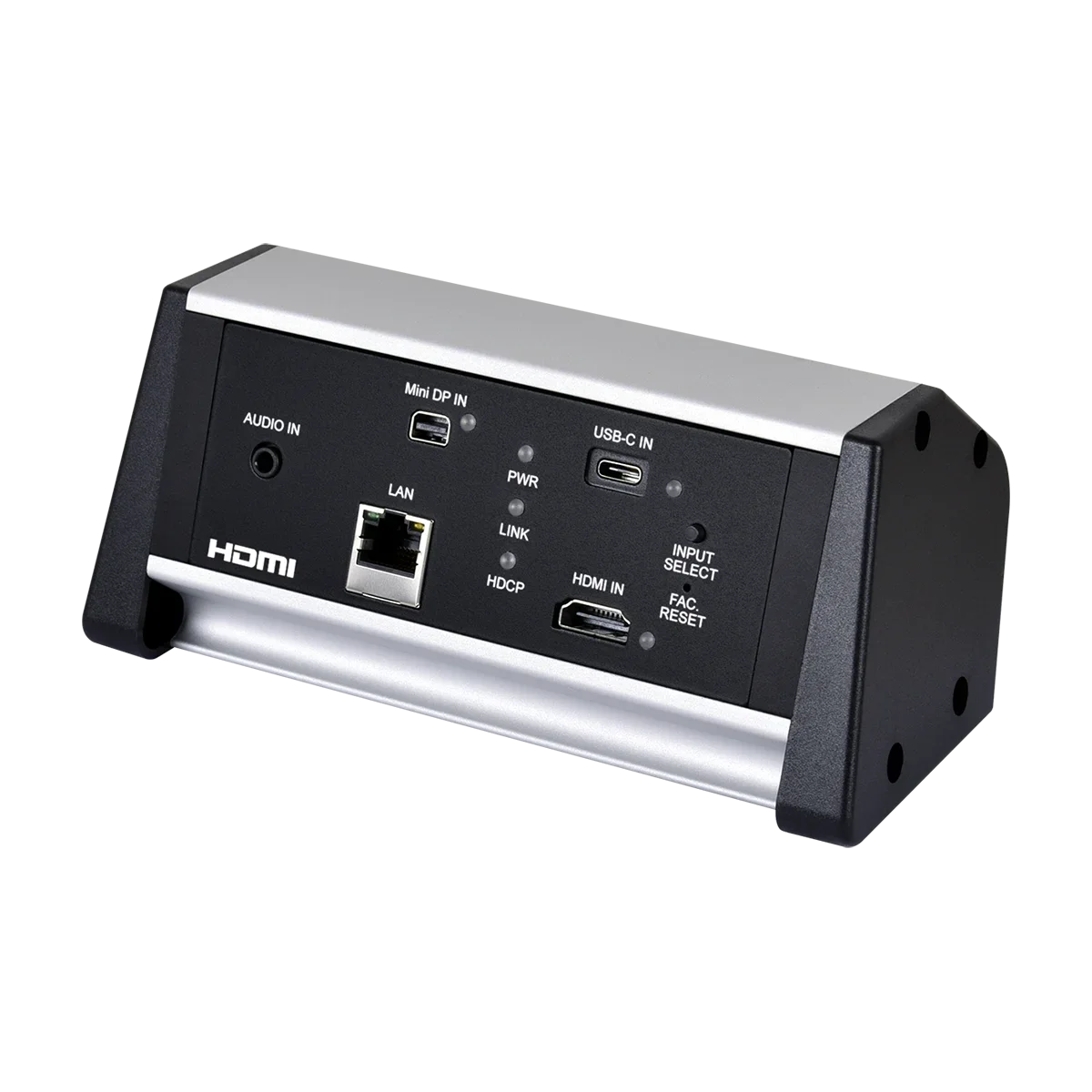

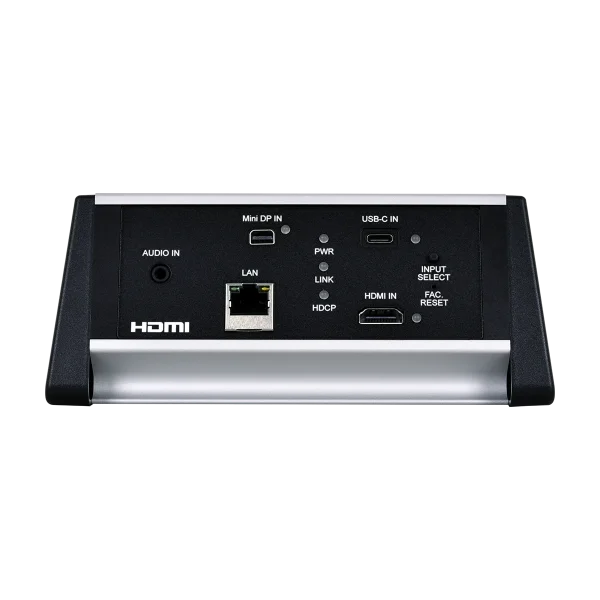

UHD+ 3x1 Multi-Format to HDBaseT Table Box with PoH (PD)
HDMI with 3D & 4K support , Automatic scaling of sources to match the native resolution of the HDMI display based on EDID , HDBaseT output transmits video, audio and data over a single Cat.5e/6/7 cable and can reach distances up to 70m at 4K when using Cat.6a/7 , Supported HDBaseT feature set: HD Video & Audio, 100BaseT Ethernet, and PoH (PD) , Supports CEC bypass , Automatic input selection with hot plug detection enabling hands- free operation , Front panel LEDs indicate input selection, power and link status
| Hersteller-Nr. | CH-2541TXM-TB |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
1 HDMI (Type-A) 1 DisplayPort (mDP) 1 USB (Type-C) 1 Stereo Audio (3.5mm) |
|
Output Port |
1 HDBaseT (RJ-45) |
|
Control I/O |
1 LAN (RJ-45) |
|
Video |
||
|
HDMI Compliance |
HDMI 2.0 |
|
|
HDCP Compliance |
2.X |
|
|
Input Signal Types |
4096 x 2160p@60 8bit YUV 4:4:4 |
|
|
Output Signal Types |
4096 x 2160p@60 8bit YUV 4:2:0 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
4096x2160p@60 |
|
Mini-DP |
4096x2160p@60 |
|
|
USB (Type-C) |
4096x2160p@60 |
|
|
Maximum Output |
Cat5e/6/7 |
4096x2160p@60 |
|
Audio |
|
|
HDMI |
LPCM (8 Channels), Bitstream, |
|
Power |
|
|
Power Consumption |
13.97W |
|
Enclosure |
|
|
Chassis Material |
Metal (Aluminum) & Plastic |
|
Chassis Color |
Black/Silver |
|
Dimensions (W×H×D) |
125mm× 55mm× 37mm [Case Only] 170mm× 77mm× 75mm [All Inclusive] |
|
Weight |
400g |
|
Field Firmware Update |
|
PC Update, WebGUI |
|
ORDERING INFORMATION |
|
Model No. |
Product Description |
|
CH-2541TXM-TB |
UHD+ 3x1 Multi-Format to HDBaseT Table Box with PoH (PD) |
|
CH-2527RX |
UHD HDMI over HDBaseT Receiver with PoH |
