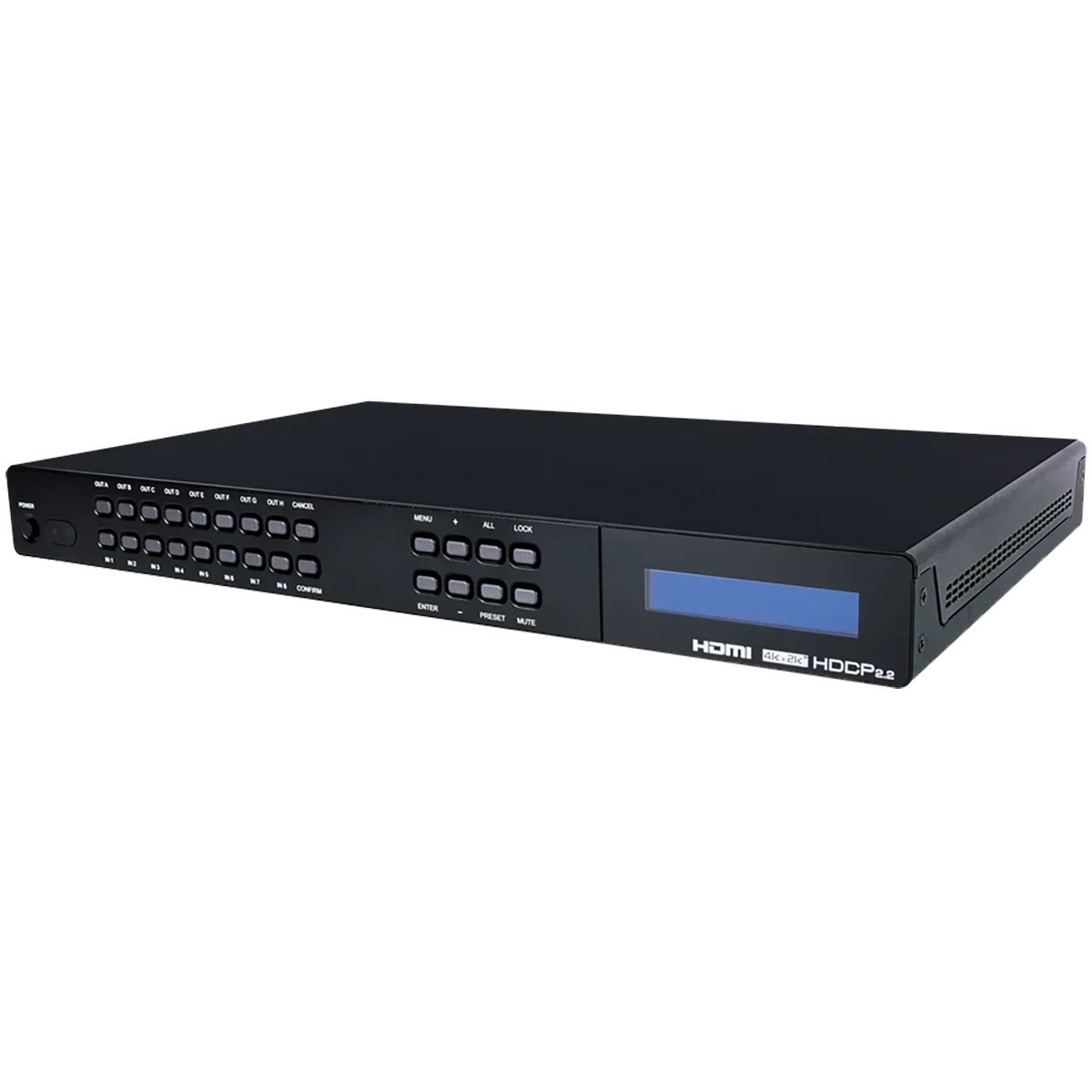

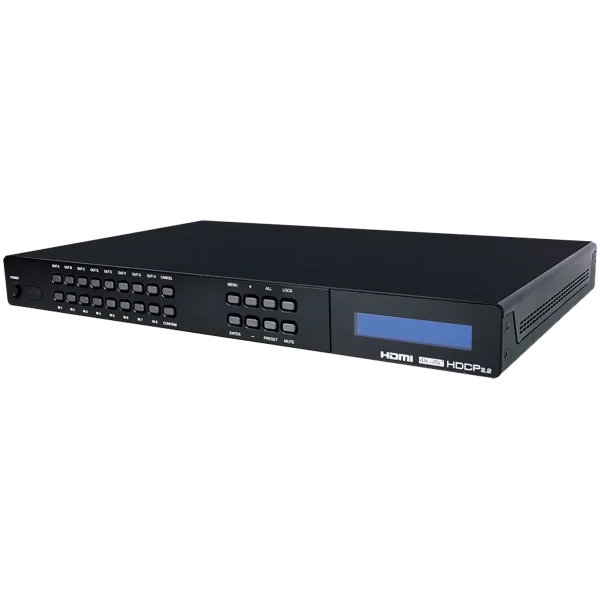

UHD+ 8×8 HDMI Matrix with USB Power Outputs
Klicken zum Vergrößern
Cypress Technology

UHD+ 8×8 HDMI Matrix with USB Power Outputs

Supports 16-bit Deep Color up to 1080p@60Hz, Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports six internal EDIDs, eight external EDIDs copied from connected devices, and four user provided EDIDs, Eight USB ports to supply 5V/1A power to AOC (Active Optical Cable) fiber extension cables, OSD with user customizable information text, Controllable via front-panel buttons with LCD, WebGUI, Telnet, RS-232, and IR remote

Hersteller-Nr.CPLUS-V8H8HP
HerstellerCypress Technology

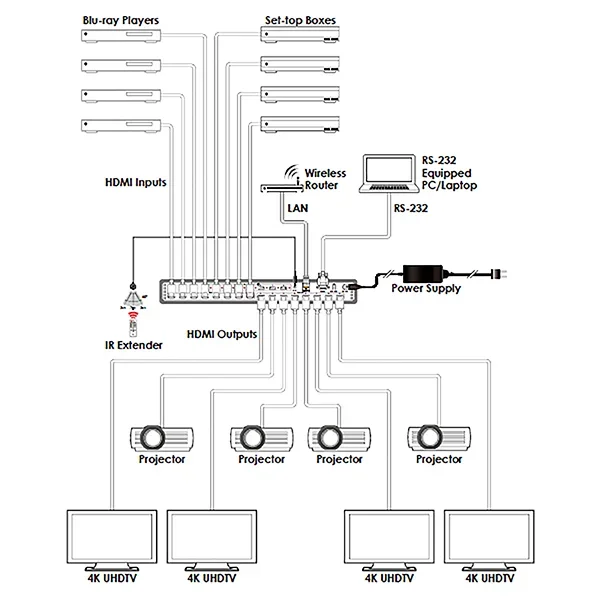

This 8 by 8 Matrix provides the ability to connect up to eight 4K UHD HDMI sources to up to eight 4K UHD HDMI displays and freely switch between them. This unit comes with full support for 18Gbps (600Mhz) resolutions up to, and including 4K@60Hz (4:4:4, 8-bit) as well as support for 16-bit Deep Color up to 1080p@60Hz, HDR (High Dynamic Range), HD audio and other features defined by the HDMI 2.0a specification. With a comprehensive EDID management feature that includes the ability to select between built in default EDID, EDID copied from connected sink devices, as well as a configurable EDID, this matrix can solve many interconnectivity problems.

This unit also features eight USB ports which supply up to 5V/1A power for use with connected AOC (Active Optical Cable) fiber cable extenders. By using these specialized cables your HDMI content can be extended much further than would be possible with normal HDMI cables. The built-in OSD has the ability to display user editable general information text so each output can display up to 2 lines of customized text on top of the video source in the color of your choice. This unit provides an intuitive set of front panel controls with an LCD as well as RS-232, Telnet, WebGUI, and IR remote control options.

Interfaces

Input Port

8×HDMI

Output Port

8×HDMI

8×USB Type A (Power only, 5V/1A)

Control I/O

1×IR Extender (3.5mm)

1×RS-232 (9-pin D-sub)

1×IP Control (RJ45)

Video

HDMI Compliance

HDMI 2.0 (DVI 1.0)

HDCP Compliance

2.x

Input Signal Types

4096x2160p@60 8-bit YUV 4:4:4

Output Signal Types

4096x2160p@60 8-bit YUV 4:4:4


Resolutions

Maximum Input

HDMI

4096×2160p@60

Maximum Output

HDMI

4096×2160p@60

Power

Power Supply

24V/6.25A DC

(US/EU standards, CE/FCC/UL certified)

Power Consumption

110W

Enclosure

Chassis Material

Metal

Chassis Color

Black

Dimensions (W×H×D)

438mm×44mm×269mm [Case Only]

438mm×49mm×274mm [All Inclusive]

Weight

3,600g

Field Firmware Update

USB

ORDERING INFORMATION

Model No.

Product Description

CPLUS-V8H8HP

UHD+ 8×8 HDMI Matrix with USB Power Outputs

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
