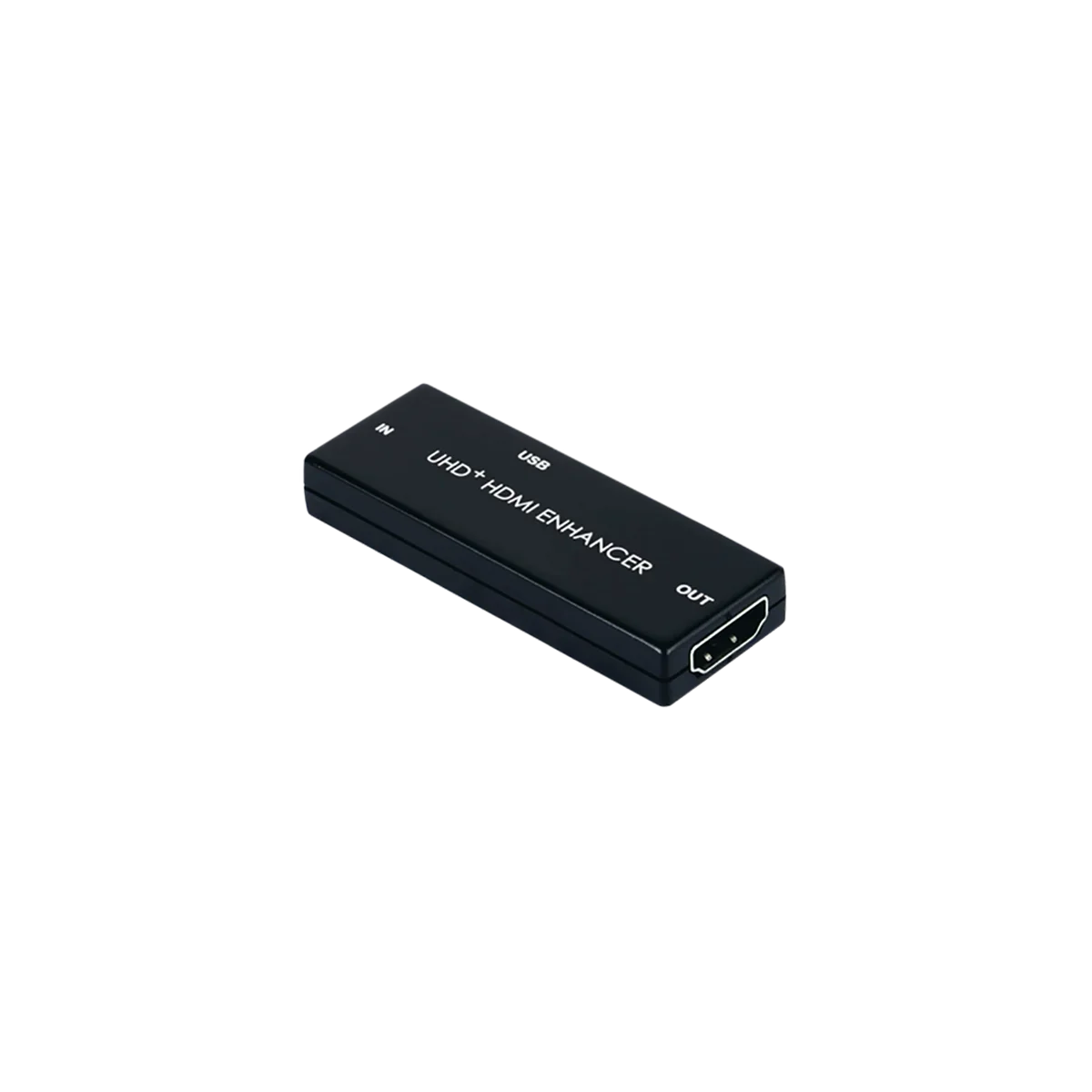

UHD+ HDMI Enhancer
Retiming capability allows for clean regenerated signals for transmission., Supports USB 5V injector functions, Supports pass-through of many audio formats including LPCM 2.0/5.1/7.1, Bitstream, and HD Bitstream, Supports CEC/ARC bypass, Cascading HDMI signal up to 7 layers with 9m Premium Cable (63 meters), Compact design, Note:1. For devices that do not support power over cable and USB Power Injector can be used to the HDMI Enhancer.2. HDMI cable tested with 28AWG, different source and different cable may cause in different result on cable distance and cascading layers.
| Hersteller-Nr. | CPLUS-VHH |
| Hersteller | Cypress Technology |
|
HDMI Bandwidth |
18Gbps |
|
Input Ports |
1×HDMI (Type-A) |
|
Output Ports |
1×HDMI (Type-A) |
|
Voltage Injection Port |
1×USB 2.0 (Micro-B) |
|
ESD Protection (HBM) |
±8kV (Air Discharge) |
|
|
±4kV (Contact Discharge) |
|
Dimensions (W×H×D) |
65mm×10mm×24mm [All Inclusive] |
|
Weight |
15g |
|
Chassis Material |
Plastic |
|
Chassis Color |
Black |
|
Operating Temperature |
0˚C – 40˚C/32˚F – 104˚F |
|
Storage Temperature |
-20˚C – 60˚C/-4˚F – 140˚F |
|
Relative Humidity |
20 – 90% RH (Non-condensing) |
|
Power Consumption |
0.75W |
Keine Maßangaben verfügbar.
