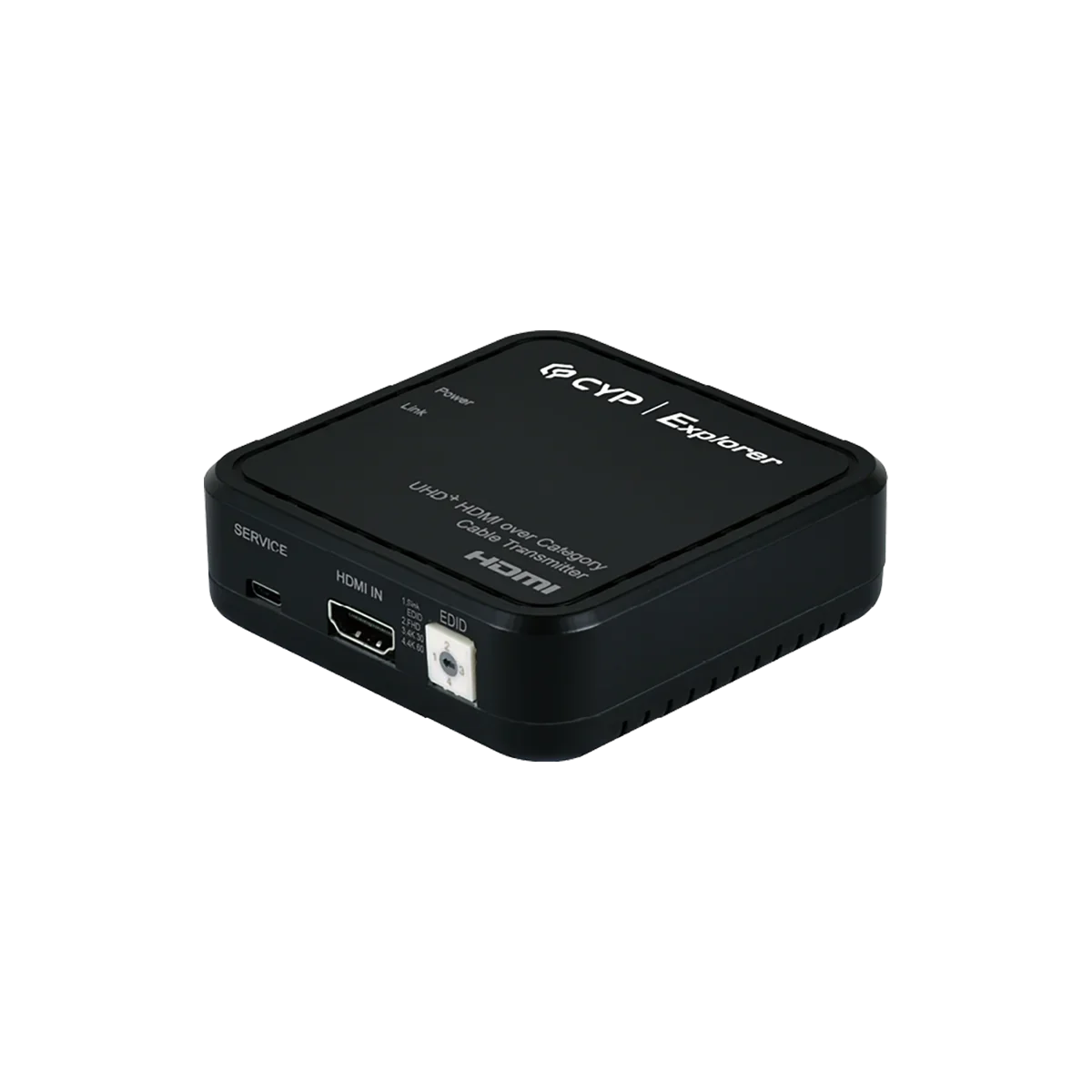

UHD+ HDMI over Category Cable Transmitter (4K@60 444 up to 60M)

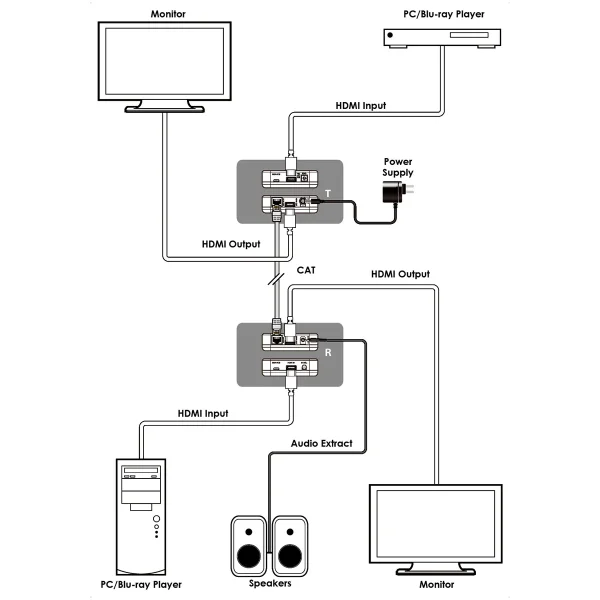

Point to point extension for audio and video, Transmitter has HDMI local Loop out, Receiver can switch video and audio sources between local HDMI input and CAT input, CAT6/6A/7 Cable can reach to up to 60M, Supports POC (Power over Cable), transmitter powers compatible receiver, Multi-channel audio compliant for PCM7.1 up to 192KHz, AC-3(Dolby5.1), and DTS 5.1, EDID can switch among 4 modes: Sink EDID, FHD, UHD, and UHD+
| Hersteller-Nr. | VEX-T1201T |
| Hersteller | Cypress Technology |
The UHD+ HDMI over Category Cable Transmitter is able to extend HDMI signals and transmit UHD video and audio signals through a single CAT6/6A/7 network cable. The transmission distance can be up to 60m per segment, allowing the user to cascade the system without signal loss or introducing delay.
|
Interfaces |
|
|
Input Port |
1 HDMI (Type A) |
|
Output Port |
1 HDMI(Type A) 1 CAT6(RJ-45) |
|
Service Port |
1 USB (Mini-B) |
|
Video |
||
|
HDMI Compliance |
HDMI 2.0 |
|
|
HDCP Compliance |
2.x |
|
|
Input Signal Types |
3840x2160p60 YUV 4:4:4 |
|
|
Output Signal Types |
3840x2160p60 YUV 4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
HDMI |
3840x2160p60 YUV4:4:4 |
|
Maximum Output |
HDMI |
3840x2160p60 YUV4:4:4 |
|
CAT 6/6A/7 |
3840x2160p60 YUV4:4:4 |
|
|
Audio |
|
|
HDMI |
LPCM (8 Channels), Bitstream |
|
Power |
|
|
Power Supply |
12V/3A |
|
Power Consumption |
4.6W |
|
Enclosure |
|
|
Chassis Material |
Plastic |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
85mm×26mm×85mm [Case Only] 91mm×26mm×85mm [All Inclusive] |
|
Weight |
150g |
|
Field Firmware Update |
|
USB |
|
ORDERING INFORMATION |
|
|
Model No. Product Description |
|
|
VEX-T1201R |
UHD+ HDMI over Category Cable Receiver |
|
VEX-T1201T |
UHD+ HDMI over Category Cable Transmitter |
Keine Maßangaben verfügbar.
