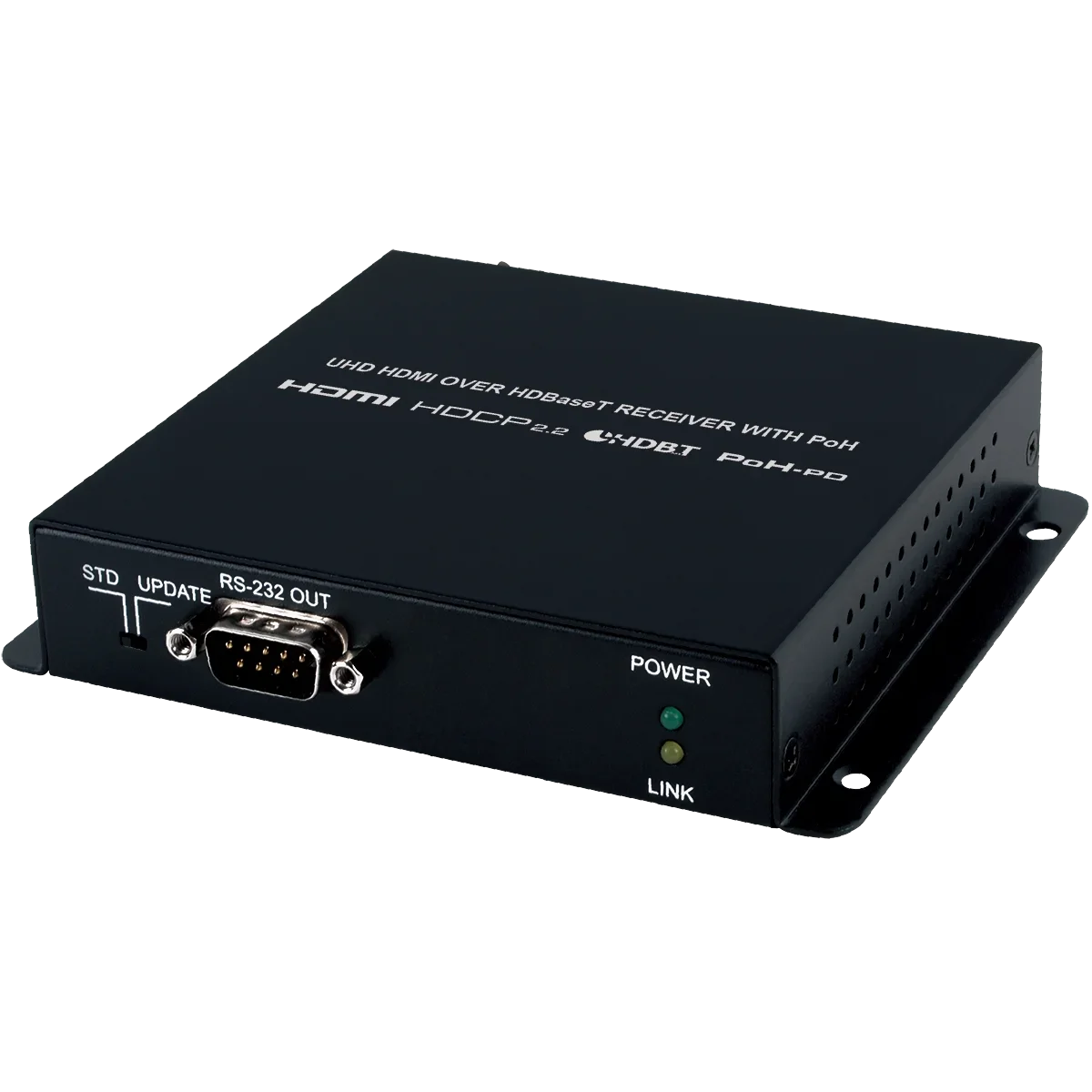

UHD HDMI over HDBaseT Receiver with PoH (4K@60 420 up to 35M)

Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, RS-232 with baud rate up to 115200/sec, Supports wide range of IR frequency from 30~50kHz, HDMI with 3D, 4K2K support, HDMI & DVI Compliant, Supports CEC bypass, Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 60m, 4Play™ convergence: HDMI, PoE & Control (IR & RS-2232), Supports resolution up to 4K2K@50/60 & YUV_420 and 21:9, Supports standard 48V from Transmitter (PSE) to Receiver (PD)

Hersteller-Nr.	CH-1527RXPL
Hersteller	Cypress Technology

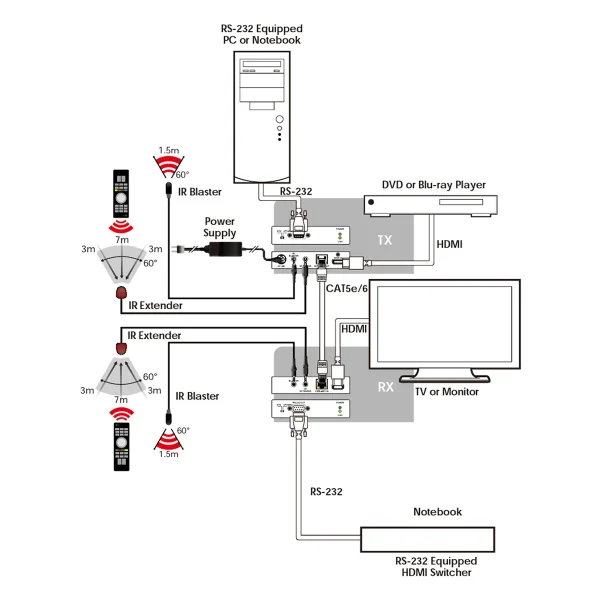

The HDMI over single CAT5e/6/7 Transmitter and Receiver set can send uncompressed audio/video and IP data over a single run of CAT5e/6/7 cable at a distance up to 60 meter. It has the added benefit of control through the builtin RS-232 and IR ports. The Receiver (PD) can be powered by the PoE 48V function of the Transmitter (PSE), allowing for greater flexibility in installations.

Interfaces
Input Port	1 x HDBaseT (RJ-45) 1 x IR Blaster(3.5mm)
Output Port	1 x HDMI(Type-A) 1 x IR Extender(3.5mm) 1 x RS-232(DE-9)

Video
HDMI Compliance	HDMI 2.0 (DVI 1.0)
HDCP Compliance	2.X
Input Signal Types	4K@60 YUV 4:2:0
Output Signal Type	4K@60 YUV 4:2:0

Resolutions
Maximum Input	HDBaseT6/7	4096×2160p@60 YUV 4:2:0
Maximum Output	HDMI	4096×2160p@60 YUV 4:2:0

Power
Power Supply	48 V/0.83 A DC (US/EU Standards, CE/FCC/ UL certified)
Power Consumption	13.5w (Max)

Enclosure
Chassis Material	Metal (Steel)
Chassis Color	Black
Dimensions (W×H×D)	108mm x 25mm x 108mm /Jacks Excluded 108mm x 29mm x 116mm /JacksIncluded
Weight	366g
