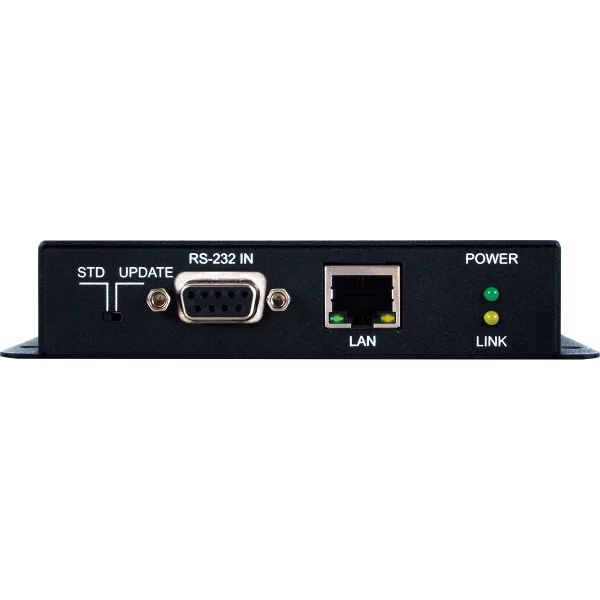

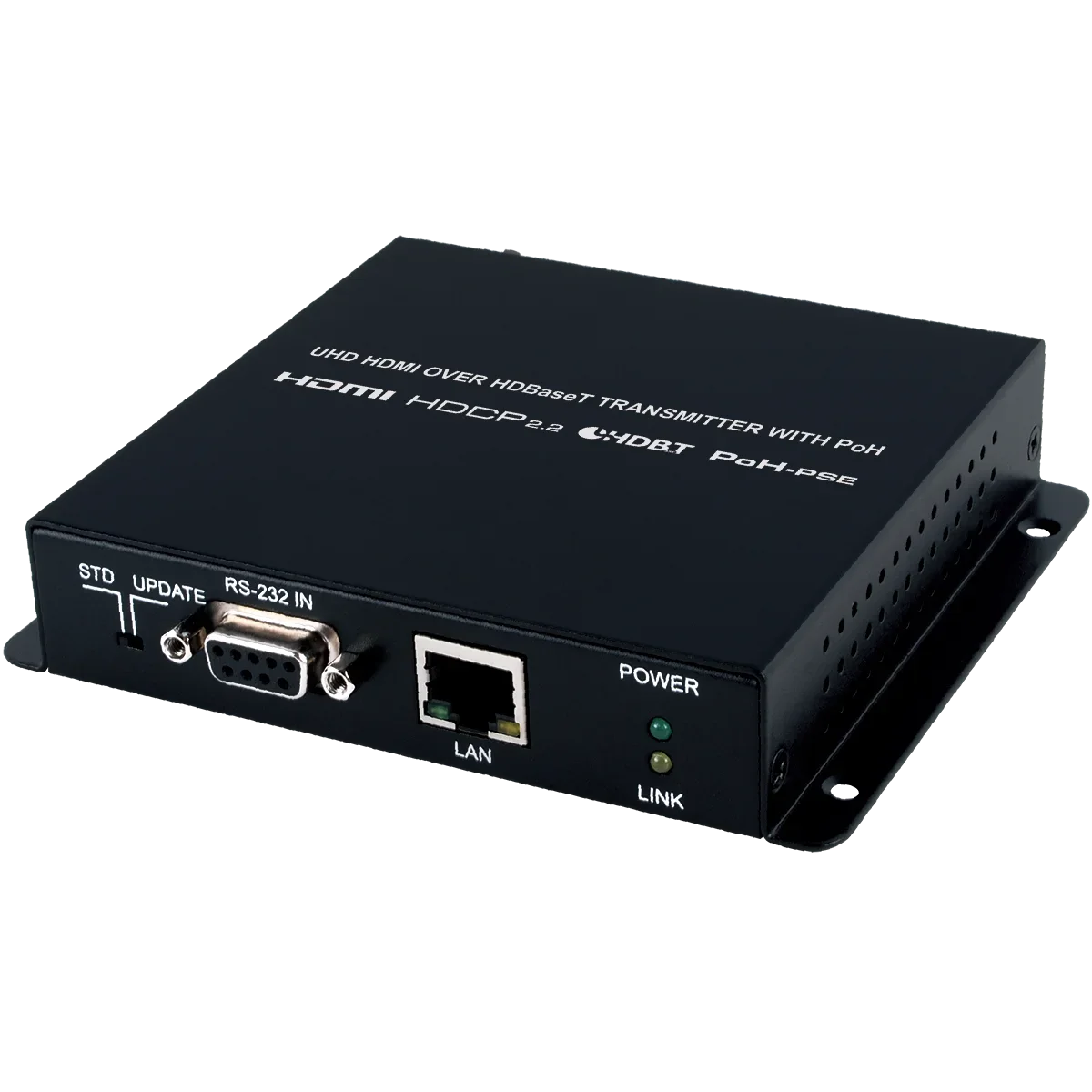

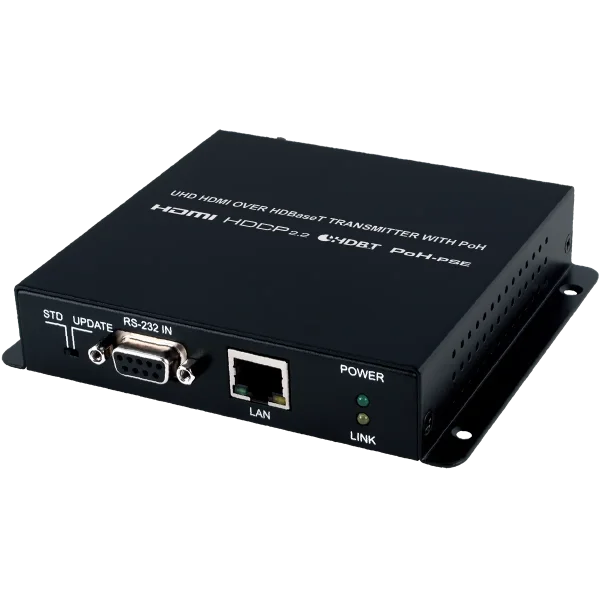

UHD HDMI over HDBaseT Transmitter with PoH (4K@60 420 up to 70M)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI, RS-232 with baud rate up to 115200/sec, Supports wide range of IR frequency from 30~50kHz, HDMI with 3D, 4K2K support, HDMI & DVI Compliant, Supports CEC bypass, Simultaneous transmission of uncompressed data over a single 100m/328ft CAT5e/6/7 cable, 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232), Supports resolution up to 4K2K@50/60 & YUV_420, Supports standard 48V from Transmitter (PSE) to Receiver (PD)
| Hersteller-Nr. | CH-1527TX |
| Hersteller | Cypress Technology |

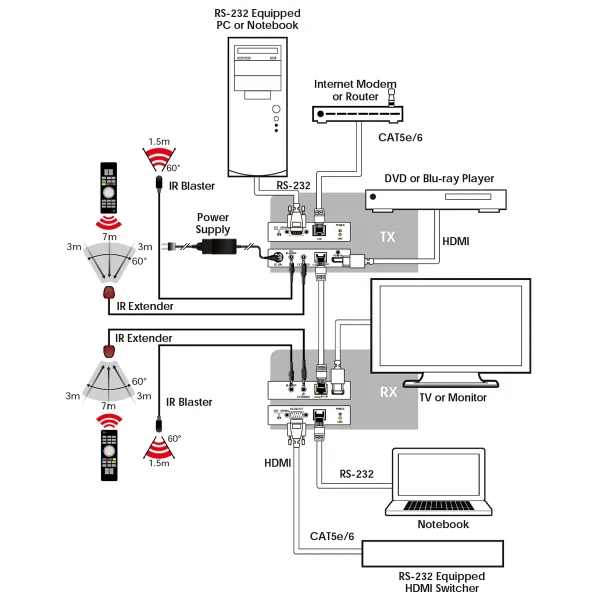

The HDMI over single CAT5e/6/7 Transmitter can send uncompressed audio/ video and IP data over a single run of CAT5e/6/7 cable at a distance up to 100 meter. It has the added benefit of control through the built-in RS-232 and IR ports and a bi-directional LAN serving connection. The Transmitter (PSE) can provide power to the Receiver(PD) allowing a greater flexibility in installations.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input | HDMI |
|
| Maximum Output | HDBaseT6/7 |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update |
|
|---|---|
| Interface |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CH-1527TX |
|
| CH-1527RX |
|
Keine Maßangaben verfügbar.
