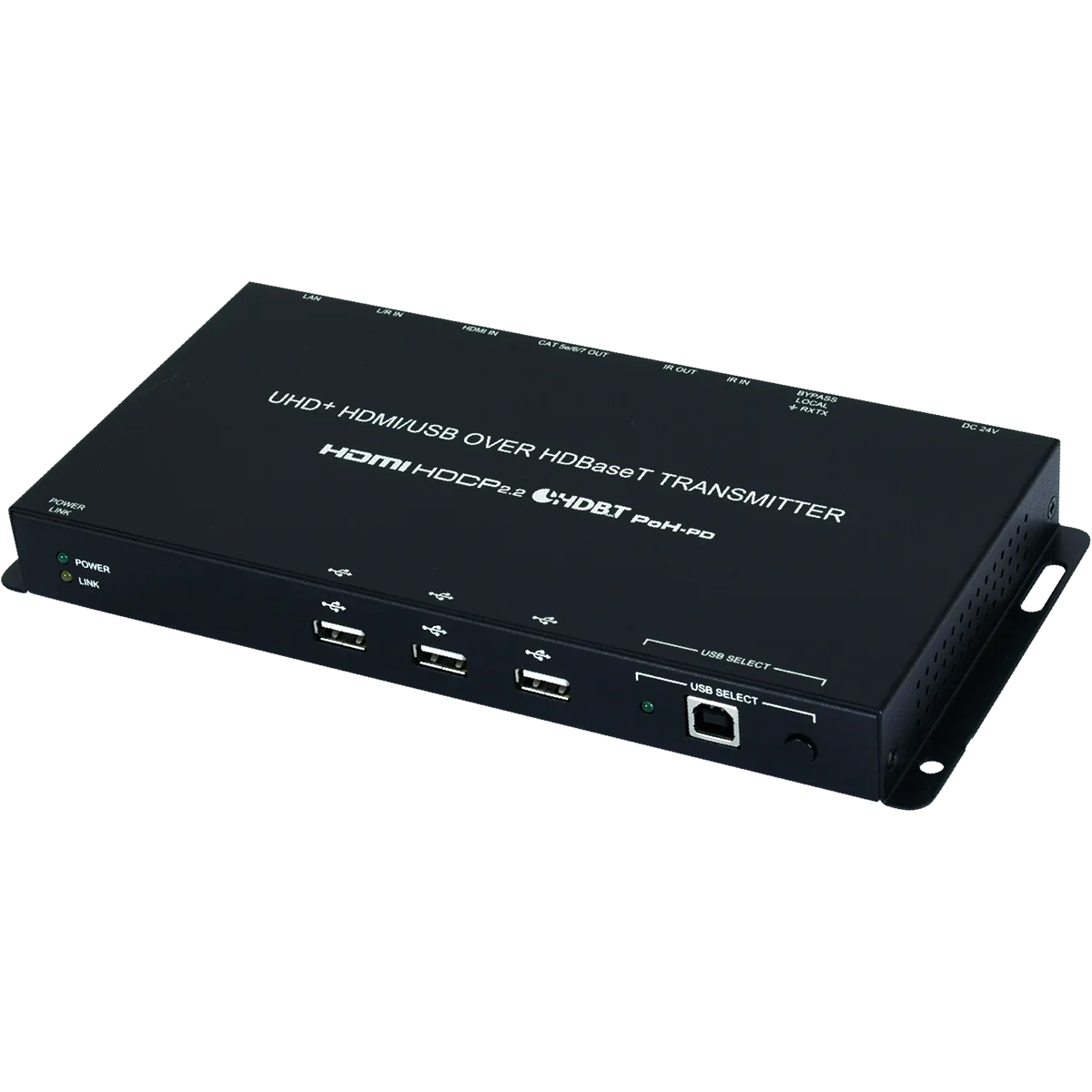

UHD+ HDMI to HDBaseT Transmitter with USB (4K@60 444 up to 100M)
3 USB 2.0 Type A ports and 1 USB 2.0 Type B port, HDBaseT output transmits video, audio, and data over a single Cat.5e/6/7 cable and can reach distances up to 100m/230ft at 4K when using Cat.6a/7, HDBaseT feature support: HD Video and Audio, 100BaseT Ethernet, PoH (PD), and control (bi-directional IR/RS-232/USB 2.0), Supports CEC bypass, Flexible USB host selection using the front panel button, Note: Multiple USB hosts may be connected at once (up to 2 total, between the Tx and a compatible Rx unit) with a single selected host active at a time Supports PoH from Receiver (PSE) to Transmitter (PD) (compatible Transmitters only)
| Hersteller-Nr. | CH-2606TX |
| Hersteller | Cypress Technology |
CH-2606TX adopts HDBaseT 2.0 technology for extending uncompressed 4K and HD video, audio, Ethernet, control and power along a single Cate. 5e/6/7 cable up to 100 meters. When paired with this unit’s standard Receiver, 2 switchable USB 2.0 host (Type B) connections are available (1 on the Transmitter, 1 on the Receiver) which can connect to devices on up to 6 USB 2.0 (Type A) ports (3 on the Transmitter, 3 on the Receiver) forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). This Transmitter (PD) may be powered locally using a standard power supply, or it can be powered by PoH (Power over HDBaseT) provided by a compatible Receiver (PSE), This unit is controllable via front panel button and RS-232.
| Interfaces | |
|---|---|
| Input Port |
|
| Output Port |
|
| Control I/O |
|
| Video | |
|---|---|
| HDMI Compliance |
|
| HDCP Compliance |
|
| Input Signal Types |
|
| Output Signal Type |
|
| Resolutions | ||
|---|---|---|
| Maximum Input |
HDMI |
|
| Maximum Output | HDBaseT |
|
| Audio | |
|---|---|
| Input Signal Types |
|
| HDMI IN |
|
| Power | |
|---|---|
| Power Supply |
|
| Power Consumption |
|
| Enclosure | |
|---|---|
| Chassis Material |
|
| Chassis Color |
|
| Dimensions (W×H×D) |
|
| Weight |
|
| Field Firmware Update | |
|---|---|
| Interfaces |
|
| Ordering Information | |
|---|---|
| Model No. | Product Description |
| CH-2606TX |
|
| CH-2606RX |
|
| CH-2603RX |
|
Keine Maßangaben verfügbar.
