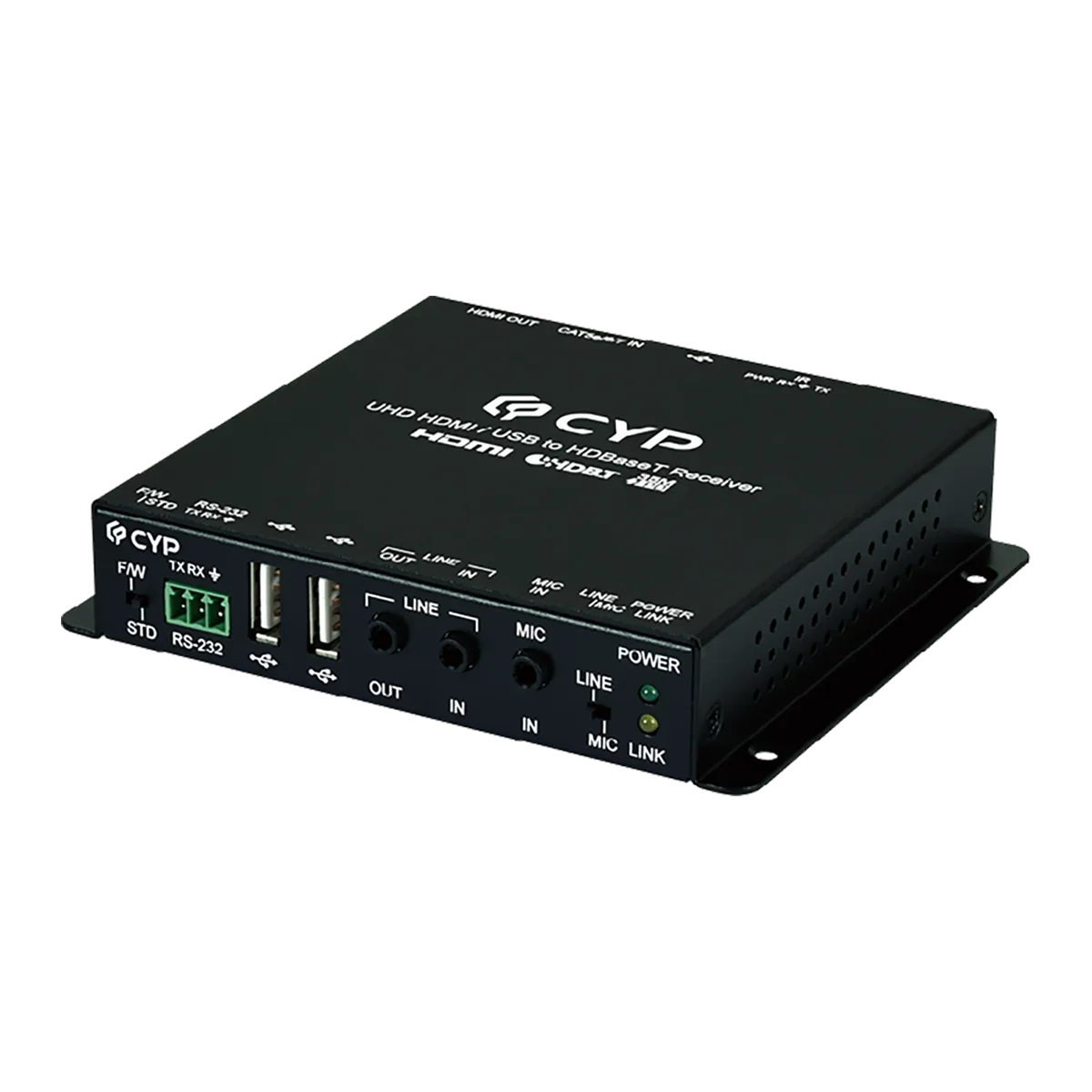

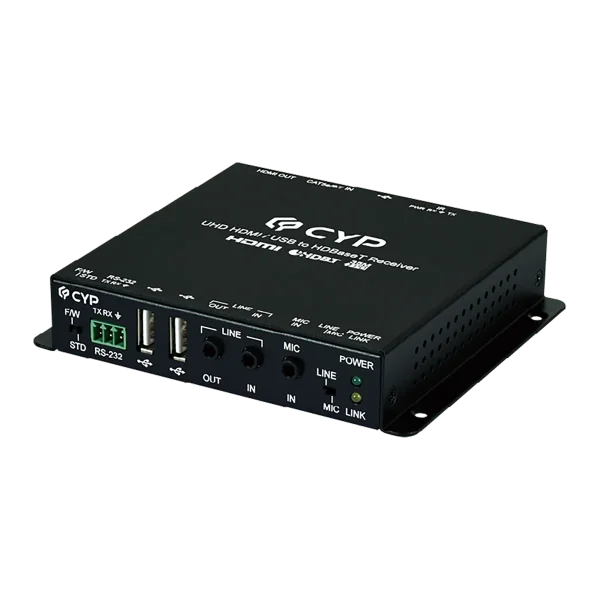

UHD HDMI/USB to HDBaseT Receiver (4K@60 420 up to 35M)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream over HDMI , HDBaseT 2.0 compatible , HDMI 2.0 and DVI 1.0 compatible, HDCP 2.2 and HDCP 1.x compliant , Simultaneous transmission of uncompressed data over a single CAT5e/6/7 cable up to 35m, Supports UHD resolutions up to 3840×2160@60Hz (4:2:0, 8-bit) & 4096×2160@60Hz (4:2:0, 8-bit) , Supports 16-bit Deep Color up to 1080p@60Hz, Supports standard 48V from Transmitter (PSE) to Receiver (PD)
| Hersteller-Nr. | CH-1610RXPL |
| Hersteller | Cypress Technology |
|
Interfaces |
|
|
Input Port |
1x Stereo Audio input 1x Microphone input 1x HDBaseT (RJ-45) |
|
Output Port |
1× HDMI (Type-A) 1x Stereo Audio output |
|
Pass-through Port |
1× IR In/Out (4-pin terminal block) 1x RS-232 (3-pin terminal block) 3x USB 2.0(Type-A) |
|
Video |
|||
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
||
|
HDCP Compliance |
2.2 |
||
|
Input Signal Type |
4K@60, YUV 4:2:0 |
||
|
Output Signal Type |
4K@60, YUV 4:2:0 |
||
|
Resolutions |
|||
|
Maximum Input |
HDMI |
4096x2160p@60 YUV 4:2:0 |
|
|
Maximum Output |
HDBaseT6/7 |
4096x2160p@60 YUV 4:2:0 |
|
|
Audio |
|
|
HDMI Input 1,2 |
LPCM (2 Channels, 48KHz), Bitstream |
|
HDMI Output |
LPCM (2 Channels, 48KHz), Bitstream |
|
Power |
|
|
Power Consumption |
TBD |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
128mm×25mm×108mm [Case Only] 128mm×25mm×111mm [All Inclusive] |
|
Weight |
392g |
|
Field Firmware Update |
|
|
UART |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
CH-1610TXPL |
UHD HDMI/USB to HDBaseT Transmitter |
|
CH-1610RXPL |
UHD HDMI/USB to HDBaseT Receiver |
|
MED-VPR-8430 |
Multi-viewer with Streaming Solution and Stand-alone PC-based System for Video Capturing |
