UHD+ Multi-Format to HDBaseT Switcher
Klicken zum Vergrößern
Cypress Technology

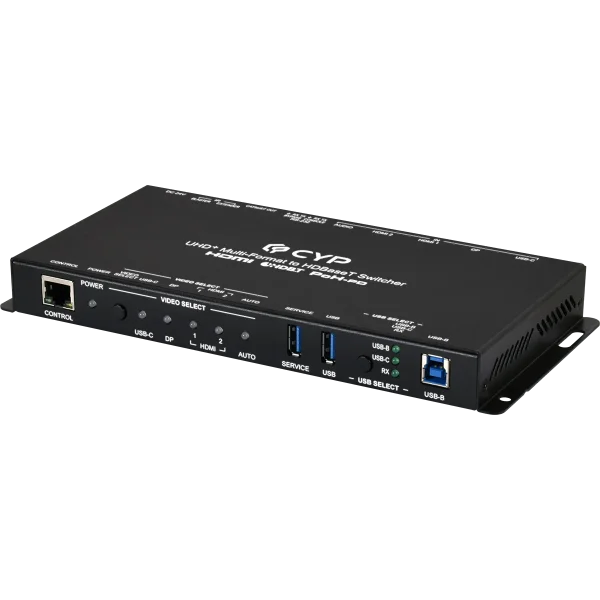

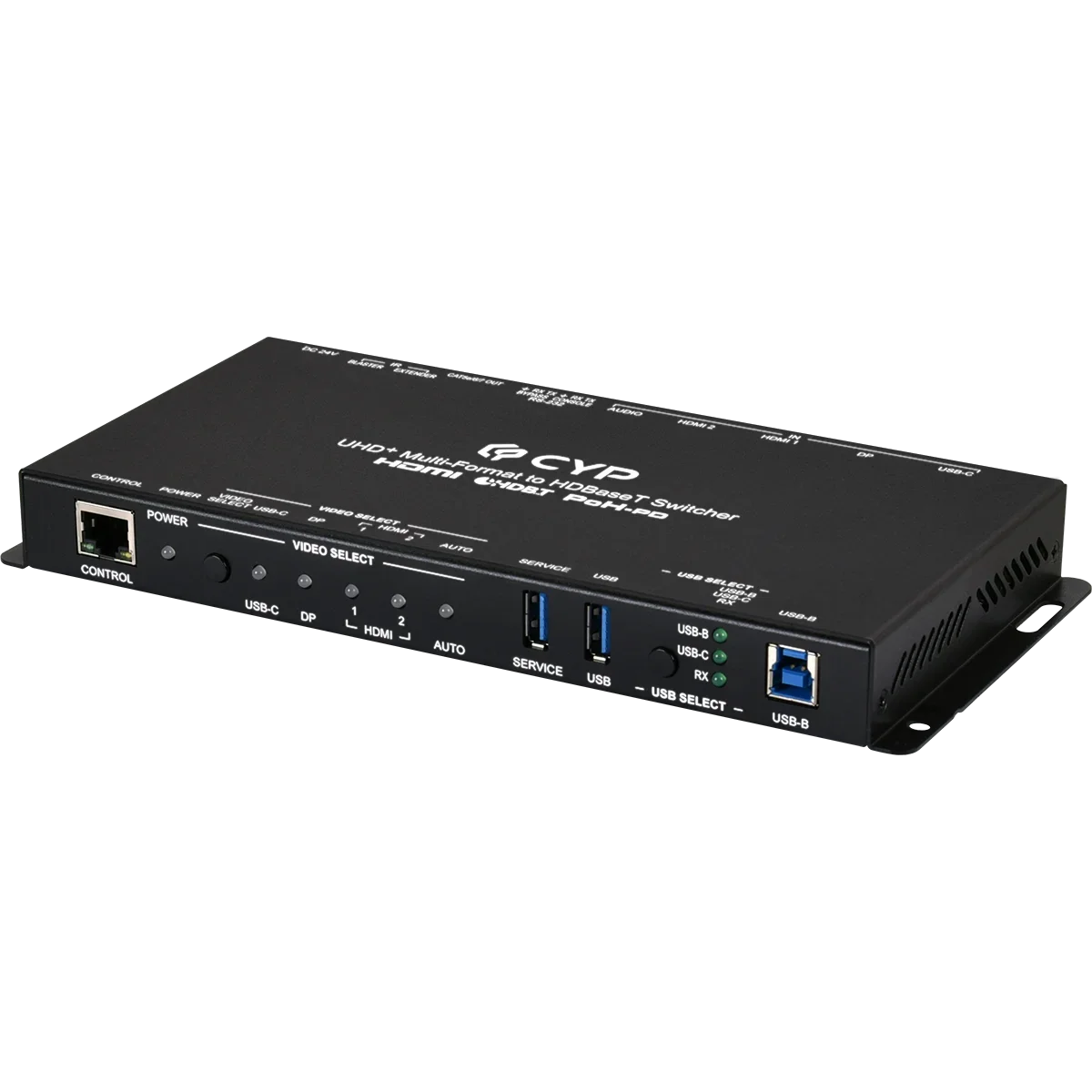

UHD+ Multi-Format to HDBaseT Switcher

• HDBaseT output supports resolutions up to 4K@60Hz (4:2:0, 8-bit) with automatic down conversion to 1080p for any sources that exceed HDBaseT’s bandwidth limitations, such as 4K@60Hz (4:4:4, 8-bit) or 4K@any (10/12-bit) sources • Supported HDBaseT feature set: HD Video & Audio, PoH (PD), and Control Extension (Bi-directional IR/RS-232/USB) • Analog audio may be embedded with all sources • USB Type-C input can provide power (up to 60W) to any connected device (only available when the unit is powered locally) • Supports manual input selection or automatic input selection with hot plug detection • Basic signal event automation (via RS-232 or CEC) • Supports optionally being powered via PoH from a compatible HDBaseT receiver • Controllable via front panel button, WebGUI, Telnet, or RS-232

Hersteller-Nr.CH-2608TX
HerstellerCypress Technology

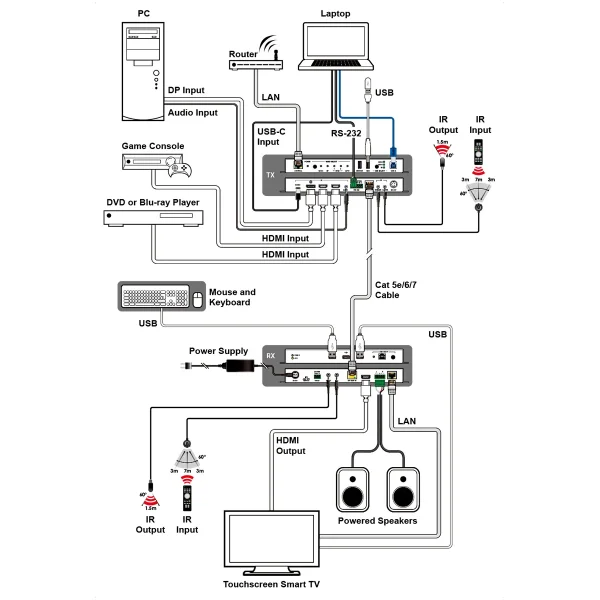

This UHD+ Multi Format to HDBaseT Switch is an HDMI, DisplayPort, and USB-C switch with audio embedding and HDBaseT output. This unit can send high definition uncompressed audio/video along with Ethernet, USB, IR, and RS- 232 over a single Cat.6A cable up to a distance of 100 meters. When paired with this unit’s standard receiver, a total of 3 selectable USB host (Type-B/C) connections are available which provide access to 5 USB device (Type-A) ports forming a highly flexible KVM extension configuration (Note: Only 1 USB host may be active at a time). Additionally, the USB Type-C input can provide power (up to 60W) to any connected device (only available when the unit is powered locally). All USB ports on the transmitter support up to USB 3.0 data transfer speeds.The unit can be powered locally with a 24V power supply, or remotely via PoH (Power over HDBaseT) from a compatible HDBaseT receiver, which allows for greater flexibility in installations.
Interfaces
Input Port
  • 2 HDMI
  • 1 USB 3.0 (Type-C)
  • 1 DisplayPort
  • 1 Analog Stereo (3.5mm)
Output Port
  • 1 HDBaseT (RJ-45)
Pass-through Port
  • 1 IR Out (3.5mm)
  • 1 IR In (3.5mm)
  • 1 USB 3.0 (Type B)
  • 1 USB 3.0 (Type A)
  • 1 RS-232 (3-pin Terminal Block)
Control I/O
  • 1 RS-232 (3-pin Terminal Block)
Pass-through/Control Port
  • 1 LAN (RJ-45)
Pass-through/Service Port
  • 1 USB 3.0 (Type-A)
Video
HDMI Compliance
  • HDMI 2.0 (DVI 1.0)
HDCP Compliance
  • 2.2
Input Signal Types
  • 4K@60 YUV 4:4:4
Output Signal Type
  • 4K@60 YUV 4:2:0
Resolutions
Maximum Intput HDMI
  • 4096x2160p@60 YUV 4:4:4
  USB-C
  • 4096x2160p@60 YUV 4:4:4
  DP
  • 4096x2160p@60 YUV 4:4:4
 Maximum Output HDBaseT
  • 4096×2160p@60 YUV 4:2:0
Audio
HDMI
  • LPCM (8 Channels)
 Line In
  • 2 Vrms
Power
Power Supply
  • PoH or 24V/3.75A DC (Locking)
Power Consumption
  • 45W (When not providing USB-C power)
  • 106W (When providing USB-C power)
Enclosure
Chassis Material
  • Metal (Steel)
Chassis Color
  • Black
Dimensions (W×H×D)
  • 213.5mm×25mm×108mm [Case Only]
  • 213.5mm×25mm×116mm [All Inclusive]
Weight
  • 671g
Field Firmware Update
USB Flash Drive, WebGUI


Ordering Information
Model No. Product Description
CH-2608TX
  • UHD+ Multi-Format to HDBaseT Switcher
CH-2606RX
  • UHD+ HDBaseT to HDMI Receiver with USB
CH-2603RX
  • HDMI/HDBaseT/USB to HDMI Receiver

Keine Maßangaben verfügbar.

Verkaufspreis (Netto)
Auf Anfrage
zzgl. 10,00 € Versand • ab 500 € versandkostenfrei
Auf Bestellung
Lieferzeit: ca. 30 Tage
