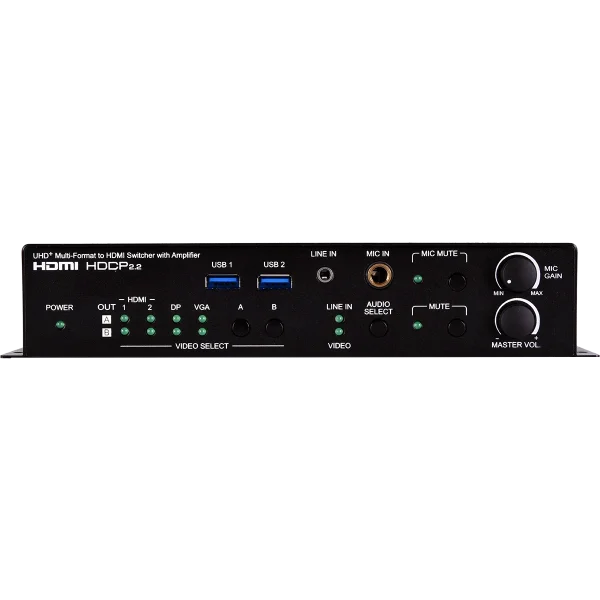

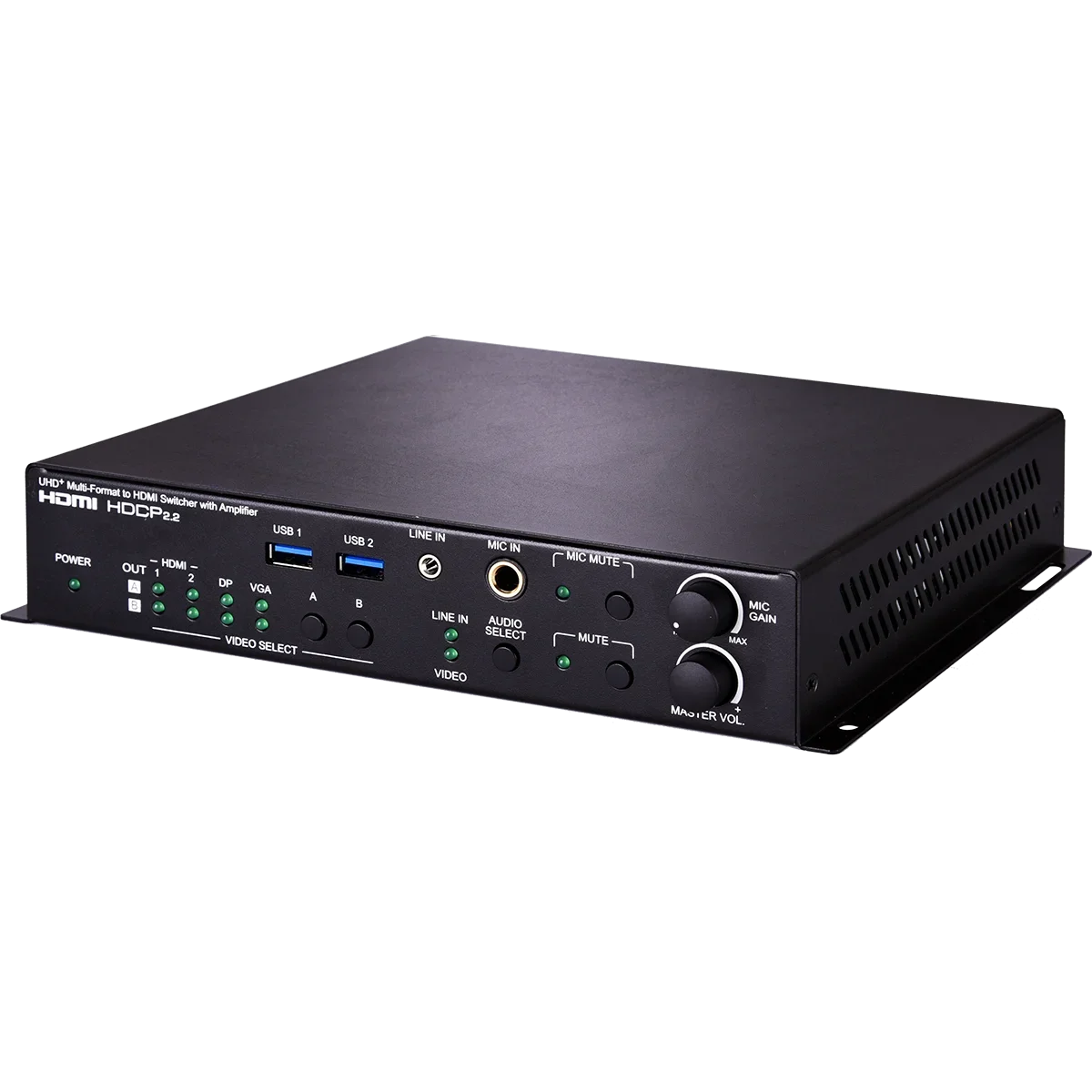

UHD+ Multi-Format to HDMI Switcher with Amplifier

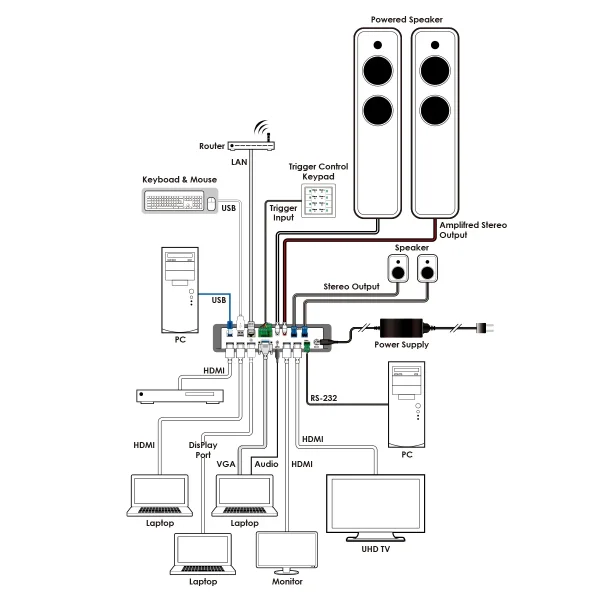

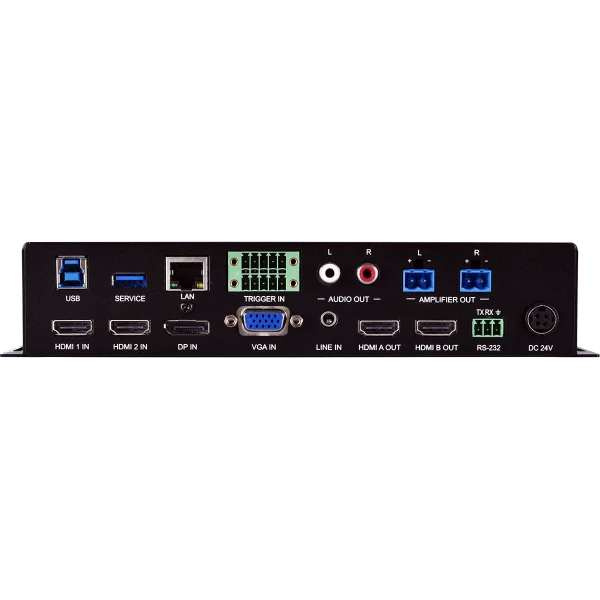

This 4 by 2 matrix switcher features HDMI, VGA, and DisplayPort inputs, plus HDMI outputs. The CPLUS-V2030 is HDCP 2.2 compliant and supports up to a maximum of 4K@60Hz (4:4:4, 8-bit) for HDMI and Display port inputs. The included microphone input, with optional 48V/0V phantom power support and automatic ducking, feeds directly into a DSP mixer, allowing for powerful presentations with live voice-overs or even an impromptu karaoke session. This switcher supports USB3.0 with one host (Type B) PC, plus three peripheral devices (Type-A) for a multisource, bidirectional, and highly flexible KVM configuration (Note: Only 1 USB host may be active at a time). Moreover, it also provides an interface for a remote control keypad or trigger interface, which can be easily installed within a podium or table. CDPS-Trigger Control Keypad is suitable for this application. This matrix switcher is ideal for use in meeting rooms and classrooms with dual displays, auditoriums and lecture halls which need comprehensive audio integration features as well as video conferencing that requires USB data.
