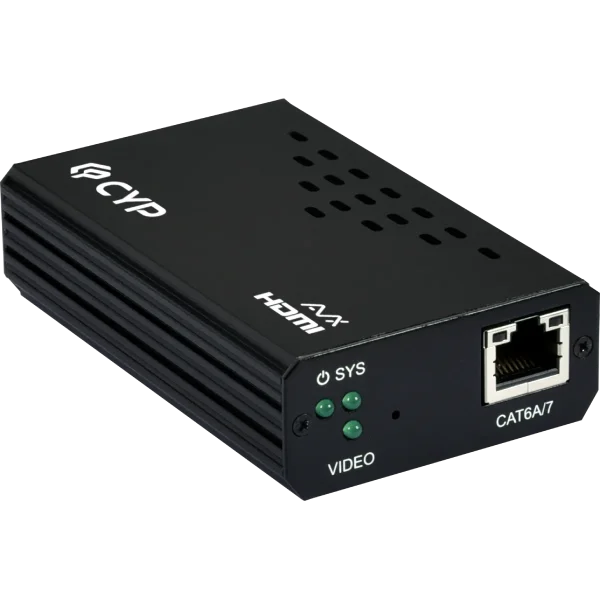

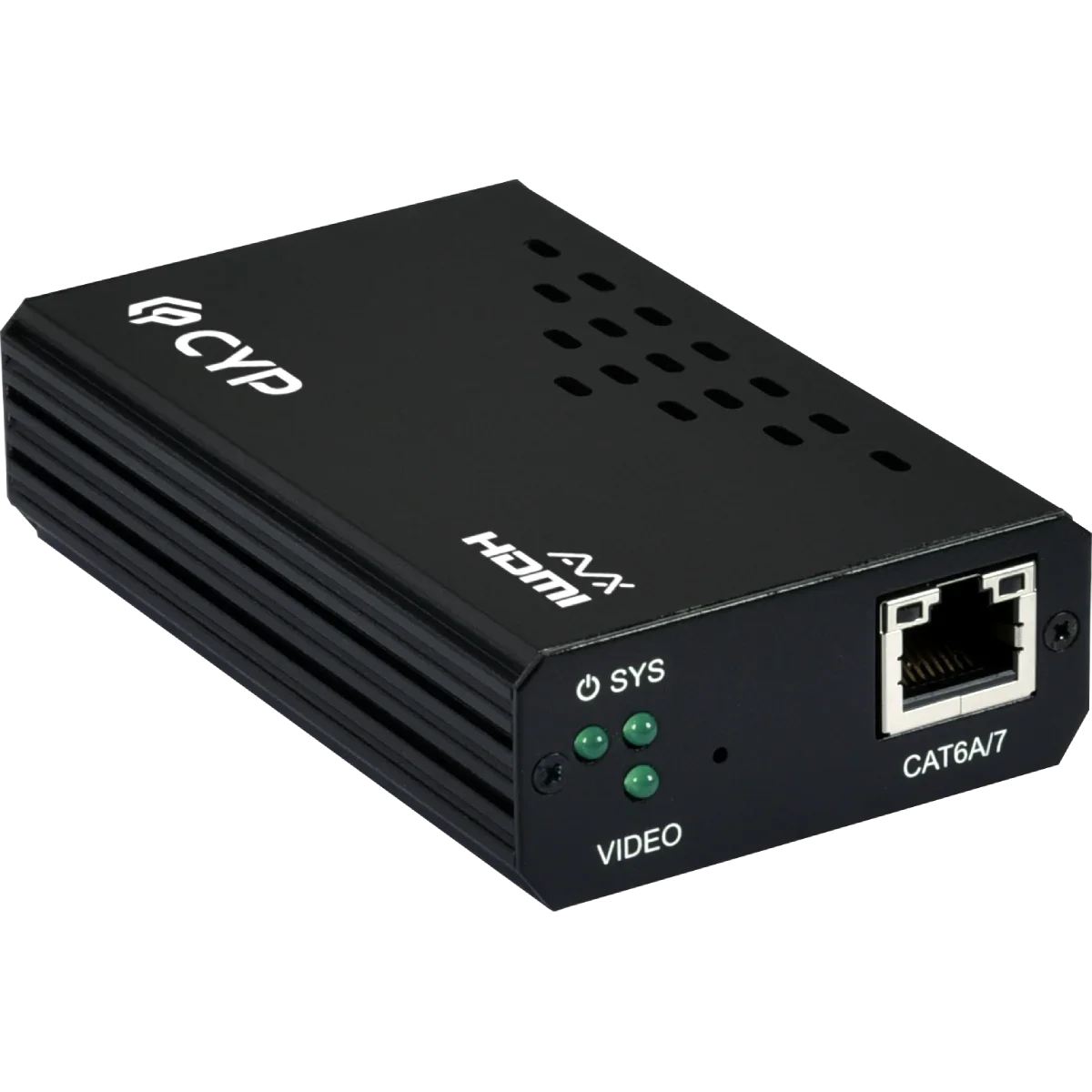

UHD+ USB-C AV over IP Extender (4K@60 444 up to 100M)
Point to point extension of audio, video and control signals , Full range of formats including 4K60 RGB/4:4:4, HDR10, 3D and broadcast-friendly 4K60 10-bit 4:2:2 , Broadcast quality scaler, programmable to scale up or down any resolutions up to 4K , Extension up to 100m from Cat6A/7 cable , Supports pass-through of 10/12-bit HDR sources
| Hersteller-Nr. | VEX-X1502T-B0C |
| Hersteller | Cypress Technology |
The end to end Extenders are designed for high-quality, AV extension with
minimum latency through 10 Gigabit IP transmit over category cable. Small
and compact size of Transmitter and Receiver design, enhancing the flexibility
of any installation. With ultra-light compression scheme (lossless for most
content) to extending 4K audio/video streams and data under 0.1 milliseconds
of matrix switch-like end to end transit. Supports up to 3840x2160@60Hz
pass-through including multichannel PCM, Dolby True HD and DTS HD master
audio.
|
Interfaces |
|
|
Input Port |

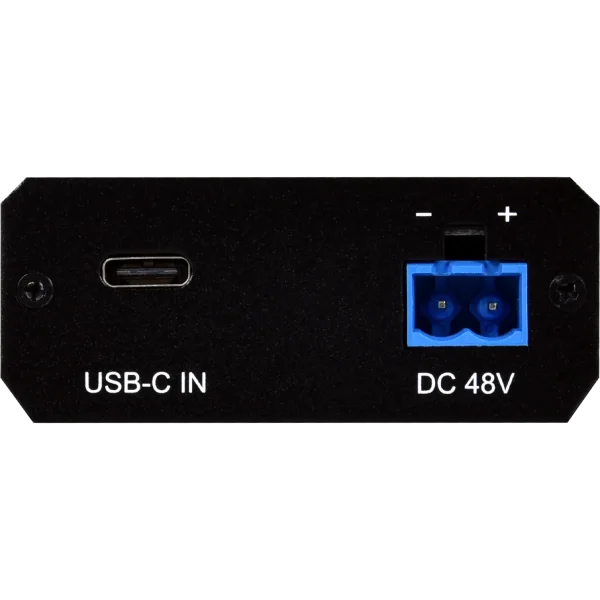

1 USB (Type C) |
|
Output Port |

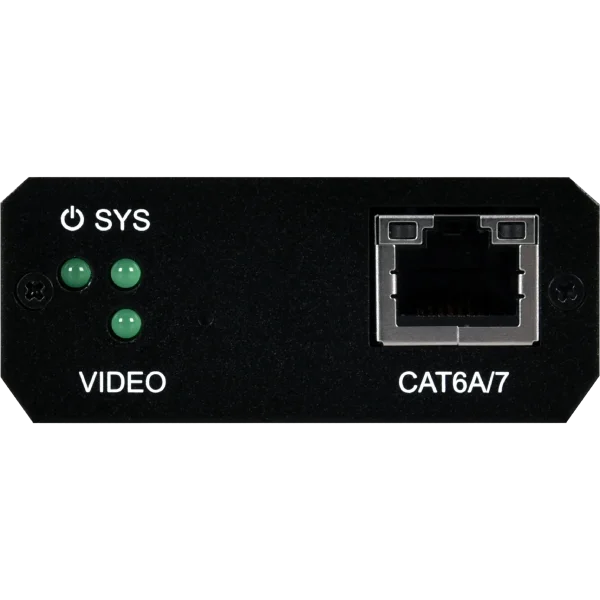

1 10GbE LAN (RJ45) |
|
Video |
||
|
HDMI Compliance |
HDMI 2.0 (DVI 1.0) |
|
|
HDCP Compliance |
2.x |
|
|
Input Signal Type |
4K@60 YUV 4:4:4 |
|
|
Output Signal Type |
4K@60 YUV 4:4:4 |
|
|
Resolutions |
||
|
Maximum Input |
USB-C |
3840×2160p@60 YUV 4:4:4 |
|
Maximum Output |
LAN (Streaming) |
3840×2160p@60 YUV 4:4:4 |
|
Audio |
|
|
HDMI |
LPCM (8 Channels), Bitstream, High Bit Rate Bitstream |
|
Power |
|
|
Power Supply |
48V/0.83A DC (Locking) |
|
Power Consumption |
8W |
|
Enclosure |
|
|
Chassis Material |
Metal (Steel) |
|
Chassis Color |
Black |
|
Dimensions (W×H×D) |
57mm×20.6mm×87mm [Case Only] 60mm×20.6mm×87mm [All Inclusive] |
|
Weight |
177g |
|
Field Firmware Update |
|
|
PC |
|
ORDERING INFORMATION |
|
|
Model No. |
Product Description |
|
VEX-X1502T-B0C |
UHD+ USB-C AV over IP Extender |
|
VEX-X1501R-B0C |
UHD+ HDMI AV over IP Extender |
Keine Maßangaben verfügbar.
