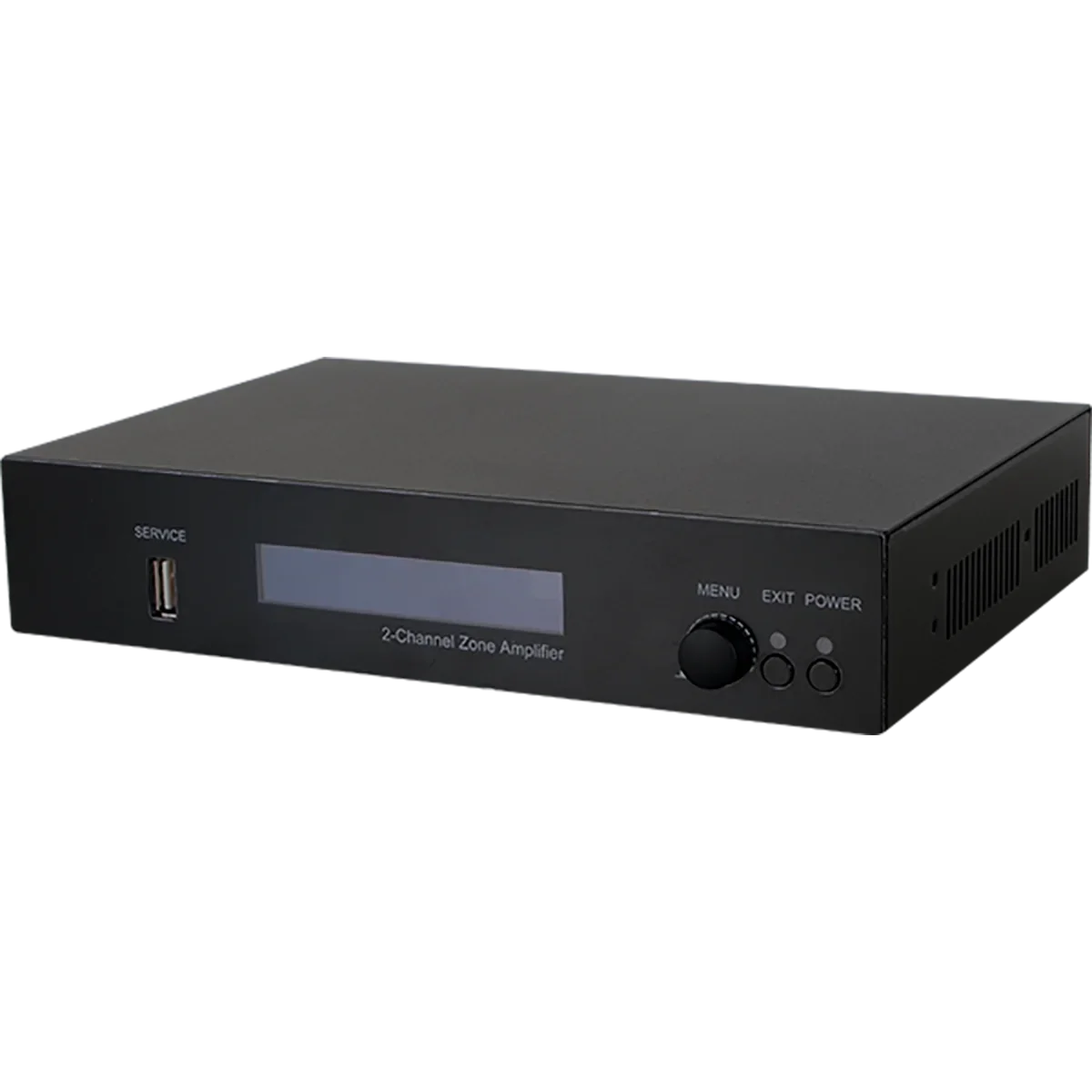

2-Channel Zone Amplifier
Supports Digital to Analog audio Conversion (DAC) and Analog to, Digital audio Conversion(ADC), Supports input sampling rate up to 96kHz and output at 48kHz, Supports 2 Passive speaker with 4Ω ~ 8Ω each, Speaker each output channel supports 45W/4Ω, Hi-Efficient 2 x 45W class D amplify > 80% efficient, Synchronous output sound on both digital and analog, Supports distances up to 300 meters through CAT5e/6/7 cables, Supports RS-232, IR remote and on-panel controls, Sound supports up to -80dB with volume up moderation at power ON
| Hersteller-Nr. | DCT-23A |
| Hersteller | Cypress Technology |
|
Input ports |

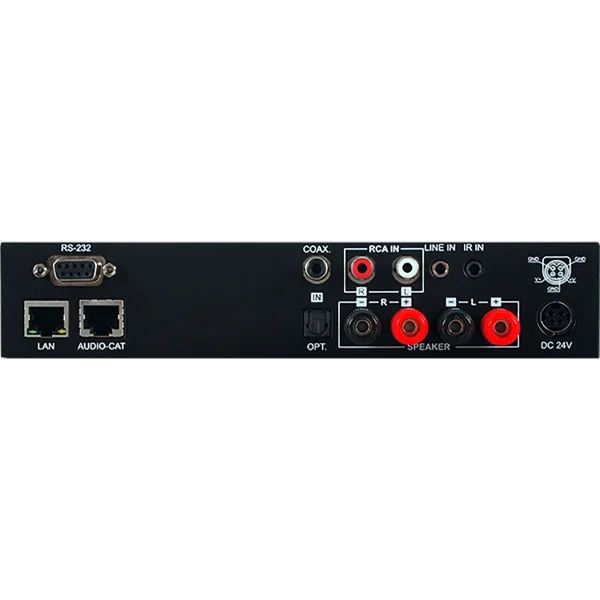

1 x Optical, 1 x Coaxial, 1 x 3.5Ø Line in, 1 x R/L RCA, 1 x D-Sub 9pin (RS-232), 1 x RJ-45 (LAN), 1 x Service, 1 x IR, 1 x AUDIO-CAT |
|
Output ports |
1 x Power Rated Output Amplifer L/R |
|
Digital Audio |
LPCM 2CH |
|
Audio Sampling Rate |
Up to 96kHz |
|
Stereo Input/Output Level |
2 Vrms ± 0.2 |
|
ESD Protection |
Human body model: ±8kV (air-gap discharge) |
|
Power Supply |
24V/ 2.7A DC (US/EU standards, CE/ FCC/UL certified) |
|
Dimensions |
215mm(W) x 144mm(D) x 42mm(H)/ Jacks Excluded 215mm(W) x 174mm(D) x 47mm(H)/ Jacks Included |
|
Weight |
1060 g |
|
Chassis Material |
Aluminum |
|
Silkscreen Color |
Black |
|
Operating Temperature |
Operating from 0°C ~ 40°C |
|
Storage Temperature |
-20˚C ~ 60˚C / -4 ˚F ~ 140 ˚F |
|
Relative Humidity |
20 ~ 90% RH (non-condensing) |
|
Power Consumption |
52W |
Keine Maßangaben verfügbar.
